Industrial Metal L-Shaped Heaters - 9000W, 480V
Industrial Metal L-Shaped Heaters - 9000W, 480V
SKU:HEA-9c66e6
High-performance Metal L-Shaped Heaters for industrial use, featuring 9000W power and 480V voltage. Built for durability in challenging environments.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Industrial Metal L-Shaped Heaters - 9000W, 480V
$799.99
Quantity: 1
Claim Your Seller Account
Industrial Metal L-Shaped Heaters - 9000W, 480V
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The L Series Metal L-Shaped Heaters by Process Technology offer exceptional performance and durability for industrial heating applications. Constructed from high-quality 304 stainless steel, these heaters are designed to withstand harsh chemical environments and high temperatures. With watt densities of 35 watts per square inch, they ensure a long service life. The heaters feature a corrosion-resistant head with a vapor-resistant terminal enclosure for added safety. Certified to cULus and CE standards, these heaters come with various thermal protector options to suit different temperature requirements, making them ideal for aqueous alkaline solutions, plating tanks, and more.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, titanium.OUTSTANDING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES: Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,000 watts to 12,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory): Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.

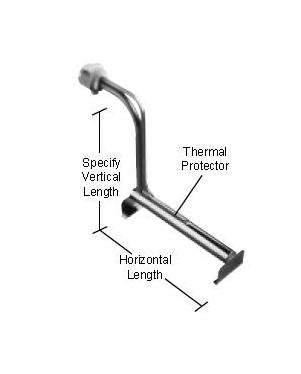

Specifications Horizontal Length
50 " | 1270 mm
Specifications Manufacturer
Process Technology
Specifications Material
304 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
20.0 Pound
Specifications Vertical Length
50 in | 1270 mm
Specifications Volts
480 V
Specifications Watts
9000 W
Specifications Weight
20.0 lbs | 9.1 kg
