Industrial Power Control Transformers
Industrial Power Control Transformers
SKU:POW-a602b5
Enhance control in industrial applications with these versatile Power Transformers from Triad. Efficient and reliable power distribution guaranteed.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Industrial Power Control Transformers
$99.99
Quantity: 1
Claim Your Seller Account
Industrial Power Control Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

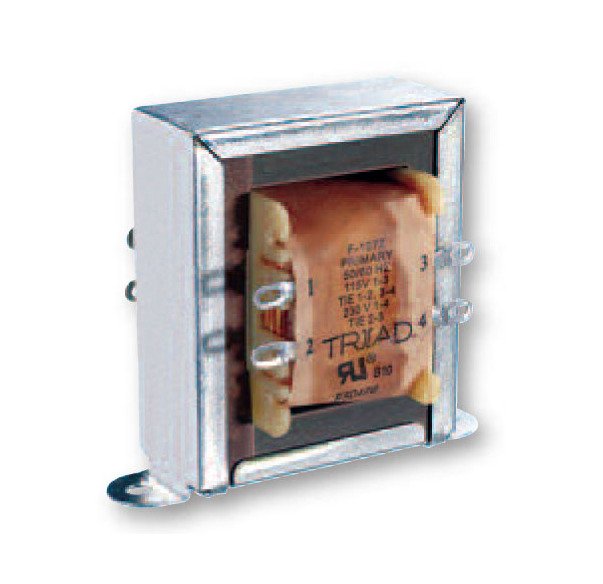

The Industrial Power Control Transformers from Triad are engineered to supply precise secondary voltages essential for a range of electronic and electrical control applications. These transformers are designed to seamlessly integrate with relays, solenoids, motors, pumps, valves, and more, ensuring reliable and efficient power distribution. With primary AC voltages of 115V and 230V, multiple secondary voltage options, and a robust construction, these transformers deliver unparalleled performance in diverse industrial settings.
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
Z
Specifications Connections
Lugs

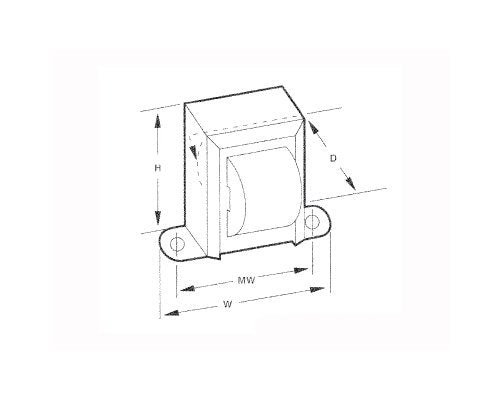

Specifications Depth D
2 in
Specifications Electrical Rating
24 V·A
Specifications Height H
2 3/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
6.0 V at 4.0 A
Specifications Secondary Voltage In Series Ac
12.0 V at 2.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.50 lb
Specifications Width W
3 1/8 in
Technical Notes Technical Notes

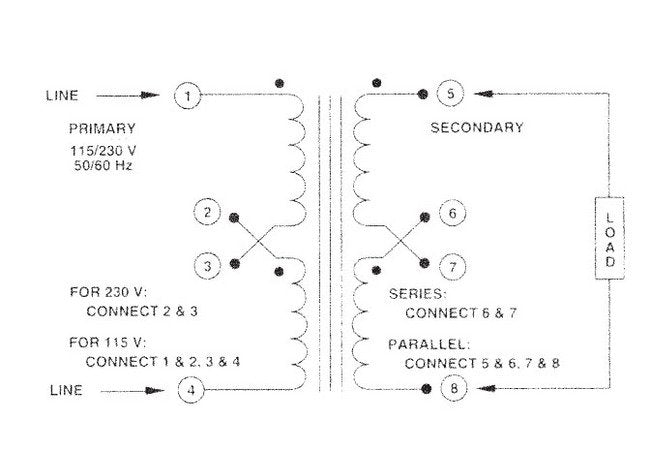

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
