Industrial Reversible Boom Cranes
Industrial Reversible Boom Cranes
SKU:REV-bd2cc2
Efficiently lift up to 10 tons with Industrial Reversible Boom Cranes featuring telescopic boom, powered options, and exceptional maneuverability.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Industrial Reversible Boom Cranes
$3,499.99
Quantity: 1
Claim Your Seller Account
Industrial Reversible Boom Cranes
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

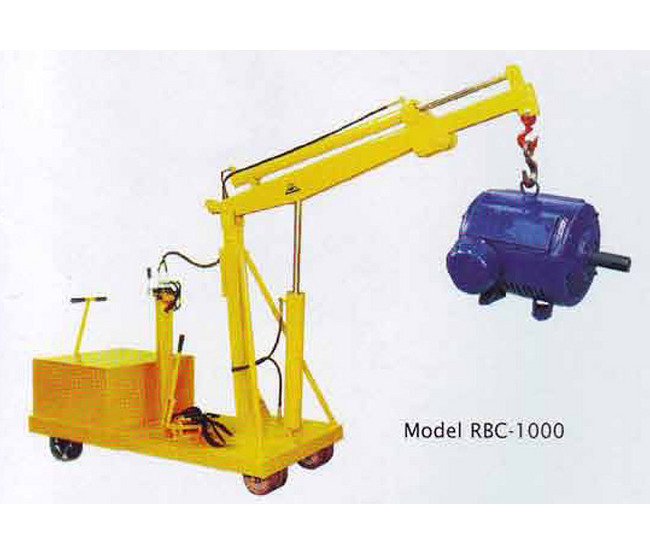

The Industrial Reversible Boom Cranes are designed for heavy lifting up to 10 tons, featuring a telescopic boom with a manual hydraulic lifting cylinder. With options for powered lifting cylinders and self-propelled models for enhanced mobility, these cranes offer a maximum lift height of 144 inches and a reach of up to 82 inches beyond the wheels when extended. Maneuver with ease using the 180-degree steering capability. Ideal for confined spaces, these cranes are ruggedly built for long-lasting performance, making them a versatile and efficient solution for industrial applications.
Product Specifications
General Description General Description
Telescopic boom provides added versatility!Manual hydraulic lifting cylinder is standard. Optional powered lifting cylinder available in electric, either battery (battery not included except on self-propelled models) or 110 volt A/C.Self-propelled available for maximum mobility and versatility on regular-duty models. Standard on heavy-duty models (10,000 lb. capacities & up).Clear reach for heavy jobs. Up to an astounding 82" boom reach beyond its wheels when extended.180º steering for incredible maneuverability! Built at only 34" inches wide for ease of passage through narrow doorways & aisles.Rugged design for long lifeRoller bearing wheels for easy movement and positioningReady to configure your own? Give us a call!Now available up to 100,000 pounds capacity!!
Note Note
A counterweight box is supplied with the RBC, but counterweights are not included, except for self-propelled units.Only RBC-3000 and under are available manually propelled.

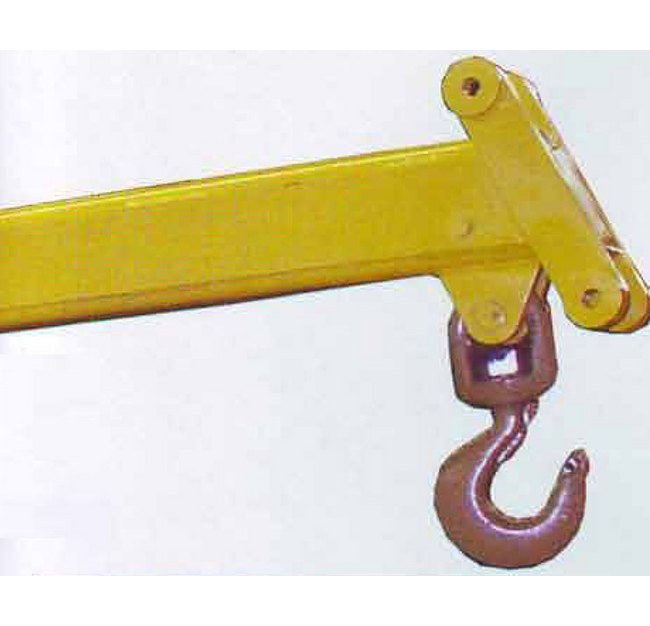

Optional Gooseneck Gooseneck Steering Angle
180 º
Optional Gooseneck Name
Gooseneck Boom Extension
Optional Gooseneck Optional Gooseneck Item
RBC-GN

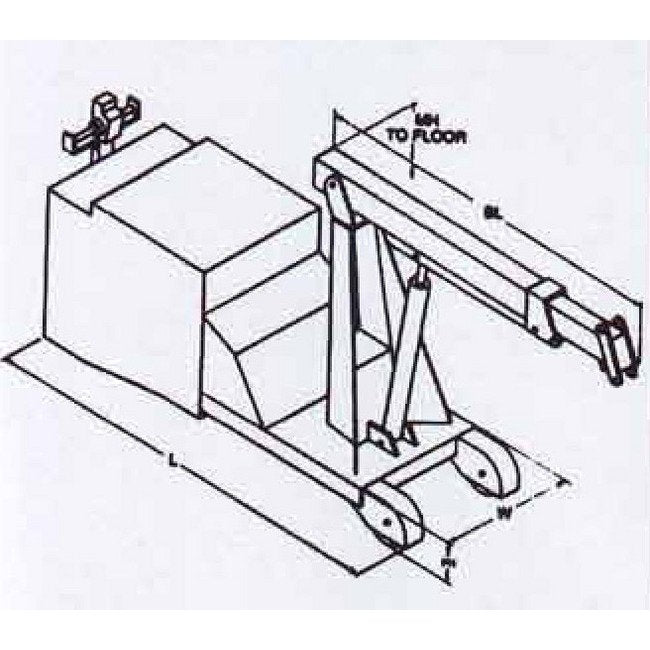

Specifications Boom Length Fully Adjustable Form
54 to 96 in
Specifications Capacity With Boom Extended
1000 lb
Specifications Capacity With Boom Retracted
2000 lb
Specifications Casters Rigid
8 x 2.5 in
Specifications Casters Swivel
6 x 2.5 in
Specifications Counterweight Not Included
1700 lb
Specifications Floor To Hook Height Boom Extended
18 in
Specifications Floor To Hook Height Boom Retracted
36 in

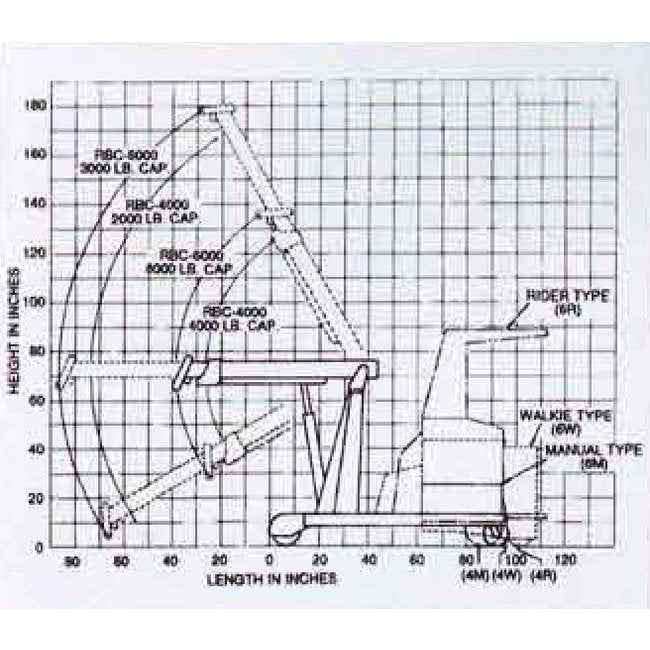

Specifications Maximum Lift Height With Boom Retracted
102 in
Specifications Maximum Lift Height With Extension Boom
144 in
Specifications Maximum Reach Beyond Wheels
82 in
Specifications Overall Length
68 in
Specifications Overall Length Walkie Type
85 in
Specifications Overall Mast Height
64 in
Specifications Shipping Weight
800 lb
Specifications Steering Angle
180 º
