Industrial Single Flange CB Elements
Industrial Single Flange CB Elements
SKU:CLU-c23d99
High-performance Industrial Single Flange CB Elements for reliable operation in crucial applications.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Industrial Single Flange CB Elements
$549.99
Quantity: 1
Claim Your Seller Account
Industrial Single Flange CB Elements
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

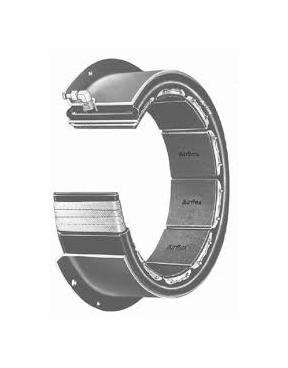

The Industrial Single Flange CB Elements are designed for high-performance applications, featuring a Torque Rating of 8150 lb·in, Maximum Speed of 1800 rpm, and a Friction Area of 91 in². With a sturdy build and precise engineering, these elements ensure reliable operation and minimal maintenance. Compliant with federal procurement standards and offering exceptional durability, these elements are ideal for industrial and government applications requiring robust clutch and brake components.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified. For example 142197JA, 142197JB, 142197JC, 142197JG
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
50 in³ | 0.82 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.38 in | 10 mm
Specifications Centrifugal Loss Constant Cs
0.69 E-06 bar/rpm2 | 10.0 E-06 psi/rpm2

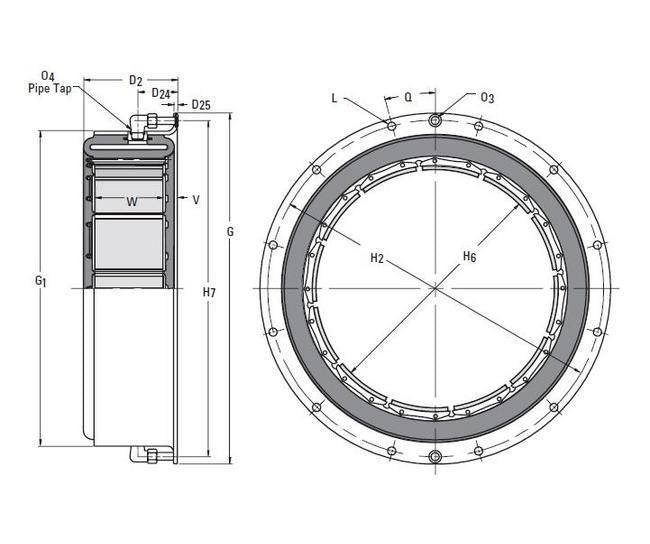

Specifications Dimension D2
4.13 in | 105 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
15.373 in | 390.5 mm
Specifications Dimension G1
13.63 in | 346 mm
Specifications Dimension H2
14.625 in | 371.5 mm
Specifications Dimension H6
10.13 in | 257 mm
Specifications Dimension H7
14.63 in | 371 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
91 in² | 587 cm²
Specifications Friction Shoe Width W
3.00 in | 76 mm
Specifications Inertia
6.0 lb·ft² | 0.25 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
9.90 in | 251 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
10
Specifications Number Of Mounting Holes
12
Specifications Size
10CB300
Specifications Torque Rating 75 Psi55 Bar
8150 lb·in | 921 Nm
Specifications Weight
19 lb | 8.6 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
