Industrial Single Flange CB Elements - 40CB525
Industrial Single Flange CB Elements - 40CB525
SKU:CLU-f76818
Achieve unmatched torque and reliability with the Industrial Single Flange CB Elements - 40CB525. Compliant with top procurement standards.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Industrial Single Flange CB Elements - 40CB525
$1,999.99
Quantity: 1
Claim Your Seller Account
Industrial Single Flange CB Elements - 40CB525
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior torque of 211000 lb·in with the Industrial Single Flange CB Elements - 40CB525. Operating at a maximum speed of 750 rpm, these elements ensure precision in heavy-duty applications. With a friction area of 610 in² and a robust weight of 201 lb, these elements guarantee reliability under intense operational conditions. Compliant with Federal/DoD procurement standards and industry-specific certifications, these elements are the top choice for institutional buyers seeking durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/4-14
Specifications Air Tube Cavity
380 in³ | 6.23 dm³
Specifications Angle Q
9.000 º
Specifications Bolt Hole Size L
0.750 in | 19 mm
Specifications Centrifugal Loss Constant Cs
3.59 E-06 bar/rpm2 | 52 E-06 psi/rpm2

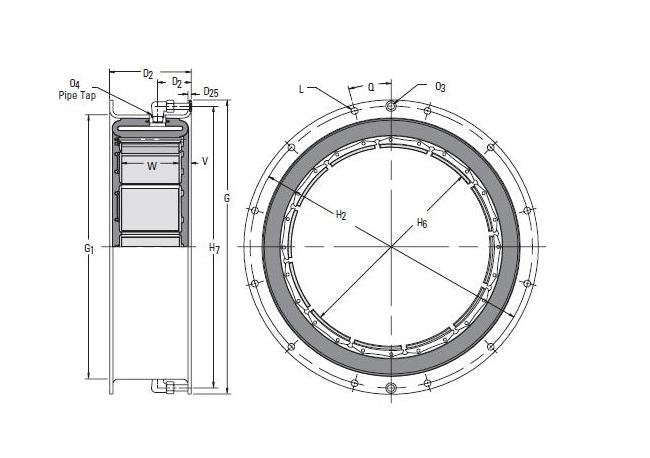

Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.75 in | 70 mm
Specifications Dimension D25
0.28 in | 7 mm
Specifications Dimension G
48.625 in | 1235.1 mm
Specifications Dimension G1
45.56 in | 1157 mm
Specifications Dimension H2
47.125 in | 1197 mm
Specifications Dimension H6
40.19 in | 1021 mm
Specifications Dimension H7
47.25 in | 1200 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
610 in² | 3935 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
730 lb·ft² | 30.66 kg·m²
Specifications Maximum Speed
750 rpm
Specifications Minimum Drum Diameter
39.81 in | 1011 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
24
Specifications Number Of Mounting Holes
20
Specifications Size
40CB525
Specifications Torque Rating 75 Psi55 Bar
211000 lb·in | 23800 Nm
Specifications Weight
201 lb | 91 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
