Industrial Strength Case Taper with Top and Side Belt Sealing
Industrial Strength Case Taper with Top and Side Belt Sealing
SKU:SID-37379a
Reliable and efficient industrial-grade case taper for extra-large cases, offering fast sealing and adjustable features for flexible operations.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Industrial Strength Case Taper with Top and Side Belt Sealing
$6,499.99
Quantity: 1
Claim Your Seller Account
Industrial Strength Case Taper with Top and Side Belt Sealing
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

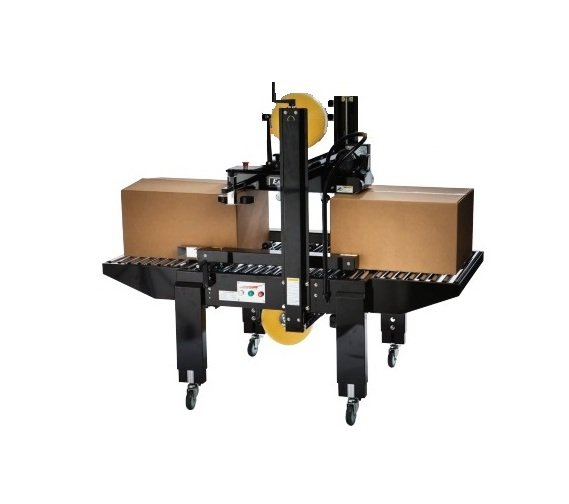

The Industrial Strength Case Taper with Top and Side Belt Sealing by Eastey® is specifically designed for extra-large cases, offering reliability and efficiency in case sealing operations. This robust system features a durable 12 gauge steel construction with powder coating, ensuring longevity in rugged applications. With a belt speed of 75 ft/min and tape speed of 30 cases/min, this case taper provides fast and consistent sealing results. The adjustable conveyor height, interchangeable tape cartridges, and top compression rollers make it suitable for a wide range of box sizes, enhancing operational flexibility. Increase your ROI with easy threading, minimal maintenance requirements, and CE certification, guaranteeing high-quality case sealing.
Product Specifications
Box Specifications Maximum Box Depth
27.5 in
Box Specifications Maximum Box Width
27.5 in
Box Specifications Minimum Box Depth
4 in
Box Specifications Minimum Box Width
6.0 in
Features Features
Plug-in and go operationFast and easy box size changesIndustrial strength side beltsInterchangeable top and bottom tape cartridgesEmergency stop buttonAdjustable leg extensionsCasters included for transportation within plantFront and rear pack tables included to allow for case packingTop squeezers push top flaps together on overfilled casesPowder coated 12 gauge steelLow maintenance, no air required
Increase Your Roi Increase Your Roi
Top and bottom tape heads lift out for easy threading and accept 2" wide pressure-sensitive tape as a standard, or can be ordered with 3" tape heads. The use of Eastey®'s SB/TB case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Industrial Strength Operation Industrial Strength Operation
Dual 1/4 HP side drive motors with single top drive motor, aggressive industrial strength drive belts, and roller tables make SB/TB a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and ensures years of use. Best of all, the SB/TB is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Maximum Stabile Maximum Stabile

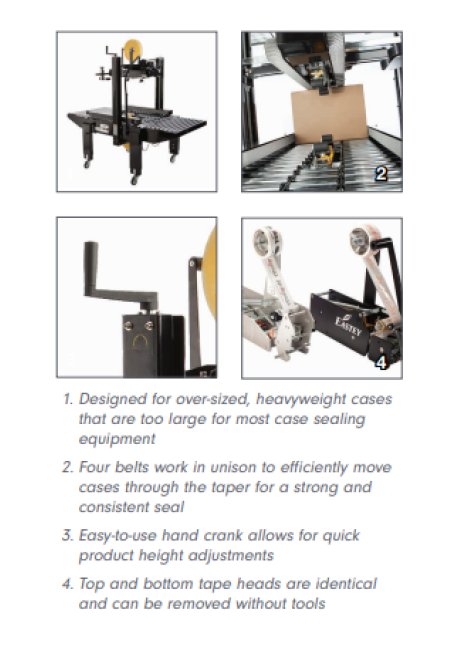

Four drive bells work in unison to effectively move your cases through for a strong and consistent seal SB/TB utilizes a dual mast with twin lead screws for greater tape head stability, and an adjustable side belt drive to center each case. The unit also features top compression rollers to stabilize the case and push the top flaps together, making it a great solution for over-filled and over-sized cases.
Optional Accessories Optional Accessories
3" Tape Head - Accepts 3" wide tape rolls
Technical Specs Adjustable Conveyor Height Without Casters
18.1 to 26.8 in
Technical Specs Adjustable Conveyor Height With Casters
23.6 to 32.3 in
Technical Specs Agency Certifications
European Conformity (CE)
Technical Specs Belt Speed
75 ft/min
Technical Specs Brands
Eastey®
Technical Specs Current
4 A
Technical Specs Drive Motors
Three (3) 1/4 hp drive motors
Technical Specs Frequency
60 Hz
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powdered coated for durability
Technical Specs Minimum Box Length
4.5 in
Technical Specs Note For Tape Speed
Depending on box size and operator efficiency
Technical Specs Sealer Type
Side and top belt case sealer
Technical Specs Tape Cartridge
Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Technical Specs Tape Size
2" wide pressure sensitive tape, up to 15" diameter rolls, optional 3" wide tape
Technical Specs Tape Speed
30 cases/min
Technical Specs Voltage
110 V
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® to provide the right solution for your case sealing needs.
Wide Standard Case Range Wide Standard Case Range
SB/TB offers fast and easy case changes and flexibility for boxes 4.5" in length and greater Adjustments can be made on the fly with easy hand tighten knobs and cranks. SB/TB utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as large as 27.5" wide and as tall as 27.5", offering the user more options for their case taping operation.
