Industrial Superlok® Excess Flow Valve - 8mm
Industrial Superlok® Excess Flow Valve - 8mm
SKU:SEF-278460
Reliable 8mm Superlok® Excess Flow Valve for precise fluid control in industrial settings. Automatic reset feature ensures safety.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Industrial Superlok® Excess Flow Valve - 8mm
$129.99
Quantity: 1
Claim Your Seller Account
Industrial Superlok® Excess Flow Valve - 8mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SEFV Series 8mm Superlok® Inlet and Outlet End Connections Industrial Excess Flow Valve is engineered to limit fluid flow to a preset rate, automatically shutting off when necessary. Its durable 316 Stainless Steel construction, automatic reset feature, and compatibility with various end connections make it ideal for industrial applications. With a pressure rating of 6000 psig and a temperature range of -10 to 400 °F, this valve ensures reliable performance and safety in diverse environments.
Product Specifications
Features Features
2-piece body : Allows for simple spring and seal maintenanceSpring-loaded actuationAutomatic reset : The bleed vent allows the valve to automatically resetVariety of end connections : Can be assembled in any system or applicationStainless steel constructionEvery valve is factory tested for proper functionality.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Operation Operation
The poppet is loaded by a spring in the open position during normal system operation.if the system becomes unbalanced and the downstream pressure drops, the poppet rapidly move to the tripped position.The poppet will remain in the tripped position until system pressure becomes equal across the bleed vent in the poppet.The bleed vent in the poppet will allow the pressure to slowly equalize across the valve if the downstream line is closed or repaired.When the system pressure becomes equal, the spring automatically reset the poppet to the open position.
Technical Specs Body Material
316 Stainless Steel

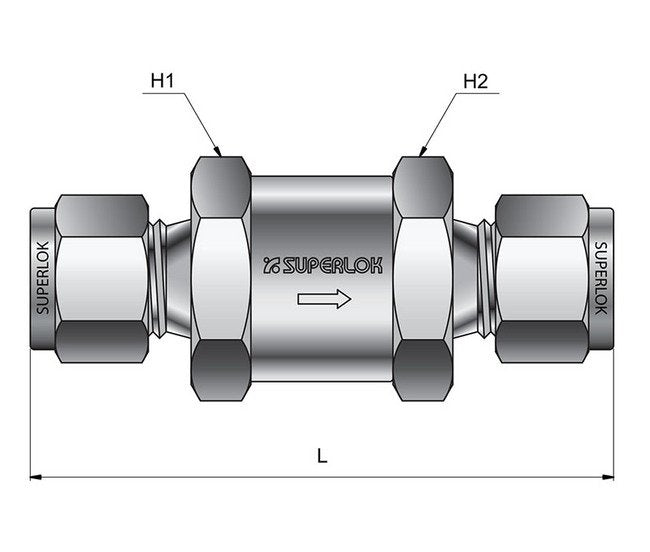

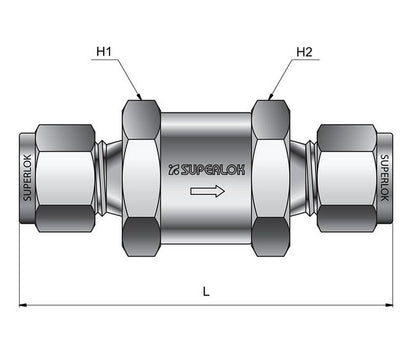

Technical Specs Dimension H1
1 in | 25.4 mm
Technical Specs Dimension H2
1 in | 25.4 mm
Technical Specs Dimension L
2.70 in | 68.6 mm
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
6000 psig | 413 bar
Technical Specs Temperature Rating
-10 to 400 ºF | -23 to 204 ºC
