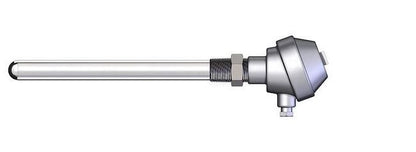

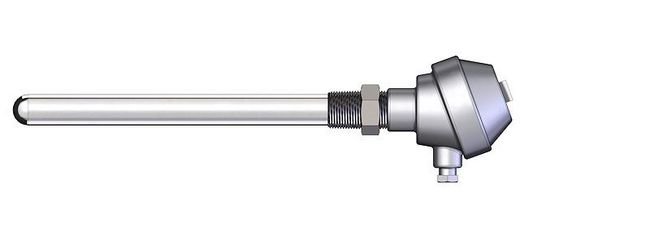

Acrolab's straight industrial thermocouple assemblies with mullite or alumina protection tubes are engineered for high temperature process heating applications. Available in various lengths, diameters, and mounting options, the assemblies offer precise temperature measurement and durability. Featuring multiple calibration types and tube material options, these thermocouples are designed for accurate and reliable performance in industrial settings, meeting the stringent requirements of government and institutional procurement standards.
Product Specifications
Specifications Calibration Type
B - Iron/Constantan | K - Chromel/Alumel | N - Nicrosil/Nisil | R - Platinum Rhodium/Platinum | S - Platinum Rhodium/Platinum
Specifications Junction Styles
Dual | Single
Specifications Options
A - Open End (Closed End Standard) | B - Head with internal ground screw | H - Adjustable Steel Flange | HF - Threaded flange on nipple | I - Other Specify | K - Weatherproof aluminum head | M - Special limits of error wire | NT - No process threads on pipe nipple | P - Steel union and nipple to connect head to protection tube | V - Stainless steel union and nipples | W - Protective White Epoxy Coating on Head | X - Explosion proof Head
Specifications Tube X Length
Specify
Specifications Wire Gauge
11 - 11 Gauge ( K, 16C,16D,16E Only) | 14 - 14 Gauge (N Only) | 24 - 24 Gauge ( B,R,S Only) | 26 - 26 Gauge (R,S Only) | 8 - 8 Gauge ( K,N, 16C,16D,16E Only)
Tube Material
Mullite Code - 16AHAlumina Code - 17AHTube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Process Thread Size - 1/2 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - Steel hex. FittingMullite Code - 16A1Alumina Code - 17A1Tube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Process Thread Size - 1/2 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 1 in. long nippleMullite Code - 16A4Alumina Code - 17A4Tube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Process Thread Size - 1/2 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 4 in. long nippleMullite Code - 16A(X)Alumina Code - 17A(X)Tube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Process Thread Size - 1/2 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - (X) in. long nipple (specify)Mullite Code - 16 A FAlumina Code - 17AFTube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Type Description - 7/8 in. od x 2 in. brass ferruleMullite Code - 16AAlumina Code - 17ATube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Type Description - Plain tubeMullite Code - 16ACTube Inside Diameter - 1/4 in.Tube Outside Diameter - 3/8 in.Fitting Type Description - 5/8 in. od x 1/2 in. long collarMullite Code - 16BHAlumina Code - 17BHTube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - Steel hex. FittingMullite Code - 16B1Alumina Code - 17B1Tube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 1 in. long nippleMullite Code - 16B4Alumina Code - 17B4Tube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 4 in. long nippleMullite Code - 16B(X)Alumina Code - 17B(X)Tube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - (X) in. long nipple (specify)Mullite Code - 16BFAlumina Code - 17ABTube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Type Description - 7/8 in. od x 2 in. brass ferruleMullite Code - 16BAlumina Code - 17BTube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Type Description - Plain tubeMullite Code - 16BCTube Inside Diameter - 7/16 in.Tube Outside Diameter - 11/16 in.Fitting Type Description - 1 in. od x 1/2 in. long collarMullite Code - 16CHAlumina Code - 17CHTube Inside Diameter - 1/2 in.Tube Outside Diameter - 3/4 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - Steel hex. FittingMullite Code - 16C1Alumina Code - 17C1Tube Inside Diameter - 1/2 in.Tube Outside Diameter - 3/4 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 1 in. long nippleMullite Code - 16C4Alumina Code - 17C4Tube Inside Diameter - 1/2 in.Tube Outside Diameter - 3/4 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 4 in. long nippleMullite Code - 16C(X)Alumina Code - 17C(X)Tube Inside Diameter - 1/2 in.Tube Outside Diameter - 3/4 in.Fitting Process Thread Size - 3/4 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - (X) in. long nipple (specify)Mullite Code - 16CAlumina Code - 17CTube Inside Diameter - 1/2 in.Tube Outside Diameter - 3/4 in.Fitting Type Description - Plain tubeMullite Code - 16CCTube Inside Diameter - 1/2 in.Tube Outside Diameter - 3/4 in.Fitting Type Description - 11/8 in. od x 1/2 in. long collarMullite Code - 16DHAlumina Code - 17DHTube Inside Diameter - 5/8 in.Tube Outside Diameter - 7/8 in.Fitting Process Thread Size - 1 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - Steel hex. FittingMullite Code - 16D1Alumina Code - 17D1Tube Inside Diameter - 5/8 in.Tube Outside Diameter - 7/8 in.Fitting Process Thread Size - 1 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - 1 in. long nippleMullite Code - 16D(X)Alumina Code - 17D(X)Tube Inside Diameter - 5/8 in.Tube Outside Diameter - 7/8 in.Fitting Process Thread Size - 1 in.Fitting Process Thread Type - National Pipe Thread (NPT)Fitting Type Description - (X) in. long nipple (specify)Mullite Code - 16DAlumina Code - 17DTube Inside Diameter - 5/8 in.Tube Outside Diameter - 7/8 in.Fitting Type Description - Plain tubeSilicon Carbide Code - 18JTube Inside Diameter - 1 in.Tube Outside Diameter - 1-3/4 in.Fitting Type Description - With CollarSilicon Carbide Code - 18JCTube Inside Diameter - 1 in.Tube Outside Diameter - 1-3/4 in. Fitting Type Description - Without Collar
