Industrial Thermocouple with Double Protection Tubes
Industrial Thermocouple with Double Protection Tubes
SKU:THE-b91bee
High-quality Industrial Thermocouple Assemblies with ceramic inner protection tube and various outer protection options for reliable high-temperature applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Industrial Thermocouple with Double Protection Tubes
$129.99
Quantity: 1
Claim Your Seller Account
Industrial Thermocouple with Double Protection Tubes
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

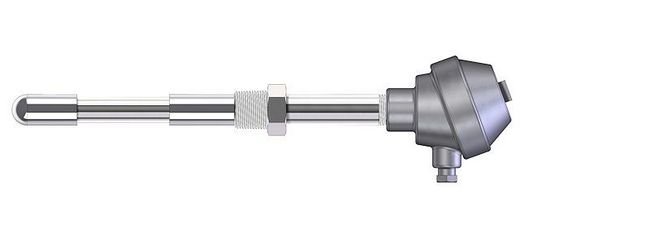

Acrolab's Industrial Thermocouple Assemblies with Double Protection Tubes are designed for high-temperature process heating applications. Featuring a ceramic inner protection tube and various outer protection tube options including ceramic, metal alloy, or composite materials, these assemblies ensure superior durability and reliability in industrial settings. With calibration options like Type B, R, and S gauges, and a range of tube lengths and fitting types available, these thermocouples offer versatile solutions for precise temperature monitoring in demanding environments.
Product Specifications
Specifications Calibration Type
B24 - Type B, 24 Gauge | R24 - Type R, 24 Gauge | R26 - Type R, 26 Gauge | S24 - Type S, 24 Gauge | S26 - Type S, 26 Gauge
Specifications Options

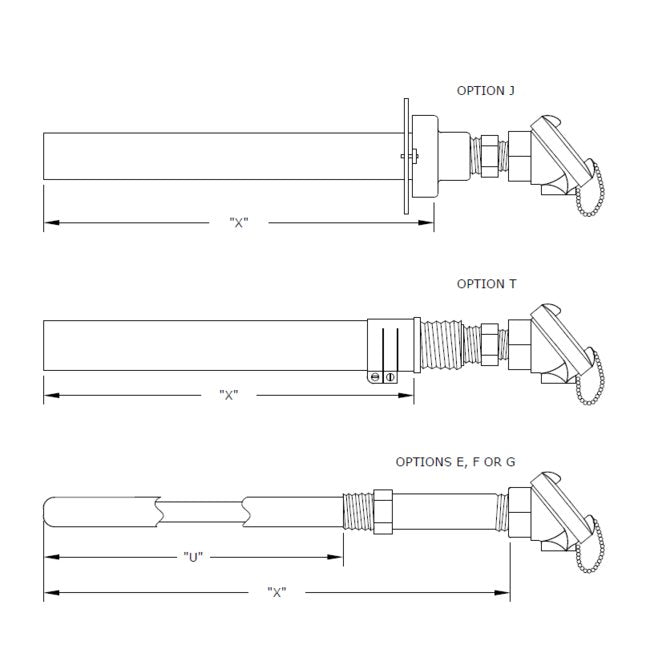

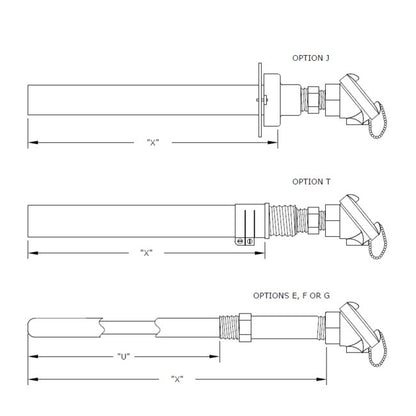

B - Head with internal ground screw | E - (X) 1" NPT welded steel bushing (only 0.75" size tubes) | F - (X) 1-1/4" NPT welded steel bushing (only 0.75" size tubes) | G - (X) 1-1/2" NPT welded steel bushing (only 0.75" size tubes) | H - Adjustable Steel Flange | I - Special Construction | J - Fixed flange | K - Weatherproof aluminum head | M - Special limits of error wire | N - Open type terminal head (for P-R RH T/C Only) | P - Steel union and nipple to connect head to protection tube | T - Clamp assembly | V - Stainless steel union and nipples | W - Protective White Epoxy Coating on Head | X - Explosion proof Head - CSA approved
Specifications Tube X Length
Specify
Type
Code - 16A1-16B1Inner - MulliteOuter - MulliteOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x 1-1/2 in. Long nippleCode - 16A1-16B4Inner - MulliteOuter - MulliteOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x 4 in. Long nippleCode - 16A1-16BB(Y)Inner - MulliteOuter - MulliteOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x (X) in. Long nippleCode - 16A-16BHInner - MulliteOuter - MulliteOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x 1/2 in. NPT HE x nippleCode - 16A-12-75Inner - MulliteOuter - LT-1Outside Diameter - 7/8 in.Mounting Fitting Type and Length - None, or table 3 options E,F,GCode - 16BH-18JInner - MulliteOuter - Silicon CarbideOutside Diameter - 1-3/4 in.Mounting Fitting Type and Length - None, or table 3 options H,J,TCode - 16B-7-75Inner - MulliteOuter - Inconel 601Outside Diameter - 1.050 in.Mounting Fitting Type and Length - None, or table 3 options E,F,G,HCode - 17A1-17B1Inner - AluminaOuter - AluminaOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x 1-1/2 in. Long nippleCode - 17A1-17B4Inner - AluminaOuter - AluminaOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x 4 in. Long nippleCode - 17A1-17B(Y)Inner - AluminaOuter - AluminaOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x (X) in. Long nippleCode - 17A-17BHInner - AluminaOuter - AluminaOutside Diameter - 11/16 in.Mounting Fitting Type and Length - 3/4 in. NPT x 1/2 in. NPT HE x nippleCode - 17A-12-75Inner - AluminaOuter - LT-1Outside Diameter - 7/8 in.Mounting Fitting Type and Length - None, or table 3 options E,F,GCode - 17BH-18JInner - AluminaOuter - Silicon CarbideOutside Diameter - 1-3/4 in.Mounting Fitting Type and Length - None, or table 3 options E,F,G,H
