Industrial Two Motor Driven Crane - W27 x 102
Industrial Two Motor Driven Crane - W27 x 102
SKU:REL-e0e812
Heavy-duty industrial crane for extreme conditions, 7 1/2 ton capacity, versatile motor-driven trolleys and hand chain hoists.
Regular price
$12,899.99
Regular price
Sale price
$12,899.99
Unit price
per
Initiate Order
Industrial Two Motor Driven Crane - W27 x 102
$12,899.99
Quantity: 1
Claim Your Seller Account
Industrial Two Motor Driven Crane - W27 x 102
$12,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

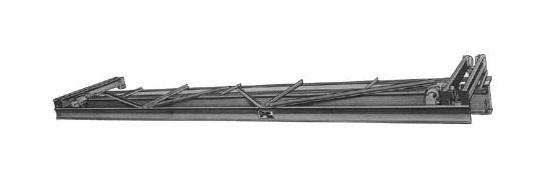

The Industrial Two Motor Driven Crane in W27 x 102 girder size is designed for extreme conditions with a 7 1/2 ton capacity and a span of 50'-0". Featuring a wheel base of 7'-6" and structural outriggers for stability, this crane ensures top performance in indoor and outdoor settings. With motor-driven trolleys and hand chain hoists, this crane is versatile and reliable for heavy-duty usage. Compliant with federal procurement standards and suitable for various industry-specific certifications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
7 1/2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
10069 lbs.

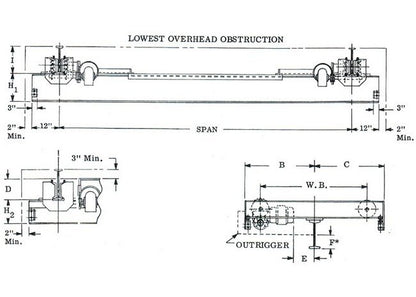

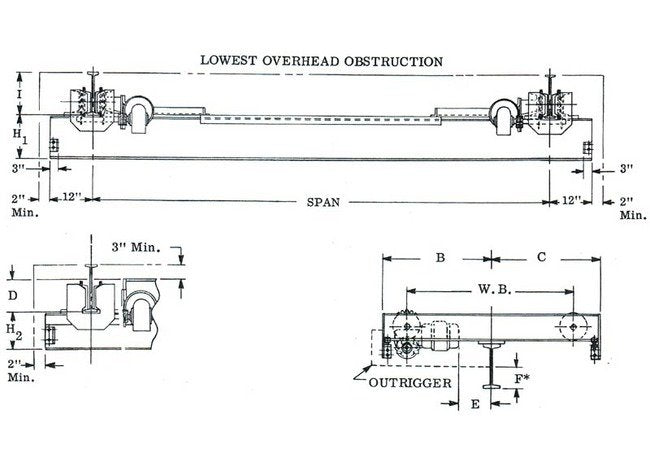

Specifications Dimension B
4'-7"
Specifications Dimension C
4'-6"
Specifications Dimension D
14 inches
Specifications Dimension E
26 inches
Specifications Dimension F
11 inches
Specifications Dimension H1
28 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
W27 x 102
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S20 x 65.4
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
50'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
11020 lbs.
