Industrial Variable Speed Belt Conveyor
Industrial Variable Speed Belt Conveyor
SKU:PAC-5999c5
Efficient, durable, and customizable industrial conveyor for seamless product transport.
Regular price
$2,150.00
Regular price
Sale price
$2,150.00
Unit price
per
Initiate Order
Industrial Variable Speed Belt Conveyor
$2,150.00
Quantity: 1
Claim Your Seller Account
Industrial Variable Speed Belt Conveyor
$2,150.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

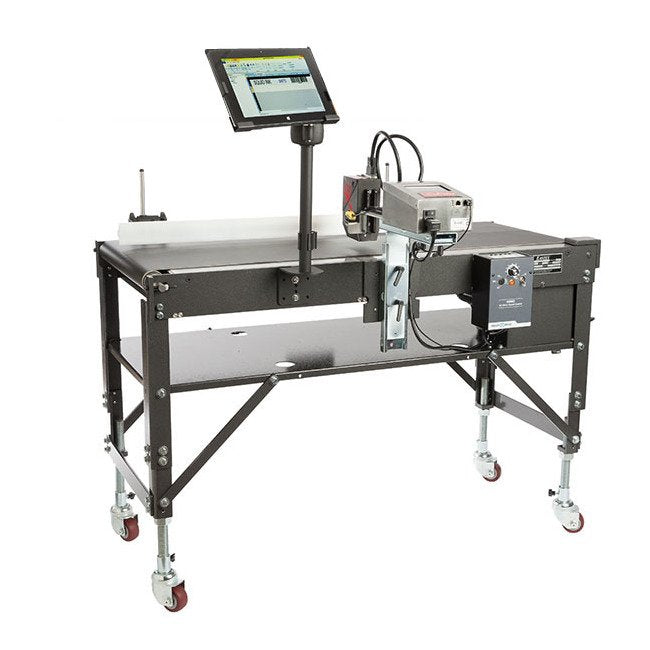

The Industrial Variable Speed Belt Conveyor by Eastey is a reliable solution designed for efficient product transport in industrial settings. Made of industrial-strength 12-gauge steel and powder-coated for durability, this conveyor offers a variable speed of 0 to 100 ft/min, accommodating weights up to 100 lb. With a customizable height adjustment range, pre-drilled holes for printer hardware, and a magnetic mounted control box, this conveyor ensures seamless operation. Its sturdy construction, self-tracking belt, and optional accessories like guide rails make it a versatile and robust choice for primary or secondary product marking, integrating with ink jet printing equipment effortlessly.
Product Specifications
Additional Information Additional Information
DESIGNED FOR INK JET APPLICATIONSThe EC Series design is perfect for integration with ink jet printing equipment. Each conveyor comes pre-drilled in multiple locations to easily add printer and encoder mounting brackets. The smooth drive belt provides consistent speed for reliable, scannable barcoding and product transfer. Systems include a lower shelf with holes for cable management and provide storage for supplies such as spare printheads, printer and UV LED control boxes, spare ink, and more.EASE OF USEThe conveyors utilize an endless belt with self-tracking V-groove for consistent alignment. The variable speed drive motor is adjustable up to 100 fpm for a variety of applications. The unit also features a magnetic control box that can be mounted on either side of the conveyor. Conveyor legs are adjustable from 20" up to 33.5". The system is designed to keep maintenance to a minimum and provide a fast and efficient method of product transport.INDUSTRIAL STRENGTH OPERATIONHeavy duty motor, industrial strength drive belt, and a simple design make Eastey Series Conveyors a workhorse that will stand up to your toughest challenges. Each conveyor is made from 1/4" steel that will withstand even the most rugged applications. A custom two part epoxy finish protects the machine from abusive conditions and ensures years of use.THE RIGHT SOLUTIONRugged design. Modular control. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey to provide the right solution for your product handling needs.

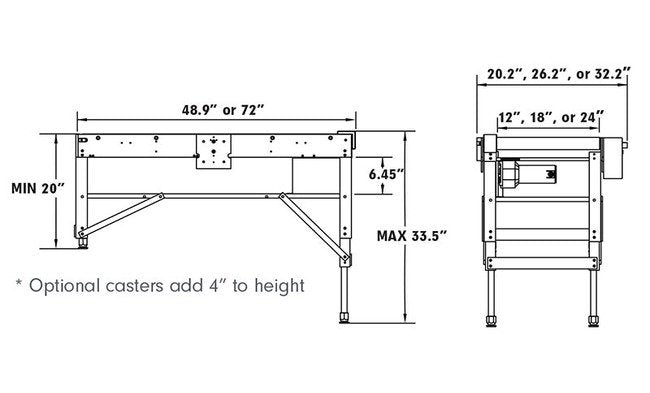

Conveyor Specifications Conveyor Height Adjustment
20" to 33.5" without casters; 24" to 37.5" with casters
Conveyor Specifications Machinery Makeup
Industrial Strength 12 Gauge Steel, Powdered Coated for Durability
Conveyor Specifications Maximum Weight
All Models Can Handle up to 100 lb
Conveyor Specifications Variable Speed
0 to 100 ft/min
Electrical Requirements Current
5 A
Electrical Requirements Phase
1
Electrical Requirements Voltage
110 V
Features Features
Magnetic control box mountingPre-drilled mounting plate for printer brackets (standard conveyor includes one plate)Shelf for various storageSmall space-saving footprintSeamless self-tracking belt1/4" cold rolled steelVariable speed driveOptional guide rails availableSafety cover over pinch pointsAdjustable conveyor heightSmooth, consistent belt speed
Key Features Key Features

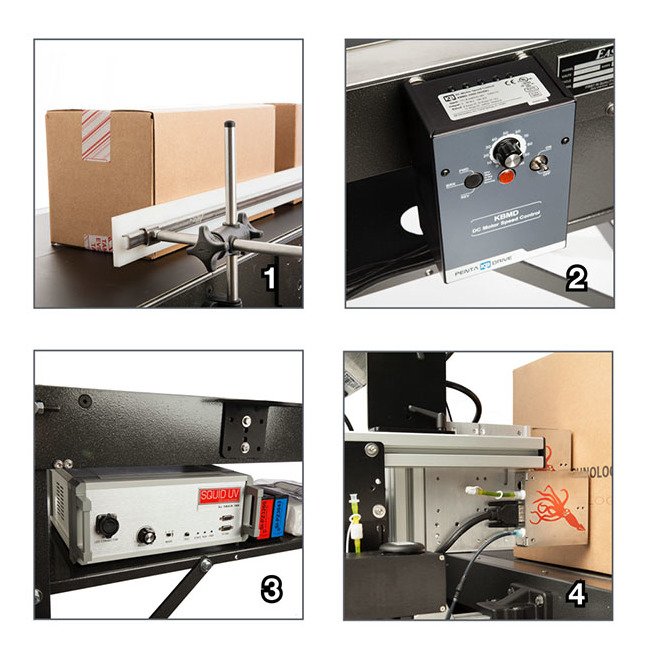

Single or dual optional side rails are available for box or primary product guidanceMagnetic control box can be mounted on either side of conveyorShelf included for storage such as spare print heads, printer and UV LED control boxes, spare ink, and morePre-drilled printhead mounting plate makes for easy for integration with ink jet printers and other equipment
Machine Dimensions Machine Width
26.2 in
Note Note
EASTEY® 2020. Specifications subject to change. All trademarks are property of their registered owners.
Optional Accessories Optional Accessories
CastersLockable casters for easy movement throughout the plantAdditional Printhead Mounting PlatePre-drilled to mount full family of Squid Ink Printing SystemsGuide RailsHeavy duty adjustable height and reach to align product for consistent print (sold separately per side)
Specifications Conveyor Width
18 in
Specifications Length
48.9 in
Specifications Weight
175 lb
