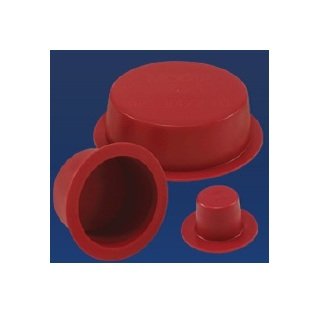

Industrial Wide Flange Tapered Plug Cap
Industrial Wide Flange Tapered Plug Cap
SKU:WID-56fa95
Seal openings with precision using the Industrial Wide Flange Tapered Plug Cap by MOCAP. RoHS compliant, ideal for painting/coating processes.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Industrial Wide Flange Tapered Plug Cap
$39.99
Quantity: 1
Claim Your Seller Account
Industrial Wide Flange Tapered Plug Cap
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

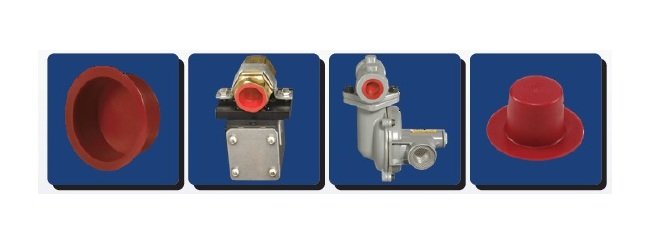

The Industrial Wide Flange Tapered Plug Cap by MOCAP offers a versatile solution for sealing a variety of openings, including threaded and non-threaded holes, pipe and tube ends, connector ports, and fittings. Crafted from polyethylene, this RoHS-compliant cap is designed to withstand temperatures up to 175°F (80°C). Ideal for painting, coating, and spraying processes, this plug cap is available in a range of sizes for immediate shipment, including Micro-Pack and Mini-Pack quantities. Ensure a secure fit by selecting the appropriate dimension based on your application needs, following MOCAP's usage guidelines.
Product Specifications
Applications 0

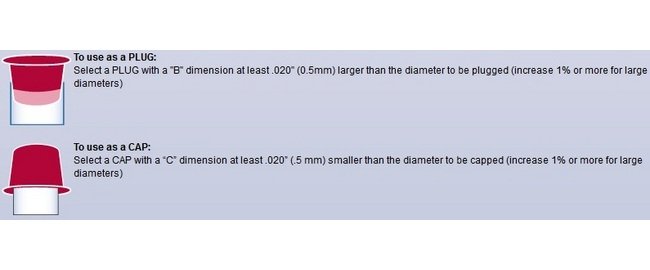

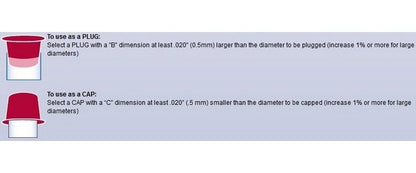

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 in (0.5 mm) smaller than the diameter to be capped (increase 1% or more for large diameters)
Manufacturing Notes 0
MOCAP stocks wide flange tapered plastic plug caps in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
1000

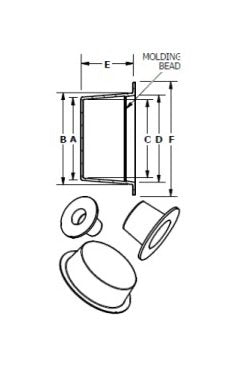

Specifications Flange Outer Diameter Dimension F
1.94 in | 49.3 mm
Specifications Large End Inside Diameter Dimension D
1.553 in | 39.4 mm
Specifications Large End Outer Diameter Dimension B
1.615 in | 41.0 mm
Specifications Length Dimension E
0.72 in | 18.3 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
20
Specifications Mini Pack Quantity
200
Specifications Small End Inside Diameter Dimension C
1.393 in | 35.4 mm
Specifications Small End Outer Diameter Dimension A
1.455 in | 37.0 mm
Specifications Standards
RoHS Compliant
