IndustrialGrade DRV16 NPTF Flow Control Valve with Check
IndustrialGrade DRV16 NPTF Flow Control Valve with Check
SKU:ACC-0aaa87
Achieve precise hydraulic flow control up to 5000 PSI with the IndustrialGrade DRV16 NPTF Valve.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
IndustrialGrade DRV16 NPTF Flow Control Valve with Check
$169.99
Quantity: 1
Claim Your Seller Account
IndustrialGrade DRV16 NPTF Flow Control Valve with Check
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IndustrialGrade DRV16 NPTF Flow Control Valve with Check is a robust solution for precise hydraulic fluid control up to 5000 PSI. Featuring a micrometer style adjustment knob with color coded flow indicator, this valve ensures accurate and repeatable flow adjustments. Constructed with carbon steel housing and ANSI-certified NPTF ports, it offers reliable performance in inline applications. With industry-standard certifications and safety features, this valve meets stringent procurement requirements for government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 106 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
2.24 in | 57 mm
Dimensions Dimension F
3.46 in | 88 mm
Dimensions Dimension J
Pg 16 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

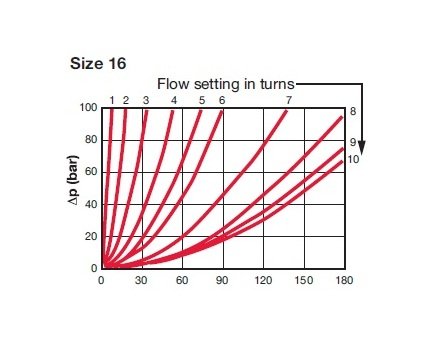

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/4 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-16-01.X/5-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
1.3 kg | 2.87 lb
