Inline Check Valves - Carbon Steel, 1 inch, ANSI/ASME Certified
Inline Check Valves - Carbon Steel, 1 inch, ANSI/ASME Certified
SKU:ACC-b88b43
Precision-engineered Inline Check Valves for reliable flow control in industrial settings. ANSI/ASME Certified.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Inline Check Valves - Carbon Steel, 1 inch, ANSI/ASME Certified
$79.99
Quantity: 1
Claim Your Seller Account
Inline Check Valves - Carbon Steel, 1 inch, ANSI/ASME Certified
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

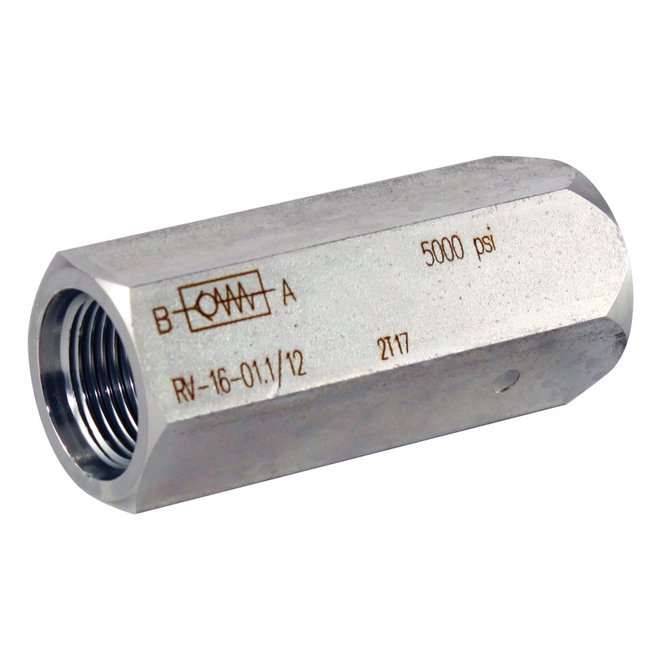

The Inline Check Valves are precision-engineered flow control valves with a carbon steel housing. Designed for maximum performance, these valves feature metal-to-metal seal design with hardened and ground steel poppets. With a flow rate of 150 gpm and a maximum operating pressure of 5000 psi, these valves ensure reliable and efficient flow control. Meeting American National Standards Institute (ANSI) and American Society of Mechanical Engineers (ASME) certifications, these valves are ideal for industrial applications requiring high-quality standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

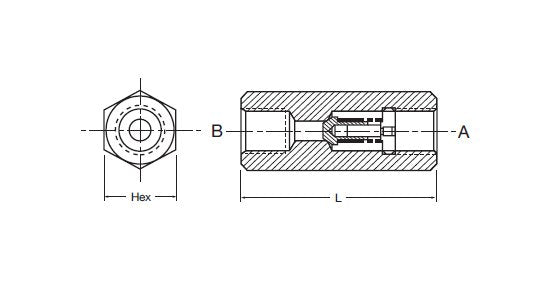

Dimensions Dimension L
5 in | 127 mm
Dimensions Hex Size
1 13/16 in | 46 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0

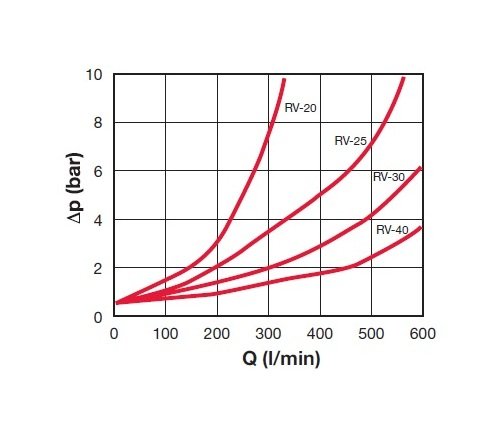

Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications End Size
1 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-20-01.X/5- 0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
20
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
