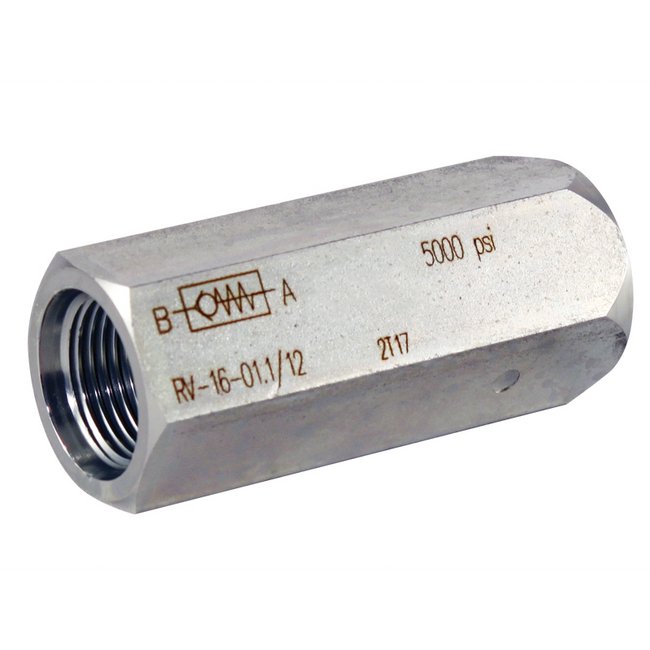

The In-Line Check Valves are designed for precise flow control with a model code RV-16-01.X/5-25. Featuring NPTF port configuration, carbon steel housing, and a metal-to-metal seal design, these valves ensure reliability and durability. With industry standards compliance (ANSI/ASME), these valves offer a cracking pressure of 1.7 bar, maximum operating pressure of 5000 psi, and a flow rate of 150 gpm. Ideal for various applications, these valves come in 9 sizes with hardened steel poppet construction.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

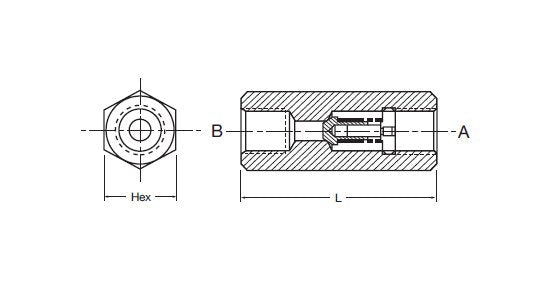

Dimensions Dimension L
3.46 in | 88 mm
Dimensions Hex Size
1 7/16 in | 36 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
1.7 bar | 25 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/4 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-16-01.X/5- 25
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
16
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/4 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
