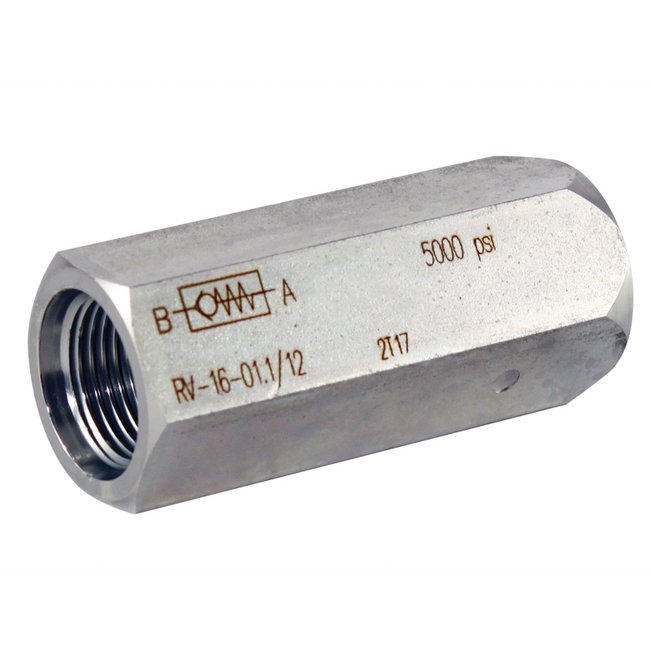

The Inline Check Valves are essential for reliable flow control, featuring a carbon steel housing, metal-to-metal seal design for poppet, and hardened steel poppet for durability. With NPTF ports and ANSI/ASME 1.20.3 Taper Pipe Thread configuration, these valves ensure precision and efficiency. Operating at pressures up to 5000 psi, they offer a flow rate of 150 gpm. Meeting American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME) standards, these valves assure quality and compliance in industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

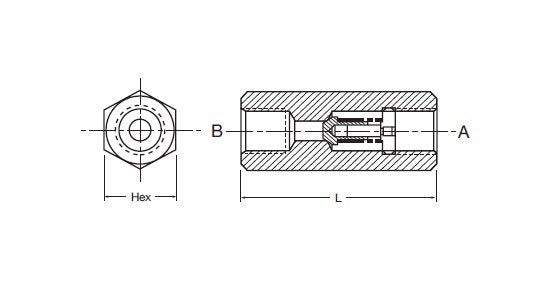

Dimensions Dimension L
5.63 in | 143 mm
Dimensions Hex Size
2 9/16 in | 65 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0

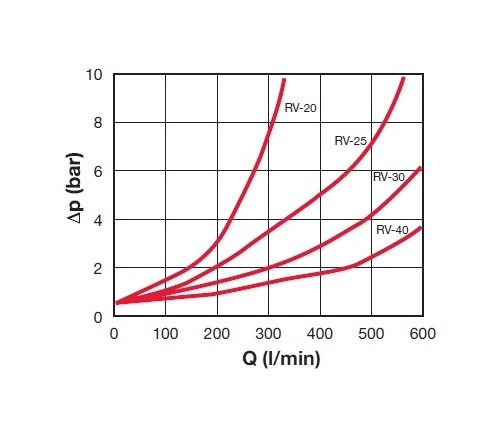

Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
3.1 bar | 45 psi
Specifications Division
ACCESSORIES
Specifications End Size
1-1/2 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-30-01.X/5- 45
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
30
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/2 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
