Inline Flow Control Valve with Check - DRV-16 NPTF
Inline Flow Control Valve with Check - DRV-16 NPTF
SKU:ACC-dab998
Achieve precise hydraulic fluid control up to 5000 PSI with the DRV-16 NPTF Flow Control Valve. Safe, reliable, and ANSI-certified for accurate flow adjustments.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Inline Flow Control Valve with Check - DRV-16 NPTF
$129.99
Quantity: 1
Claim Your Seller Account
Inline Flow Control Valve with Check - DRV-16 NPTF
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inline Flow Control Valve with Check, model DRV-16, is designed for precise hydraulic fluid control at up to 5000 PSI. Featuring NPTF threaded connections, a color-coded micrometer adjustment knob, and carbon steel housing, this valve ensures safe and repeatable flow adjustments. With industry certifications meeting ANSI standards, it offers reliable performance. Dimensions and features like panel mounting provision and unique safety spindle design make it versatile for various applications.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 106 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
2.24 in | 57 mm
Dimensions Dimension F
3.46 in | 88 mm
Dimensions Dimension J
Pg 16 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

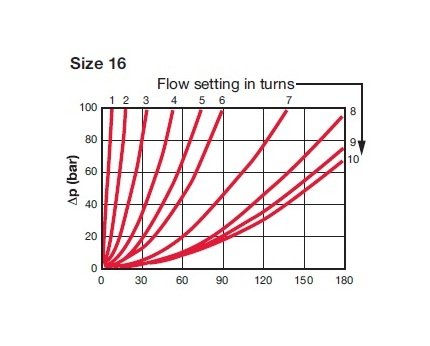

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications 0
Panel Mounting Kit
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
3/4 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-16-01.X/5-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
3/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
1.3 kg | 2.87 lb
