Inline Flow Control Valve with Check NPTF - DRV-08

Inline Flow Control Valve with Check NPTF - DRV-08

ACC-8f205e

Achieve precise hydraulic flow control with the DRV-08 NPTF Valve, up to 5000 PSI, ANSI standards compliant.

$89.99
$89.99
Sale

Initiate Order

Inline Flow Control Valve with Check NPTF - DRV-08

Inline Flow Control Valve with Check NPTF - DRV-08

$89.99

Quantity: 1

Claim Your Seller Account

Inline Flow Control Valve with Check NPTF - DRV-08

Inline Flow Control Valve with Check NPTF - DRV-08

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DRV-08 NPTF Flow Control Valve with Check is a high-performance hydraulic component designed for safe, simple, and repeatable flow control. Operating at pressures up to 5000 PSI, this valve features precise adjustment capabilities through a micrometer style knob with a color-coded flow indicator. Constructed from durable carbon steel with zinc plating, it meets ANSI industry standards and offers reliable performance in temperatures ranging from -4 to 212 degrees Fahrenheit. With a unique safety spindle design, this valve provides optimal control and reliability in various hydraulic applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

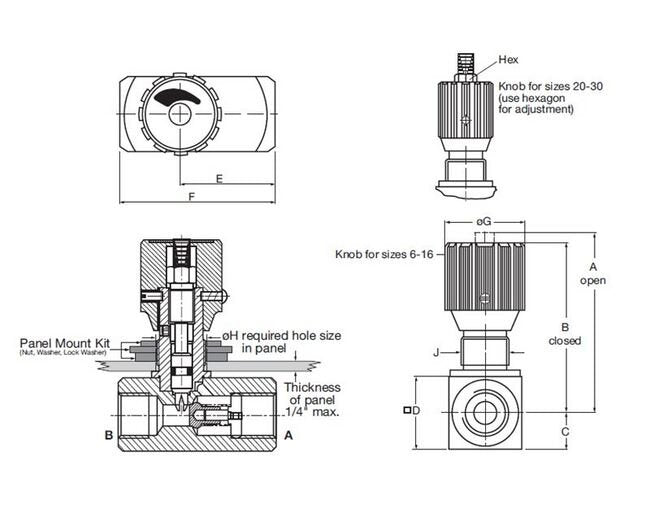

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.84 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
1.32 in | 33.5 mm
Dimensions Dimension F
2.17 in | 55 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

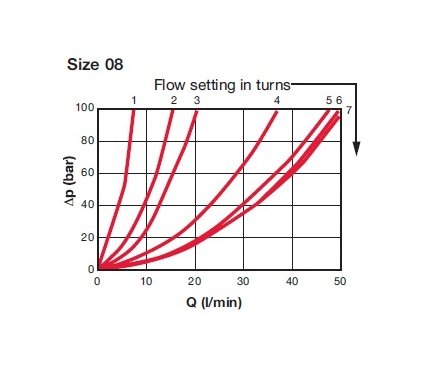

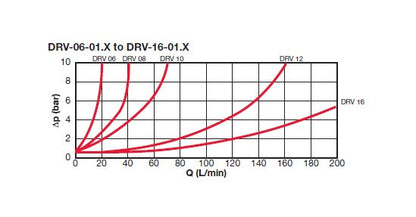

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/4 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-08-01.5/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.3 kg | 0.66 lb
