Innerduct Pulling Eyes for Fixed Head Installations
Innerduct Pulling Eyes for Fixed Head Installations
SKU:PUL-3b52f8
Enhance cable pulling strength with Fixed Head Innerduct Pulling Eyes, designed for secure attachment to innerducts. Optimal for Condux swivel connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Innerduct Pulling Eyes for Fixed Head Installations
$29.99
Quantity: 1
Claim Your Seller Account
Innerduct Pulling Eyes for Fixed Head Installations
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

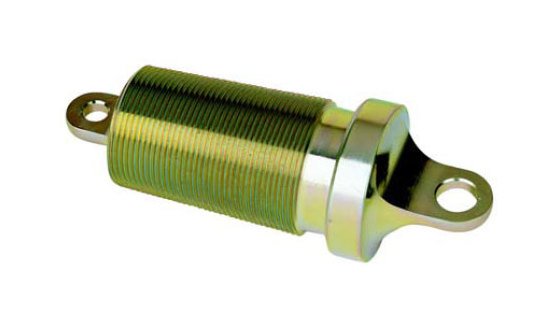

The Fixed Head Innerduct Pulling Eyes feature tapered buttress threads for secure attachment to innerducts, ensuring maximum pulling strength. Designed to integrate seamlessly with Condux swivels, these pulling eyes offer exceptional durability, withstanding pulling tensions that exceed manufacturer recommendations. To select the right size, measure the innerduct's inside diameter, ensuring it falls within the specified range. This product provides reliable support for innerduct installations, enhancing efficiency and productivity in cable laying projects.

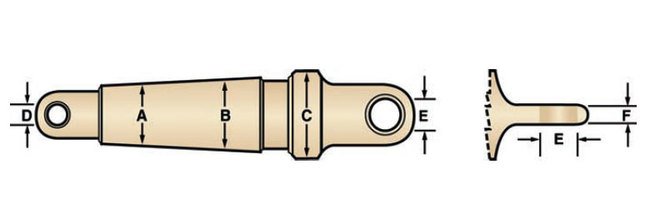

Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.98 to 2.06
Specifications Innerduct Id Range A To B Mm
50 to 52
Specifications Max Od C In
2.50
Specifications Max Od C Mm
64
Specifications Nominal Size In
2
Specifications Nominal Size Mm
51
