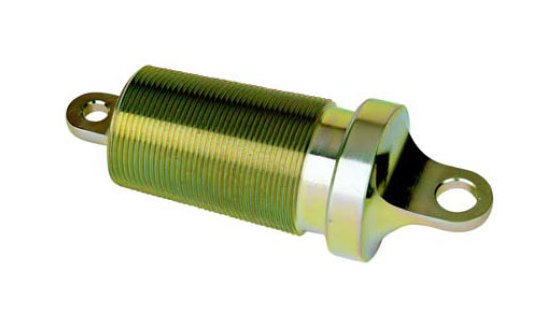

Enhance your innerduct pulling operations with our Fixed Head Innerduct Pulling Eyes. Featuring tapered buttress threads for maximum pulling strength, these eyes connect seamlessly to a Condux swivel. Designed to withstand high pulling tensions, they ensure a secure grip within the innerduct. To determine the right size, match the innerduct I.D. with our specified range. Invest in precision and durability with these pulling eyes for a reliable pulling solution.

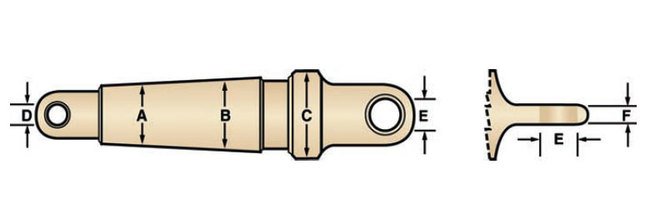

Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.34 to 1.50
Specifications Innerduct Id Range A To B Mm
34 to 38
Specifications Max Od C In
1.88
Specifications Max Od C Mm
48
Specifications Nominal Size In
1-1/2
Specifications Nominal Size Mm
38
