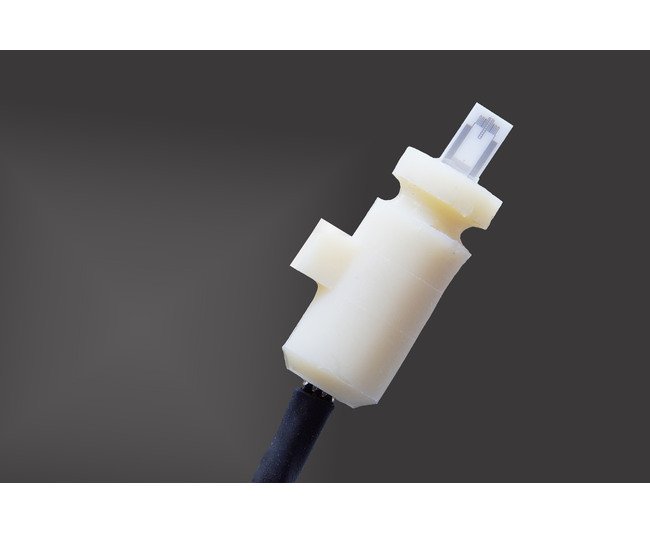

Innovative Sensor Flow Sensor FS7.A.1L.195 - Thermal Gas Flow Sensor
Innovative Sensor Flow Sensor FS7.A.1L.195 - Thermal Gas Flow Sensor
SKU:FLO-4f4027
Highly sensitive thermal gas flow sensor with RoHS compliance & wide temperature range. Ideal for precise flow measurement.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Innovative Sensor Flow Sensor FS7.A.1L.195 - Thermal Gas Flow Sensor
$49.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Flow Sensor FS7.A.1L.195 - Thermal Gas Flow Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Innovative Sensor Technology, USA Division's FS7.A.1L.195 Flow Sensor is a precision-engineered thermal gas flow sensor designed for accuracy and reliability. Equipped with a symmetrical heater design, this sensor offers exceptional sensitivity and a flow range of 0 to 100 m/s. With RoHS compliance and a temperature range from -20 to +150 ºC, it ensures safety and environmental responsibility. The sensor housing, with dimensions that allow easy integration into various applications, provides added convenience and durability.
Product Specifications
Dimensions Height
0.2 mm
Dimensions Length
6.9 mm
Dimensions Width
2.4 mm
Housing Dimensions Housing Diameter
6.0 mm
Housing Dimensions Housing Diameter Tolerance
0.1 mm
Housing Dimensions Housing Length
14 mm
Housing Dimensions Housing Length Tolerance
0.2 mm
Specifications Flow Range
0 to 100 m/s
Specifications Immersion Depth
4 mm
Specifications Immersion Depth Tolerance
0.2 mm
Specifications Manufacturer Part Number
FS7.A.1L.195
Specifications Number Of Pins
3
Specifications Old Product Code
050.00217
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-20 to +150 ºC
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Length
195 mm
Specifications Wire Size
30 AWG
Specifications Wire Type
Copper (Cu)/Silver (Ag) Stranded
