Innovative Sensor Technology LFS1K0.1710.6W.B.010-6 Conductivity Sensor
Innovative Sensor Technology LFS1K0.1710.6W.B.010-6 Conductivity Sensor
SKU:CON-09753c
Innovative Sensor Technology LFS1K0 Conductivity Sensor - Accurate, reliable, and eco-friendly for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Innovative Sensor Technology LFS1K0.1710.6W.B.010-6 Conductivity Sensor
$499.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Technology LFS1K0.1710.6W.B.010-6 Conductivity Sensor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

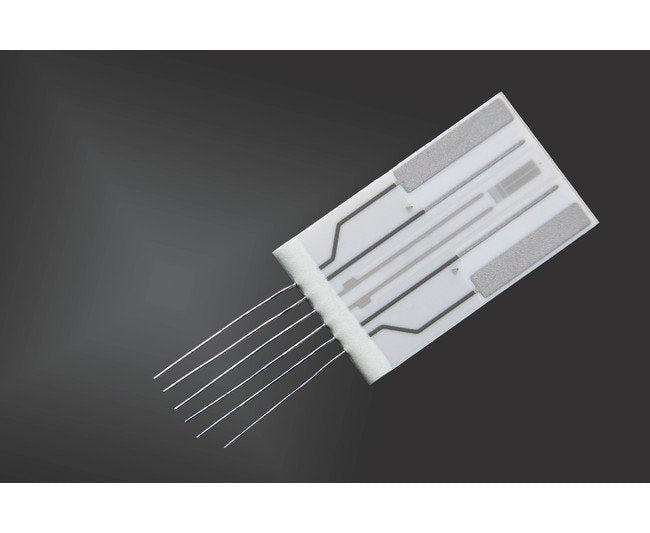

The Innovative Sensor Technology LFS1K0.1710.6W.B.010-6 Conductivity Sensor is a cutting-edge solution for precise conductivity measurements in a range from 0.2 mS/cm to 200 mS/cm. Featuring a typical cell constant of 0.44 cm-1 and a layout with 4 electrodes and an integrated Pt1000 Class F0.3 temperature sensor, this sensor excels in accuracy and reliability. With a temperature range from -30 to +100 ºC, platinum/nickel wire construction, and compact dimensions of 16.9mm x 0.65mm, this sensor is ideal for a wide array of industrial applications. RoHS compliant for environmental sustainability, this sensor ensures both efficiency and eco-friendliness in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Length
16.9 mm
Dimensions Length Tolerance
9.9 mm
Dimensions Width
0.65 mm
Specifications Conductivity Range
0.2 mS/cm to 200 mS/cm
Specifications Layout
4 Electrodes and Integrated Temperature Sensor (Pt1000, Class F0.3)
Specifications Manufacturer Part Number
LFS1K0.1710.6W.B.010-6
Specifications Number Of Wires
6
Specifications Old Product Code
090.00074
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-30 to +100 ºC
Specifications Cell Constant
0.44 cm-1
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
