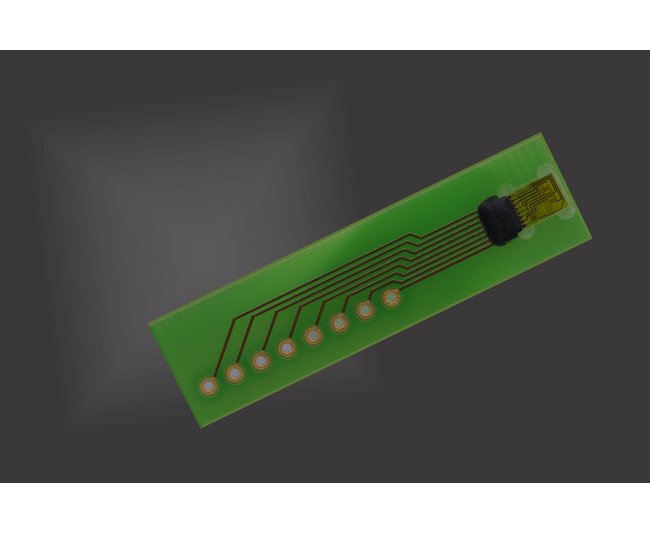

The Innovative Sensor Technology MFS02.PSTD.0 Flow Sensor sets a new standard in precision and performance. Developed by the USA Division, this sensor boasts RoHS compliance and operates flawlessly in a temperature range of -20 to +80 ºC. With fast response sensitivity and flow ranges from 0 to 150 m/s, it offers reliable data in full bridge and CTA modes. Measuring just 5.0mm x 3.4mm x 0.5mm, this sensor's PCB design ensures accurate readings every time.
Product Specifications
Dimensions Height
0.5 mm
Dimensions Length
5.0 mm
Dimensions Width
3.4 mm
Flow Range Flow Range Cta Mode
0 to 150 m/s | 0 to 10 L/min
Flow Range Flow Range Full Bridge Mode
0 to 1.5 m/s | 0 to 100 mL/min
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb H
1.0 mm
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb L
38.2 mm
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb W
10.8 mm
Specifications Connection
Bonding Pads
Specifications Manufacturer Part Number
MFS02.PSTD.0
Specifications Old Product Code
050.00266
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-20 to +80 ºC
