Innovative Sensor Technology ND1K0.520.2FW.B.007 Temperature Sensor
Innovative Sensor Technology ND1K0.520.2FW.B.007 Temperature Sensor
SKU:TEM-02c5de
Innovative Sensor Technology ND1K0.520.2FW.B.007 Temperature Sensor - Precision nickel sensor with 6180 ppm/K TCR, RoHS compliant, ideal for wide temperature range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Innovative Sensor Technology ND1K0.520.2FW.B.007 Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Technology ND1K0.520.2FW.B.007 Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

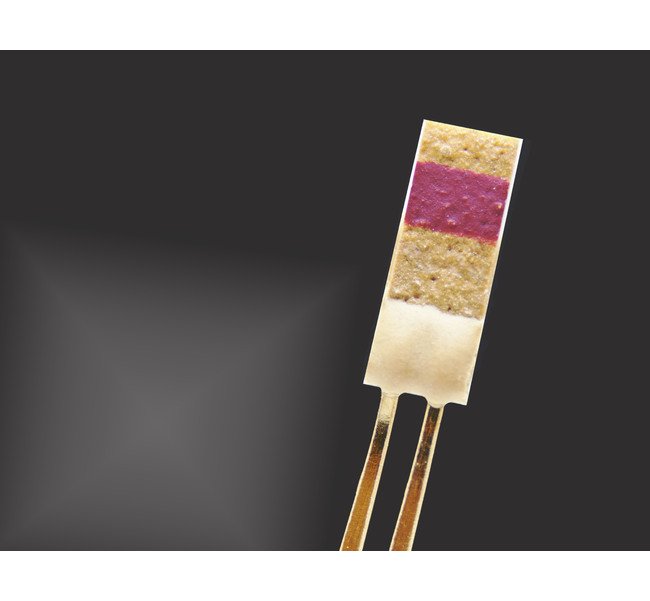

The Innovative Sensor Technology ND1K0.520.2FW.B.007 Temperature Sensor is a premium nickel sensor designed for precision temperature measurements. With a Temperature Coefficient of Resistance (TCR) of 6180 ppm/K, this sensor offers accurate readings in a wide temperature range from -60 to +200 ºC. The sensor is RoHS compliant, ensuring environmental sustainability and safety. Its gold-coated nickel wire type and German Institute for Standardisation (DIN) 4376 tolerance make it a reliable choice for demanding applications. Experience superior temperature sensing capabilities with this high-quality sensor from Innovative Sensor Technology, USA Division.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
ND1K0.520.2FW.B.007
Specifications Old Product Code
020.00348
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
6180 ppm/K
Specifications Temperature Range
-60 to +200 ºC
Specifications Tolerance
German Institute for Standardisation (DIN) 4376
Specifications Wire Height
0.2 mm
Specifications Wire Length
7 mm
Specifications Wire Type
Gold Coated Nickel (Ni) Flat
Specifications Wire Width
0.4 mm
