Innovative Sensor Technology NL1K0.520.2FW.B.007 Nickel Temperature Sensor
Innovative Sensor Technology NL1K0.520.2FW.B.007 Nickel Temperature Sensor
SKU:TEM-fd1aca
High-precision nickel temperature sensor with RoHS compliance and TCR 5000 ppm/K for accurate temperature measurement in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Innovative Sensor Technology NL1K0.520.2FW.B.007 Nickel Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Technology NL1K0.520.2FW.B.007 Nickel Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

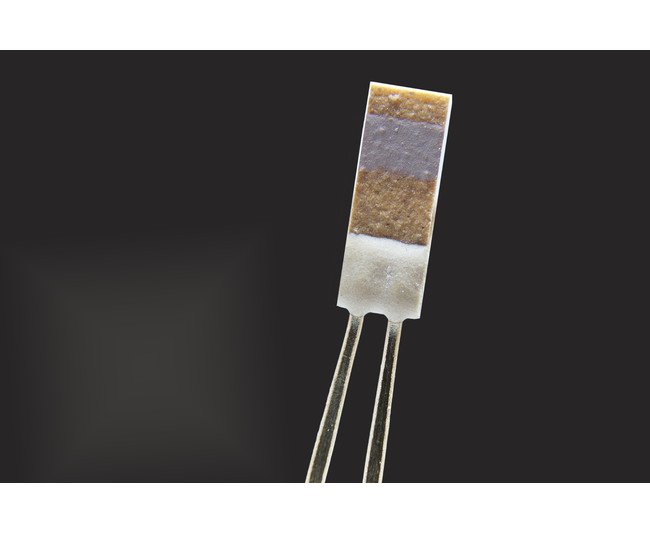

The Innovative Sensor Technology NL1K0.520.2FW.B.007 Temperature Sensor is a high-quality nickel sensor with a Temperature Coefficient of Resistance (TCR) of 5000 ppm/K, ensuring precise temperature measurement in a range from -60 to +200 ºC. With RoHS compliance and German Institute for Standardisation (DIN) 4376 tolerance, this sensor provides reliable performance. The sensor's gold-coated nickel wire type and compact dimensions of 5.0mm x 2.0mm x 1.3mm make it suitable for various industrial and institutional applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
NL1K0.520.2FW.B.007
Specifications Old Product Code
020.0035
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
5000 ppm/K
Specifications Temperature Range
-60 to +200 ºC
Specifications Tolerance
German Institute for Standardisation (DIN) 4376
Specifications Wire Height
0.2 mm
Specifications Wire Length
7 mm
Specifications Wire Type
Gold Coated Nickel (Ni) Flat
Specifications Wire Width
0.4 mm
