Innovative Sensor Technology P0K1.202.3K.A.010 Platinum RTD Temperature Sensor
Innovative Sensor Technology P0K1.202.3K.A.010 Platinum RTD Temperature Sensor
SKU:TEM-a0dcdd
Enhance monitoring precision with the Innovative Sensor Technology Platinum RTD Temperature Sensor - Reliable, Accurate, and Compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Innovative Sensor Technology P0K1.202.3K.A.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Technology P0K1.202.3K.A.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

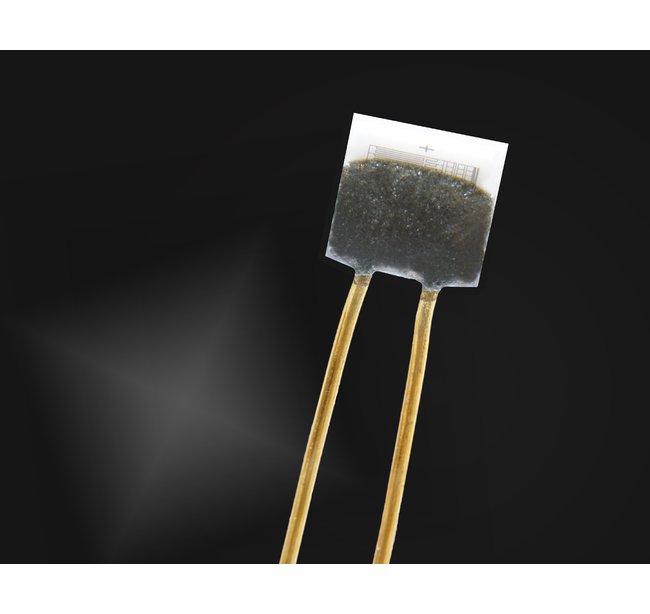

Upgrade your temperature sensing capabilities with the Innovative Sensor Technology P0K1.202.3K.A.010 Platinum RTD Temperature Sensor. This thin-film platinum 100 Ohm RTD component boasts unparalleled precision with a resistivity of 100 Ω at 0°C, a temperature coefficient of resistance of 3850 ppm/K, and a wide temperature range of -200 to +300°C. Compliant with IEC 60751 Class A standards, this sensor features a gold-coated nickel wire for optimal performance. Enhance your monitoring accuracy and reliability in various industrial applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.202.3K.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +300 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Gold Coated Nickel (Ni)
