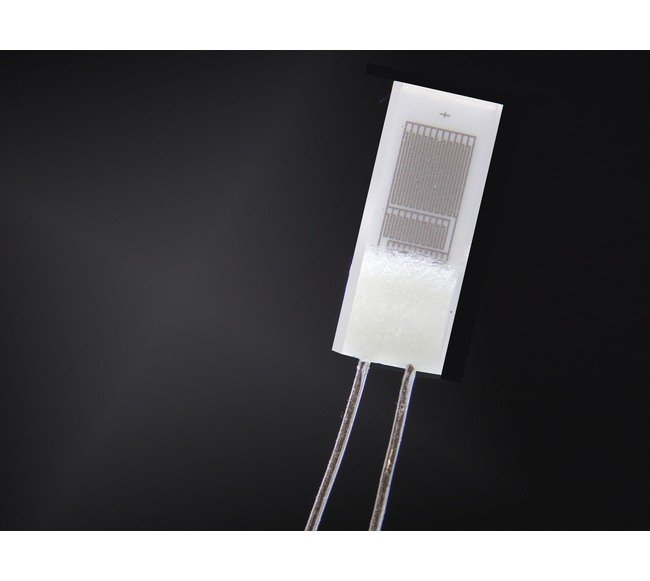

Innovative Sensor Technology P0K1.520.6W.Y.010 Platinum RTD Temperature Sensor
Innovative Sensor Technology P0K1.520.6W.Y.010 Platinum RTD Temperature Sensor
SKU:TEM-ddd2b4
Enhance your temperature detection systems with the precise Innovative Sensor Technology P0K1.520.6W.Y.010 Platinum RTD Temperature Sensor.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Innovative Sensor Technology P0K1.520.6W.Y.010 Platinum RTD Temperature Sensor
$59.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Technology P0K1.520.6W.Y.010 Platinum RTD Temperature Sensor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your temperature detection systems with the Innovative Sensor Technology P0K1.520.6W.Y.010 Temperature Sensor. This thin-film platinum 100 Ohm RTD component offers precise readings in a wide temperature range from -200 to +600 ºC. With a wire type of Platinum/Nickel and compliance with RoHS standards, this sensor ensures both accuracy and environmental safety. The TCR of 3850 ppm/K and a tolerance of 1/3 IEC 60751 F0.1 guarantee reliable performance. Measuring 5.0mm x 2.0mm x 1.3mm, this sensor is compact yet powerful, making it ideal for industrial and research applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.520.6W.Y.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
1/3 International Electrotechnical Commission (IEC) 60751 F0.1 (Class Y)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
