Innovative Sensor Technology P1K0.232.6W.B.010 Temperature Sensor
Innovative Sensor Technology P1K0.232.6W.B.010 Temperature Sensor
SKU:TEM-1ecbfa
Enhance monitoring precision with the Innovative Sensor Technology Temperature Sensor, offering wide temperature range and high accuracy for industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Innovative Sensor Technology P1K0.232.6W.B.010 Temperature Sensor
$59.99
Quantity: 1
Claim Your Seller Account
Innovative Sensor Technology P1K0.232.6W.B.010 Temperature Sensor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

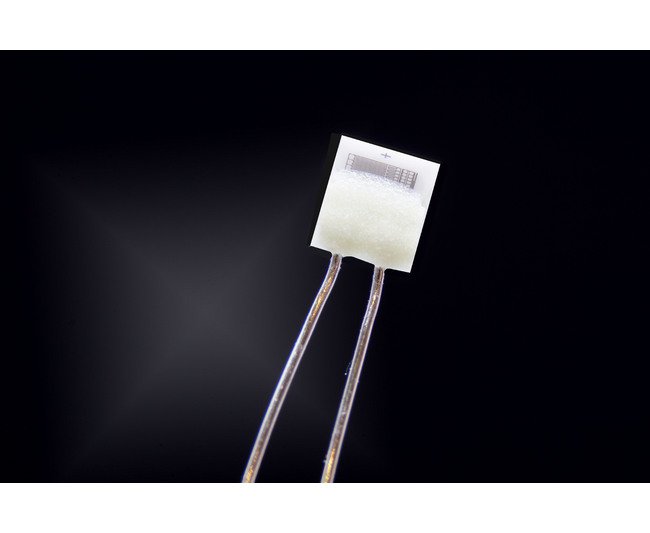

Enhance your temperature monitoring with the Innovative Sensor Technology P1K0.232.6W.B.010 Temperature Sensor. This standard thin-film platinum 1000 Ohm RTD component ensures precise temperature readings with a resistivity of 1000 Ω, Temperature Coefficient of Resistance of 3850 ppm/K, and a wide temperature range from -200 to +600 ºC. With IEC 60751 F0.3 (Class B) tolerance and RoHS compliance, this sensor offers reliability and accuracy for various applications. The platinum/nickel wire construction (0.2 mm diameter, 10 mm length) combined with compact dimensions (2.3mm x 2.0mm x 1.3mm) makes it ideal for industrial and research settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P1K0.232.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
