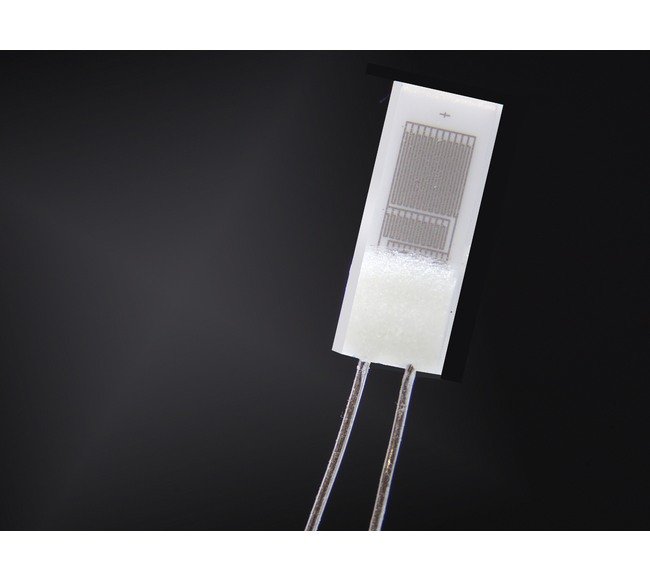

The Innovative Sensor Technology P1K0.520.6W.B.010 is a high-quality thin-film platinum 1000 Ohm RTD temperature sensor designed for precise and reliable temperature measurements. With RoHS compliance, IEC Class B tolerance, and a wide temperature range of -200 to +600 ºC, this sensor ensures accurate readings in various industrial applications. Featuring a platinum/nickel wire type and compact dimensions of 5.0mm x 2.0mm x 1.3mm, it offers exceptional durability and compatibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P1K0.520.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
