Inovatec 1020mm Centrifugal Barrel Finishing System with Manual Discharge
Inovatec 1020mm Centrifugal Barrel Finishing System with Manual Discharge
SKU:MAS-c1e6f2
Enhance efficiency and precision with the Inovatec 1020mm Centrifugal Barrel Finishing System - ideal for small batch finishing and achieving superior surface finishes.
Regular price
$7,599.99
Regular price
Sale price
$7,599.99
Unit price
per
Initiate Order
Inovatec 1020mm Centrifugal Barrel Finishing System with Manual Discharge
$7,599.99
Quantity: 1
Claim Your Seller Account
Inovatec 1020mm Centrifugal Barrel Finishing System with Manual Discharge
$7,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

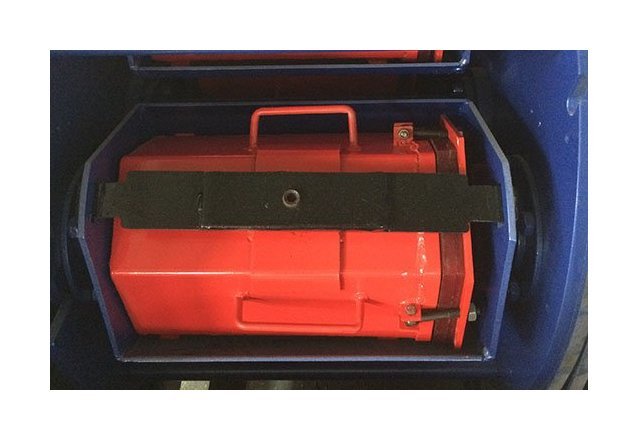

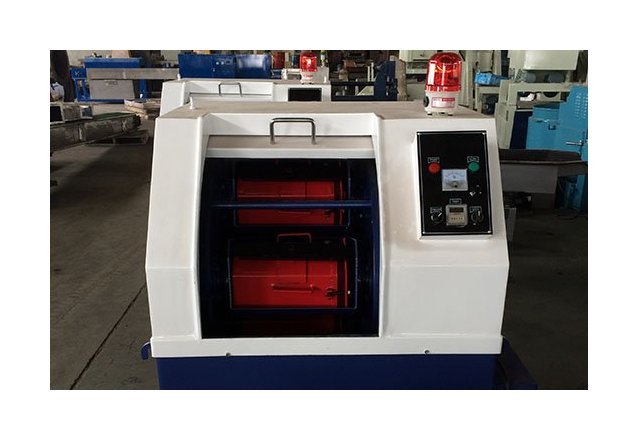

The Inovatec 1020mm Centrifugal Barrel Finishing System is a high-energy mass finishing equipment designed for efficiency and precision. With a compact footprint, this system features four small barrels, each with independent space and removable PU inserts, perfect for separate small batches finishing. The machine allows for continuous operation by alternating between two sets of barrels, significantly reducing idle time. Equipped with digital timer control, adjustable speed settings, and forward and backward tumbling functionality, this system offers versatility and consistency in achieving desired finishes, whether for aggressive material removal or mirror polishing. Ideal for polishing delicate parts, jewelry components, medical devices, aerospace engine blades, and more, the CB30A series ensures a smooth, even surface finish that surpasses hand polishing results.
Product Specifications
Additional Information
Either aggressive material removal or mirror polishing, CB30A series machine can achieve the desired finish in a shorter time. After finishing, the entire parts’ surface is smooth and even in all directions, and it hard to achieve by hand polishing.
Applications
Small size delicate partsJewelry parts PolishingMedical deviceDental partsAerospace engine bladeAcrylic and rubber partsPearl PolishingWatch accessories polishing
Barrel Dimensions Barrel Height C
301 mm
Barrel Dimensions Barrel Length A
170 mm
Barrel Dimensions Barrel Width B
98 mm
Dimensions Height
1270 mm
Dimensions Length
1020 mm
Dimensions Width
990 mm
Features

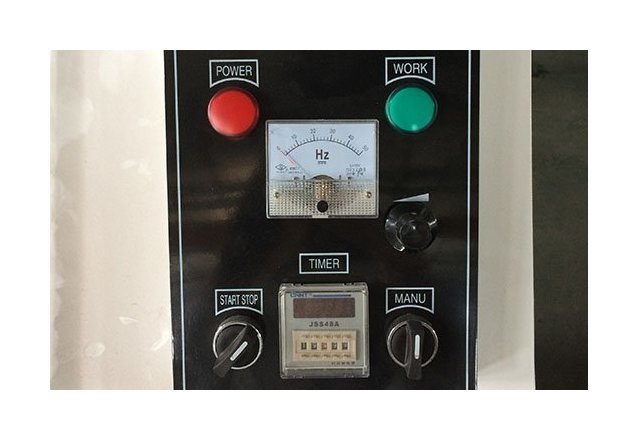

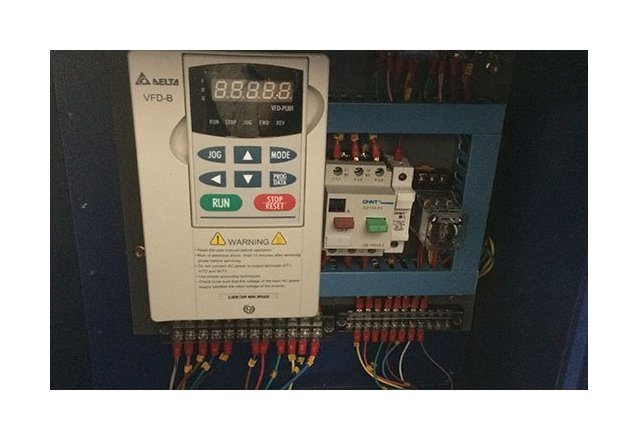

Digital timer controlAdjustable speed controlForward and backward tumbling4 barrels with removable PU insertAutomatic media & parts discharge
Specifications Motor Power
2.2 kW
Specifications Radius
215 mm
Specifications Speed
0 to 170 rpm
Specifications Volume
30 L
Specifications Weight
485 kg
