Inovatec 1320mm Vibratory Separator
Inovatec 1320mm Vibratory Separator
SKU:MAS-9fbf1d
Enhance your workshop with Inovatec's efficient 1320mm Vibratory Separator. Save time and energy with rapid and effective part-abrasive separation.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Inovatec 1320mm Vibratory Separator
$1,599.99
Quantity: 1
Claim Your Seller Account
Inovatec 1320mm Vibratory Separator
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your workshop with Inovatec's 1320mm Vibratory Separator. This portable separator features dual-layered sieve technology, a replaceable screen, and a variable frequency converter for efficient and customizable separation. Ideal for mass finishing operations, it saves time and energy while ensuring effective separation of finished parts from abrasives. Enhance your workflow with this versatile and user-friendly vibratory separator.
Product Specifications
Additional Information

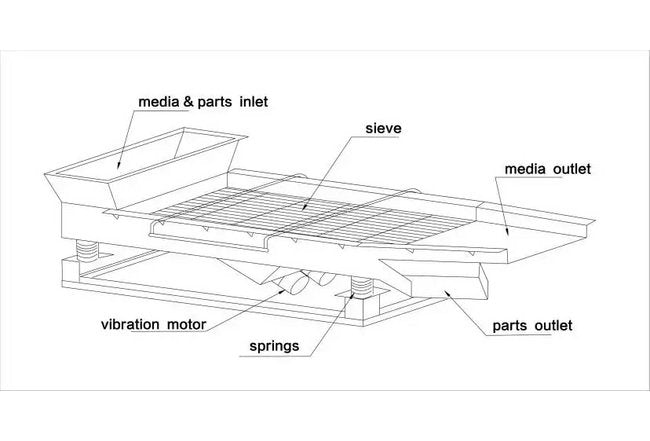

This tool is used by mass finishing operators to separate finishing media from parts. Both finishing media and parts are poured out to this separation sieve. The finishing media falls through the screen and parts land on the sieve.Operators can then collect and reuse finishing media because abrasives are not one-off materials.The vibratory separator is a simple yet effective tool for your vibratory finishing machine. It makes your parts or finishing media selection easier. You can also use it to separate small-sized finishing media from your components.
Dimensions Height
800 mm
Dimensions Length
1320 mm
Dimensions Width
622 mm
Features And Applications
Rapid and effective separation of finished parts from abrasivesReplaceable separating screenSaves you a significant amount of time and energyUseful for sieving small-size abrasivesNot restricted to bowl vibratory finishing machines alone. You can also customize it to fit other mass finishing machines.
Optional Settings
Dual-layered sieve to effectively sieve out small-size finishing mediaVariable frequency converter to alter with your machine’s vibration amplitudeA separation panel with uniformly punched holes
Specifications Motor Power
0.125 kW
Specifications Number Of Motors
2
Specifications Weight
90 kg
