Inovatec 200L Vibratory Dryer
Inovatec 200L Vibratory Dryer
SKU:DRY-7c0888
Efficiently dry, clean, and polish workpieces with Inovatec's 200L Vibratory Dryer, designed for industrial precision.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Inovatec 200L Vibratory Dryer
$4,999.99
Quantity: 1
Claim Your Seller Account
Inovatec 200L Vibratory Dryer
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

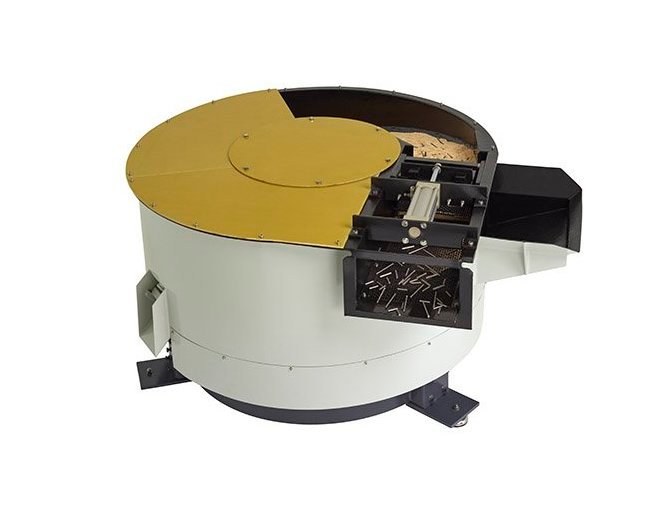

The Inovatec 200L Vibratory Dryer is a cutting-edge solution for drying and finishing workpieces in industrial settings. With a 200 L capacity and advanced heating elements, this dryer efficiently absorbs water, cleans media residue, and imparts a polished finish. It offers temperature control, dustproof cover for noise reduction, and variable frequency drive for vibration force adjustment. Ideal for batch or continuous feed operations, it ensures optimal separation of parts and media, meeting the stringent requirements of institutional buyers.
Product Specifications
Additional Information
As vibratory finishing is a wet process, you will need to use a vibratory dryer to dry the workpieces completely. Usually, a wide loading chute allows the processed workpieces to enter the drying chamber. Various inlet sizes are available as per your requirements. The extended separation sieve inside the bowl results in 100% separation of parts and media.
Dimensions Length
1420 mm
Dimensions Width
1270 mm
Features And Applications
Temperature Control in the bowlThe Dustproof cover which also reduces noiseVariable frequency drive to adjust vibration forceContinuous mode and Batch mode available
Optional Settings
Pneumatic control separation flapPU lining available for delicate parts with hot blasting air
Specifications Capacity
200 L
Specifications Heating Power
6 kW
Specifications Motor Power
3 kW
Specifications Process Bowl Width
320 mm
Specifications Weight
550 kg
