Inovatec 2900mm Vibratory Separator
Inovatec 2900mm Vibratory Separator
SKU:MAS-511119
Portable, efficient Inovatec 2900mm Vibratory Separator for quick, accurate separation of finishing media & parts.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Inovatec 2900mm Vibratory Separator
$2,499.99
Quantity: 1
Claim Your Seller Account
Inovatec 2900mm Vibratory Separator
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

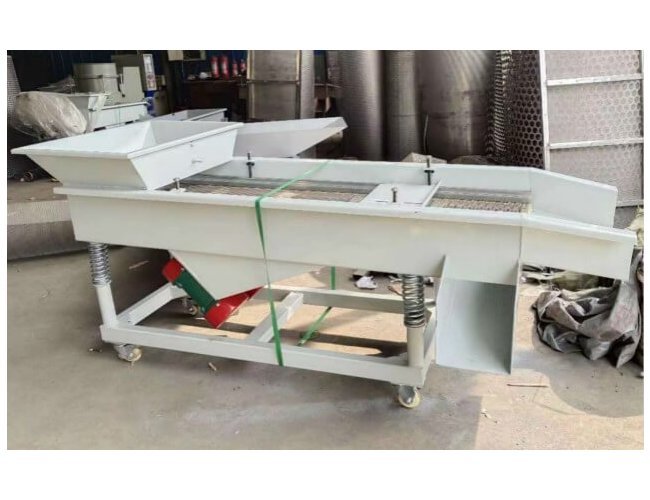

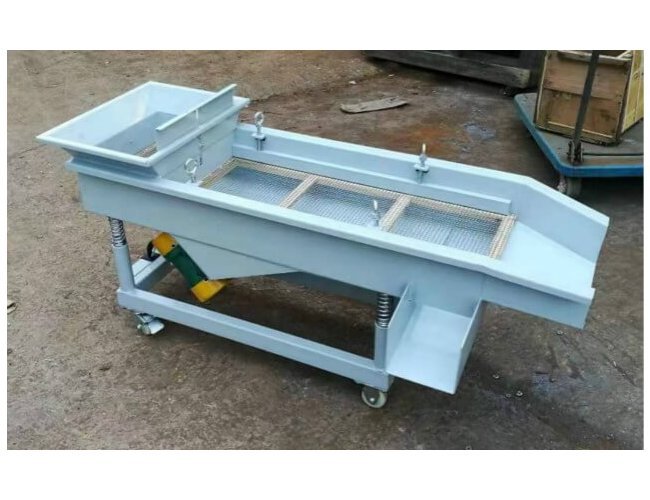

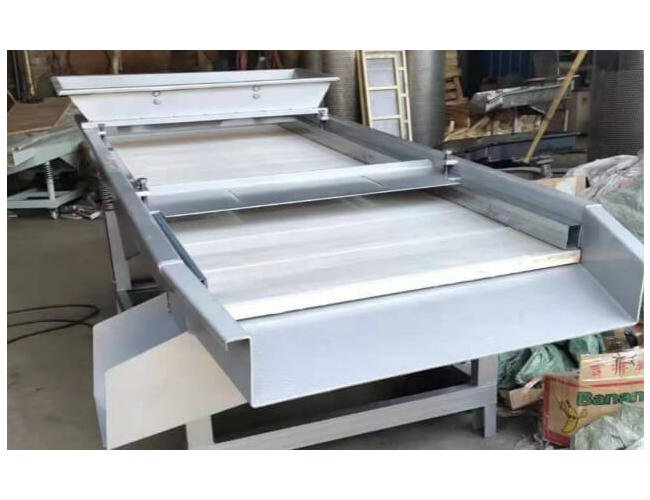

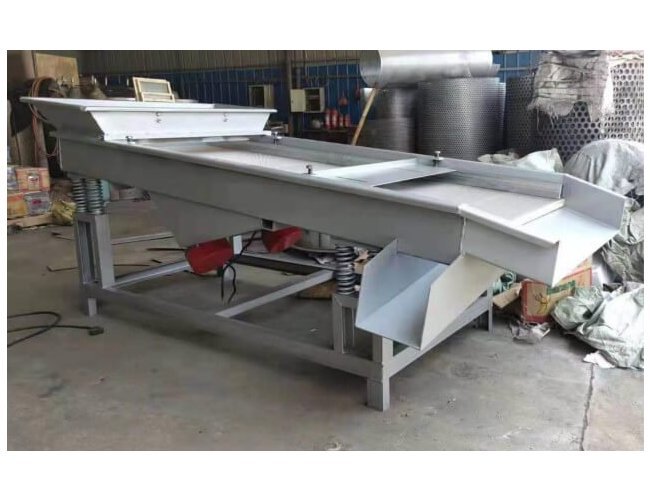

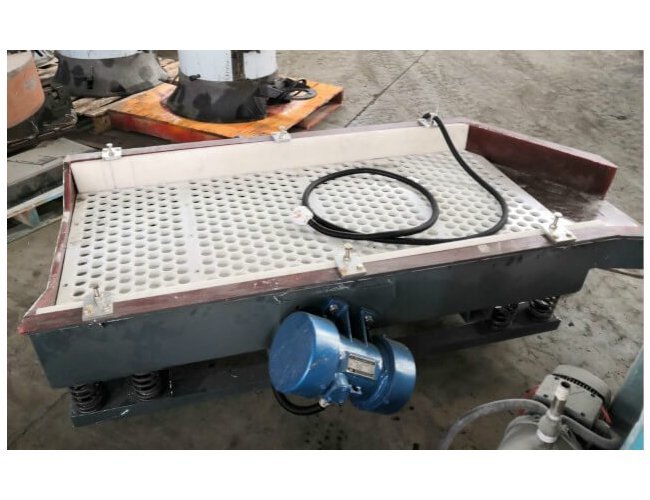

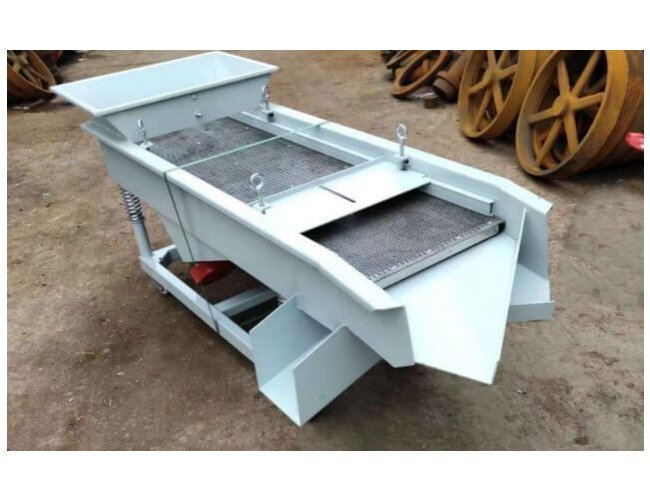

The Inovatec 2900mm Vibratory Separator is a portable and efficient tool, featuring dual-layered sieve technology for precise separation of finishing media from parts. With a replaceable separating screen and a variable frequency converter, this separator offers rapid and effective sieving, saving time and energy for mass finishing operators. Ideal for small-size abrasives, this versatile tool ensures optimal performance across various mass finishing machines, making it a valuable addition to any workshop.
Product Specifications
Additional Information

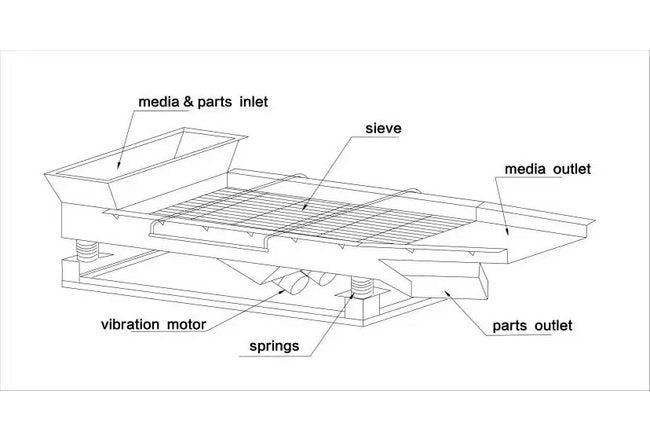

This tool is used by mass finishing operators to separate finishing media from parts. Both finishing media and parts are poured out to this separation sieve. The finishing media falls through the screen and parts land on the sieve.Operators can then collect and reuse finishing media because abrasives are not one-off materials.The vibratory separator is a simple yet effective tool for your vibratory finishing machine. It makes your parts or finishing media selection easier. You can also use it to separate small-sized finishing media from your components.
Dimensions Height
880 mm
Dimensions Length
2900 mm
Dimensions Width
910 mm
Features And Applications
Rapid and effective separation of finished parts from abrasivesReplaceable separating screenSaves you a significant amount of time and energyUseful for sieving small-size abrasivesNot restricted to bowl vibratory finishing machines alone. You can also customize it to fit other mass finishing machines.
Optional Settings

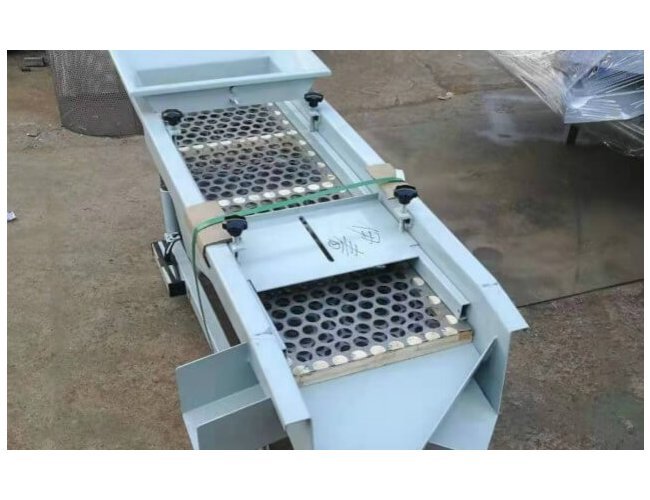

Dual-layered sieve to effectively sieve out small-size finishing mediaVariable frequency converter to alter with your machine’s vibration amplitudeA separation panel with uniformly punched holes
Specifications Motor Power
0.37 kW
Specifications Number Of Motors
2
Specifications Weight
500 kg
