Inovatec 500L Tub Vibrator - TVB(A) Series
Inovatec 500L Tub Vibrator - TVB(A) Series
SKU:MAS-09a47f
High-performance 500L Tub Vibrator designed for efficient tumbling of large and heavy parts. Features durable construction and advanced PU lining for superior finishing results.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec 500L Tub Vibrator - TVB(A) Series
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec 500L Tub Vibrator - TVB(A) Series
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

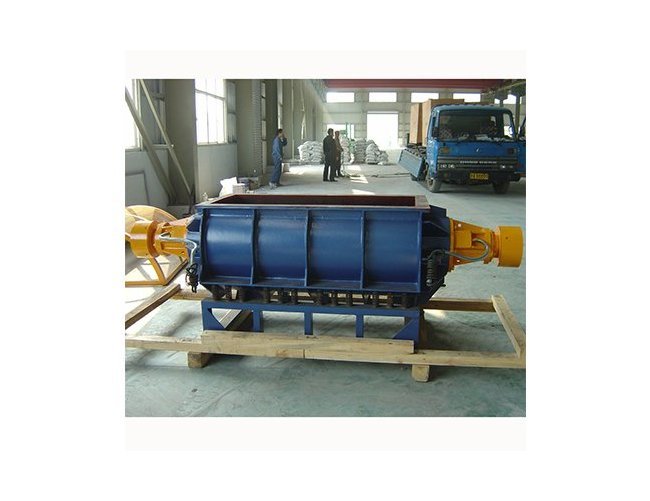

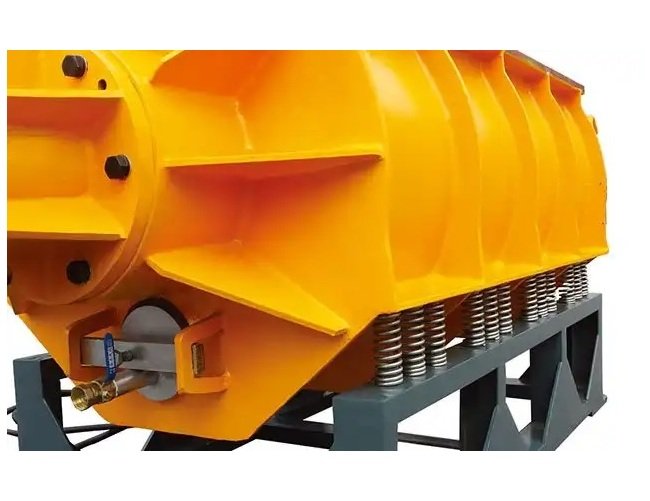

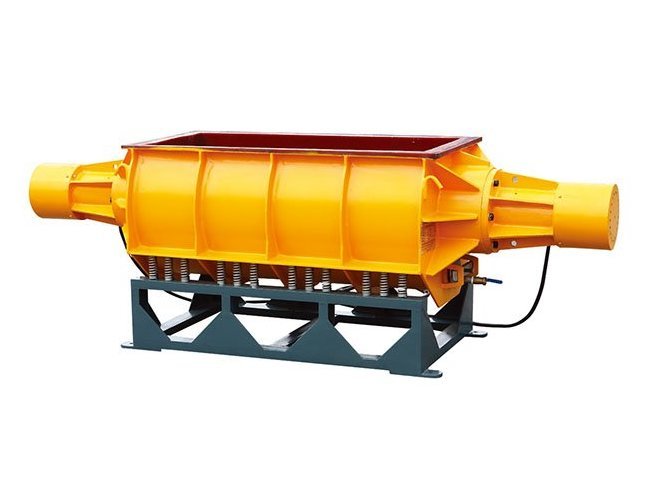

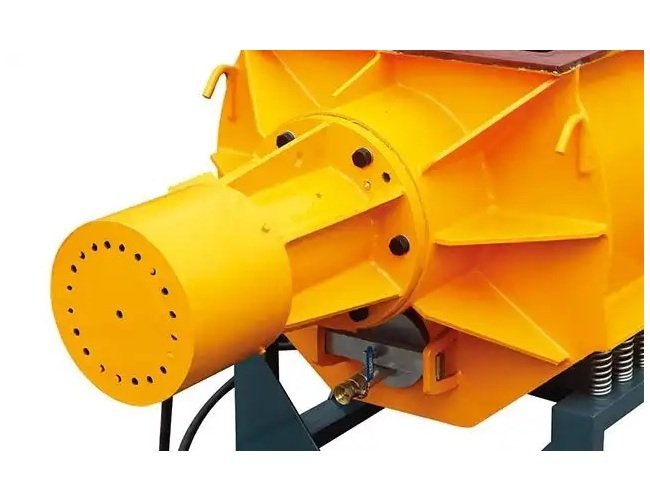

The Inovatec 500L Tub Vibrator from the TVB(A) Series is an industrial-grade vibratory finishing machine designed for large and heavy parts tumbling. With a 500-liter total volume and a reinforced curved wall, this machine ensures efficient and fast processing of parts like ceramic coated headers, exhaust pipes, and engine housing. The 16mm polyurethane lining enables effective ball burnishing processes, while the heavy gauge all welded steel construction of the TVB(A) model ensures durability and longevity. Equipped with features like a digital process timer, low profile design, stress-relieved build, and wear-resistant PU lining from Dow Chemicals, this tub vibrator is both reliable and high-performing, making it an ideal choice for industrial applications.
Product Specifications
Features And Applications

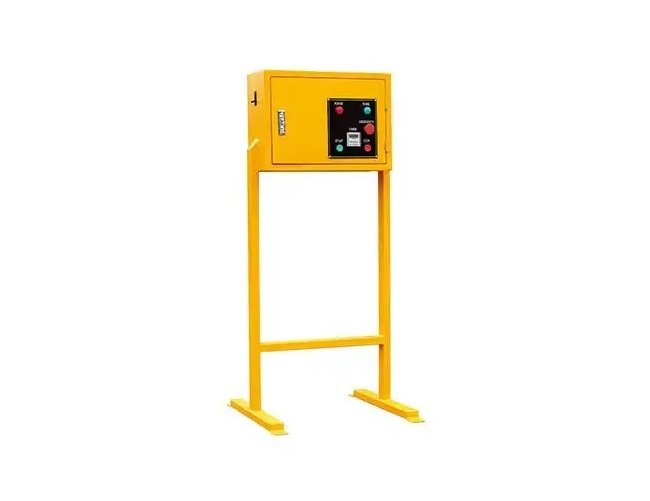

Digital process timerLow profile designStress relieved and enhanced with blastingWear resistant PU lining from Dow Chemicals
Maximum Overall Dimensions Maximum Overall Height
920 mm
Maximum Overall Dimensions Maximum Overall Length
2870 mm
Maximum Overall Dimensions Maximum Overall Width
880 mm
Optional Settings
Soundproof coverVariable frequency driveCompound dosing pumpEnhanced motorsControl box hang on the wall or standing on the floor
Specifications Chamber Diameter C
670 mm
Specifications Chamber Height B
625 mm
Specifications Chamber Length A
1310 mm
Specifications Feeding Entry Width D
524 mm
Specifications Motor Power
2.2 kW
Specifications Number Of Motors
2
Specifications Polyurethane Pu Lining Thickness
16 mm
Specifications Total Volume
500 L
Specifications Type
Tub
Specifications Weight
1000 kg
