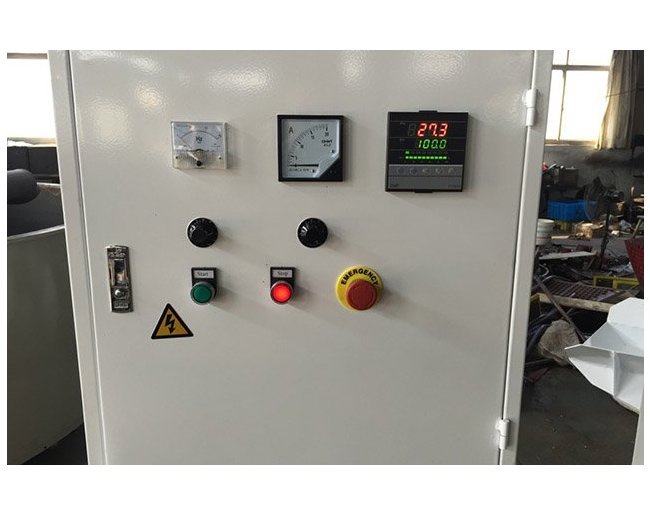

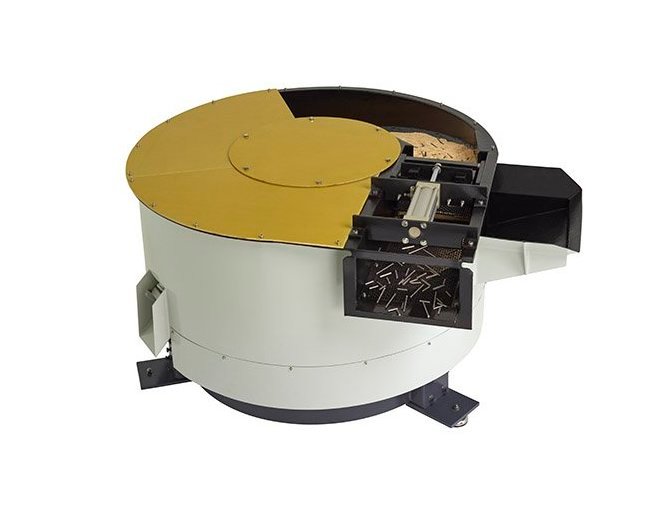

The Inovatec 600 Liter Vibratory Dryer is a high-performance solution for drying, cleaning, and polishing workpieces in vibratory finishing processes. With heating elements beneath the vibratory bowl, this dryer efficiently removes moisture and media residue while imparting a polished finish. Equipped with innovative features like temperature control, variable frequency drive, and dustproof cover, it offers precise drying and noise reduction. Ideal for institutional and government buyers, it meets strict industry standards for quality and efficiency.
Product Specifications
Additional Information

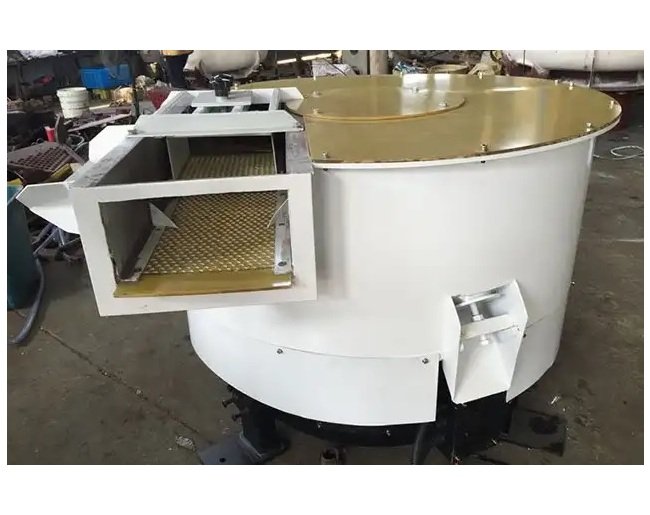

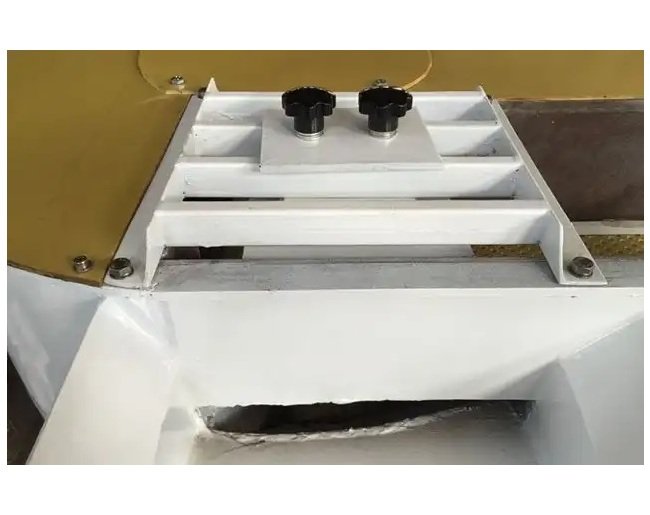

As vibratory finishing is a wet process, you will need to use a vibratory dryer to dry the workpieces completely. Usually, a wide loading chute allows the processed workpieces to enter the drying chamber. Various inlet sizes are available as per your requirements. The extended separation sieve inside the bowl results in 100% separation of parts and media.
Dimensions Length
1960 mm
Dimensions Width
1700 mm
Features And Applications
Temperature Control in the bowlThe Dustproof cover which also reduces noiseVariable frequency drive to adjust vibration forceContinuous mode and Batch mode available
Optional Settings
Pneumatic control separation flapPU lining available for delicate parts with hot blasting air
Specifications Capacity
600 L
Specifications Heating Power
13.2 kW
Specifications Motor Power
5.5 kW
Specifications Process Bowl Width
400 mm
Specifications Weight
900 kg
