Inovatec 80L Centrifugal Barrel Finishing Machine
Inovatec 80L Centrifugal Barrel Finishing Machine
SKU:MAS-597e7b
Achieve high-quality finishes efficiently with Inovatec's 80L Centrifugal Barrel Finishing Machine. Ideal for diverse applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Inovatec 80L Centrifugal Barrel Finishing Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
Inovatec 80L Centrifugal Barrel Finishing Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

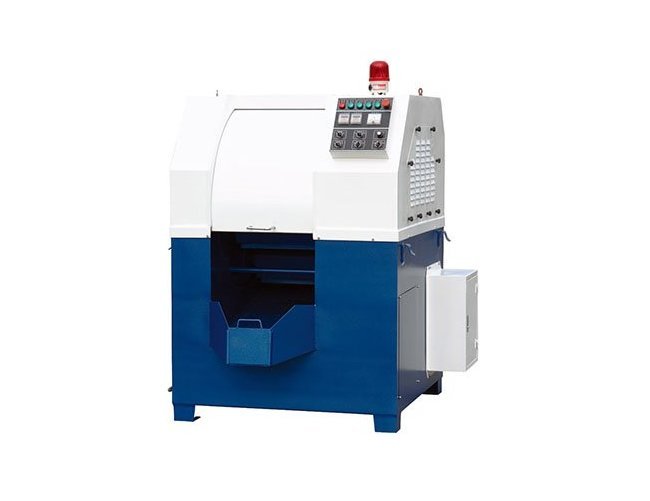

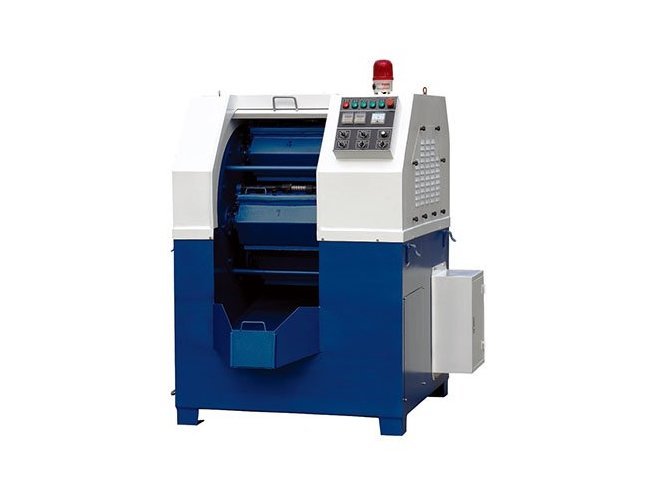

The Inovatec 80L Centrifugal Barrel Finishing Machine from the CB(D) Series is a high-energy mass finishing solution suitable for various applications. With a volume of 80 liters and a length of 1580mm, this machine offers efficient tumbling processes, featuring digital timer control, adjustable speed, four fixed barrels, and automatic media discharge. Ideal for deburring small delicate parts, finishing 3D printed components, polishing medical devices, dental parts, jet engine blades, acrylic, rubber, and large casting components. This machine ensures isotropic finishes, meeting stringent quality standards with smooth, even surfaces and a fast turnaround time.
Product Specifications
Additional Information
Either aggressive material removal or mirror polishing, CB series machine can achieve isotropic finish quickly. After finishing, the entire parts’ surface is smooth and even in all directions, and it is hard to achieve by hand polishing.
Applications
Small size delicate parts deburring3D printed parts finishingMedical deviceDental partsJet engine bladeAcrylic and rubber partsBig casting components
Barrel Dimensions Barrel Height C
445 mm
Barrel Dimensions Barrel Length A
224 mm
Barrel Dimensions Barrel Width B
126 mm
Dimensions Height
1810 mm
Dimensions Length
1580 mm
Dimensions Width
1660 mm
Features

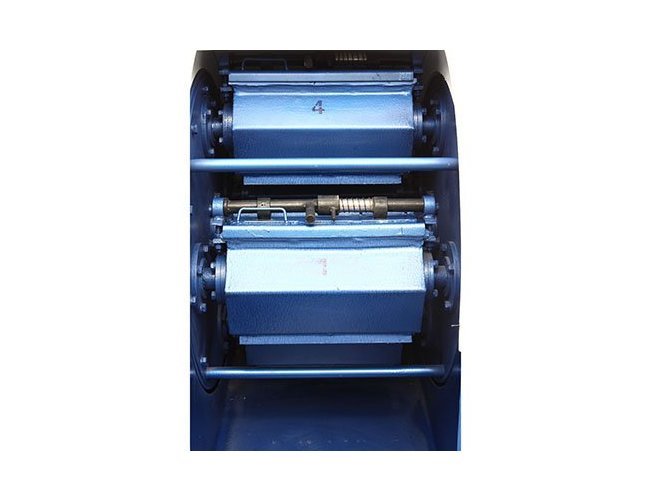

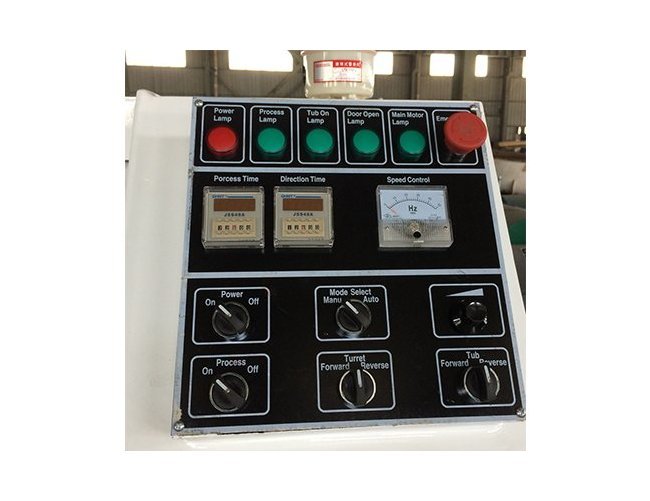

Digital timer control - Keep track of your time with its programmable digital timer control. It will save your more time in the long run.Adjustable speed control - Control the speed of the machine. Keeping the materials from damage.Forward and backward tumbling4 fixed barrels set - It can process your metals fast and effective.Media and parts mass automatic discharge - You can process large number of metals all at once.

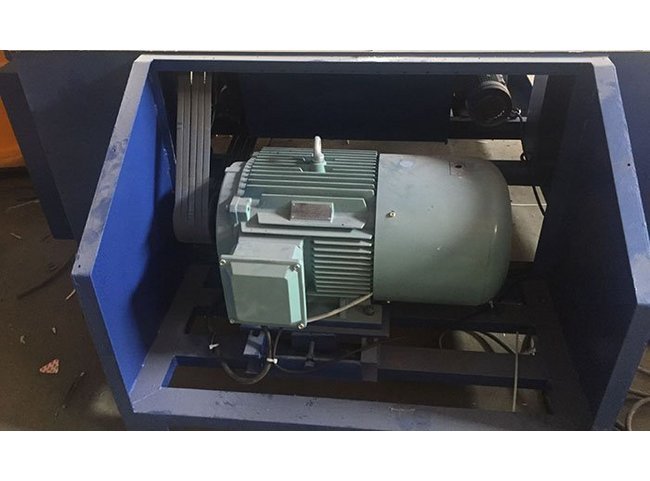

Specifications Motor Power
5.5 kW
Specifications Radius
350 mm
Specifications Speed
0 to 140 rpm
Specifications Volume
80 L
Specifications Weight
1100 kg
