Inovatec 820L Industrial Vibratory Tumbler

Name: Inovatec 820L Industrial Vibratory Tumbler
Brand: Inovatec Machinery
SKU: MAS-7ae534
Price: 9999.99 USD
Availability: OutOfStock

SKU:MAS-7ae534

Boost efficiency with the Inovatec 820L Industrial Vibratory Tumbler. Curved bowl design for faster, effective results. Ideal for de-burring, polishing, cleaning various materials.

$9,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

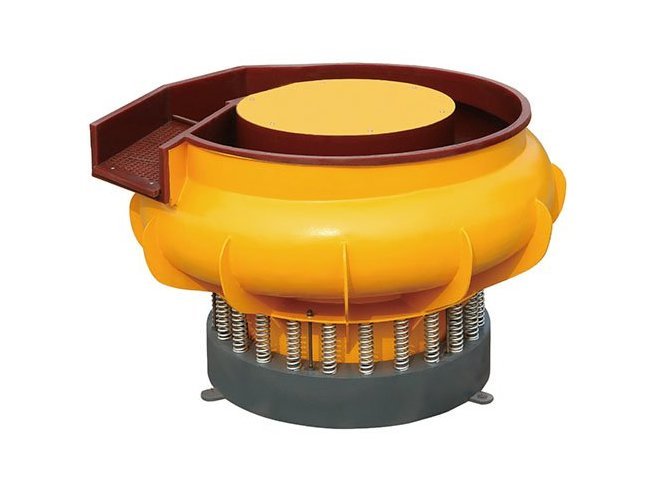

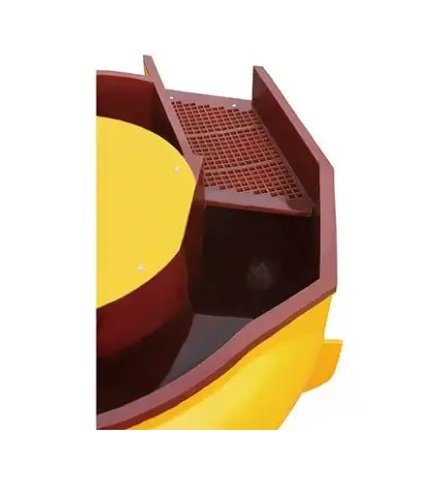

Enhance your mass finishing processes with the Inovatec 820 Liter Industrial Vibratory Tumbler from the VBS(A) Series. Designed for efficiency, this tumbler features a curved bowl design that ensures optimal tumbling pressure for quicker and more effective results. The extended separation sieve allows for easy media and workpiece separation, while the adjustable sieve holes cater to varying media sizes. With a durable PU lining from Dow Chemicals and a heavy-duty vibration motor, this tumbler offers reliability and longevity, making it ideal for de-burring, polishing, and cleaning a variety of materials such as aluminum, brass, copper, stainless steel, and iron.

Product Specifications

Additional Information

Hot-poured PU and a heavy-duty vibration motor are the primary components in our high-end industrial vibratory tumblers. We make our polyurethane using raw materials sourced from Dow Chemicals, USA.We use an automatic casting machine to solidify the PU, then cure it at a controlled temperature for 24 hours. We use heavy-duty motor from Shanghai Vibration Co. With proper maintenance, it can last more than five years.

Features

You can use Inovatec industrial vibratory tumbler VBS(A) series for de-burring, polishing, cleaning, and edge radiusing of aluminum, brass, copper, stainless steel, and iron workpieces. This processing machine provides uniform surface finishing for all types of workpieces.

Features And Applications

Digital process timerLow profile designStress relieved and enhanced with blastingDefault manual parts media separationWear resistant PU lining from Dow Chemicals

Optional Settings

Sound CoverCompound Dosing PumpPneumatic flap controlVariable Frequency DrivesControl box standing on the floor or hang on the wall

Specifications Bowl Tunnel Width C Diameter

445 mm

Specifications Machine Height H1

1500 mm

Specifications Maximum Overall Dimension A

2100 mm

Specifications Media Unload Height H3

550 mm

Specifications Motor Installation Tube Diameter B

1060 mm

Specifications Motor Power

11.0 kW

Specifications Total Volume

820 L

Specifications Type

Tumbler

Specifications Unload Height H2

1220 mm

Specifications Unload Width

450 mm

Specifications Weight

2470 kg
