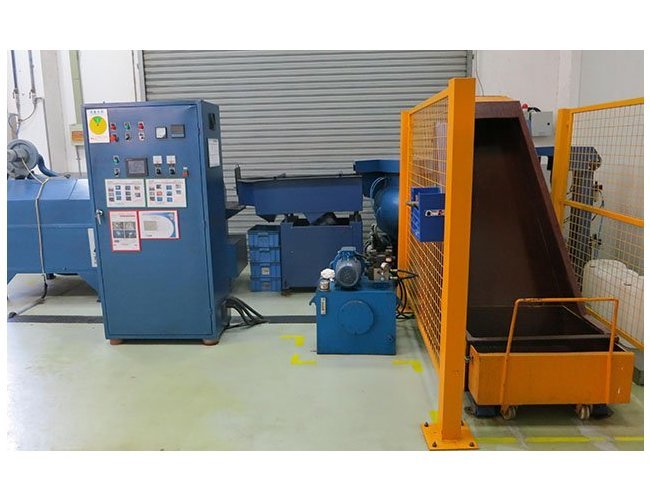

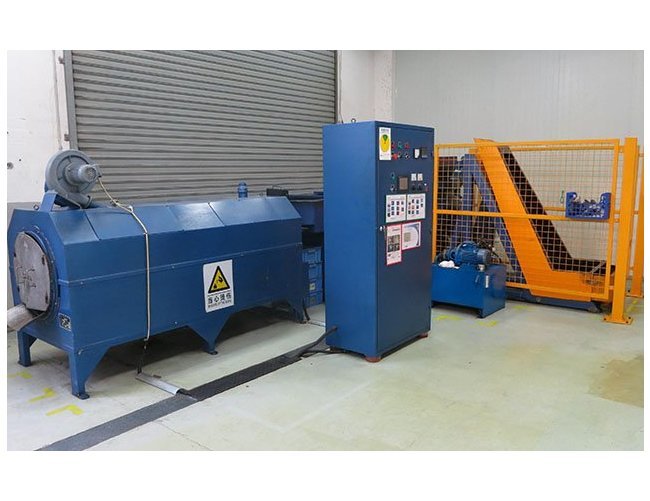

Enhance your industrial finishing processes with the Inovatec Automatic Grinding and Heating Finishing Systems. This well-designed system offers seamless separation capabilities, enabling fully automated or semi-automated operations. With a focus on user convenience, this system eliminates the need for labor-intensive tasks. Featuring a vibratory finishing machine that efficiently deburrs and polishes parts, along with a drying unit for impeccable finishing, this system ensures high productivity and cost-effectiveness. The integrated PLC control system allows for easy operation by a single worker, making it an ideal solution for automotive deburring and polishing requirements.
Product Specifications
Additional Information
The parts loading time, vibratory tumbling time, rotary dryer heating time and temperature all can be integrated into the PLC control system. Therefore, one worker can operate the whole system.This grinding and heating production vibratory finishing system is user-friendly, cost-effective and high productivity.Grinding and heating vibratory finishing line is a well designed automotive deburring and polishing system. One worker can operate this mass finishing equipment with a cost-effective performance.
Dimensions Height
3310 mm
Dimensions Length
5000 mm
Dimensions Width
4300 mm
Dryer Dimensions Dryer Height
1640 mm
Dryer Dimensions Dryer Length
2700 mm
Dryer Dimensions Dryer Width
1000 mm
Electric Control Box Dimensions Electric Control Box Height
1800 mm
Electric Control Box Dimensions Electric Control Box Length
900 mm
Electric Control Box Dimensions Electric Control Box Width
500 mm
Features And Applications
Batch processing of partsWorkpieces deburringWorkpieces cleaningDrying and tumbling at the same time for different batches
Grinding Machine Dimensions Grinding Machine Height
1670 mm
Grinding Machine Dimensions Grinding Machine Length
2300 mm
Grinding Machine Dimensions Grinding Machine Width
1740 mm
Media Feeder Dimensions Media Feeder Height
1800 mm
Media Feeder Dimensions Media Feeder Length
1970 mm
Media Feeder Dimensions Media Feeder Width
850 mm
Optional Settings
Soundproof coverPLC control box with Siemens touchscreenProgrammable temperature controlSludge treatment system
Sewage Water Container Dimensions Sewage Water Container Height
480 mm
Sewage Water Container Dimensions Sewage Water Container Length
1000 mm
Sewage Water Container Dimensions Sewage Water Container Width
500 mm
Specifications Gross Weight
3500 kg
Specifications Hydraulic Pump Motor Power
3.0 kW
Specifications Main Motor Power
7.5 kW
Specifications Rotary Dryer Heating Motor Power
12 kW
Specifications Rotary Dryer Motor Power
0.75 kW
Specifications Sewage Pump Motor Power
0.25 kW
