Inovatec CB40 High Energy Centrifugal Barrel Tumbler
Inovatec CB40 High Energy Centrifugal Barrel Tumbler
SKU:MAS-726828
Enhance productivity with Inovatec CB40 High Energy Centrifugal Barrel Tumbler - perfect for delicate parts & efficient finishing!
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Inovatec CB40 High Energy Centrifugal Barrel Tumbler
$12,999.99
Quantity: 1
Claim Your Seller Account
Inovatec CB40 High Energy Centrifugal Barrel Tumbler
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

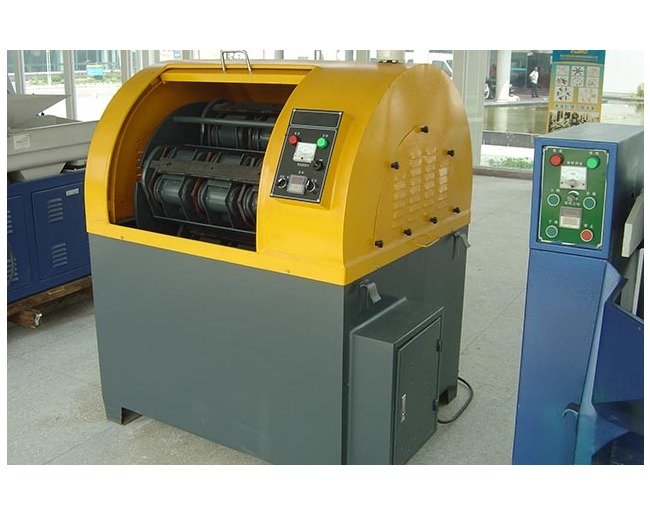

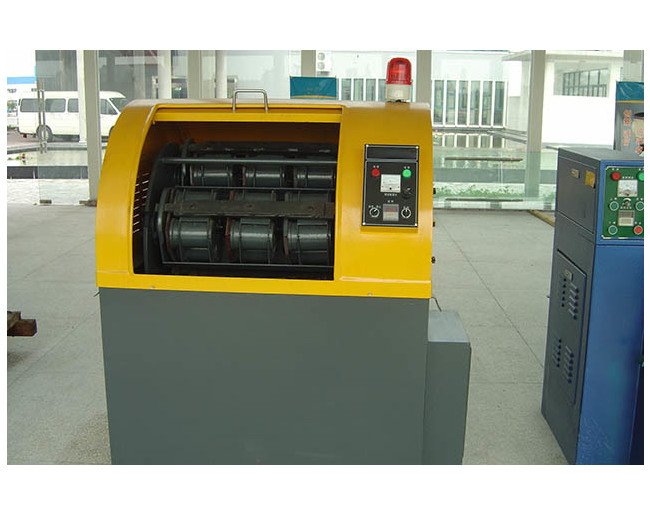

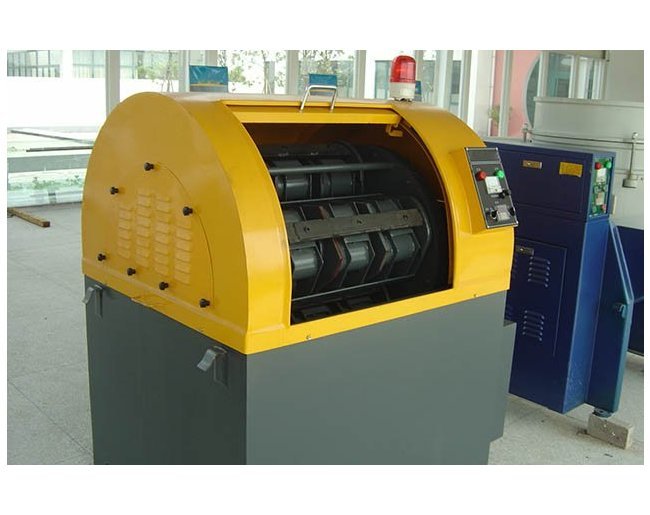

The Inovatec CB40 High Energy Centrifugal Barrel Tumbler is a top-of-the-line mass finishing machine designed for efficiency and precision. Featuring 48 small, removable barrels with independent spaces and PU inserts, it is ideal for delicate parts such as jewelry, medical devices, aerospace components, and more. With a motor power of 4.0 kW and adjustable speed control, this machine offers superior performance for both aggressive material removal and mirror polishing. Prepare for reduced idle time by purchasing an additional set of barrels, allowing seamless operation for continuous production. The CB40 series ensures fast and reliable finishing results, making it a must-have for industrial applications.
Product Specifications
Additional Information
If you purchase another set of 48 barrels, when the machine runs one set of the barrels, your operator can prepare another set at the same time. This can drastically reduce idle time of the machine.Either aggressive material removal or mirror polishing, the CB40 series machine can achieve the desired finish in a short time.
Applications
Small size delicate partsJewelry parts polishingMedical deviceDental partsAerospace engine bladeAcrylic and rubber parts
Dimensions Height
1400 mm
Dimensions Length
1425 mm
Dimensions Width
1000 mm
Features

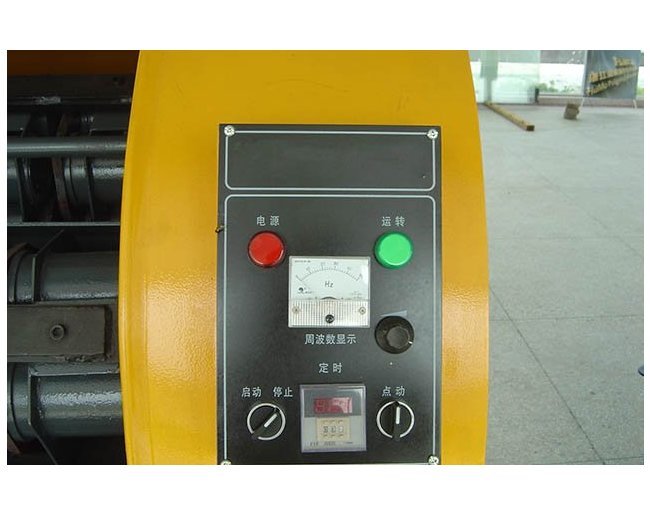

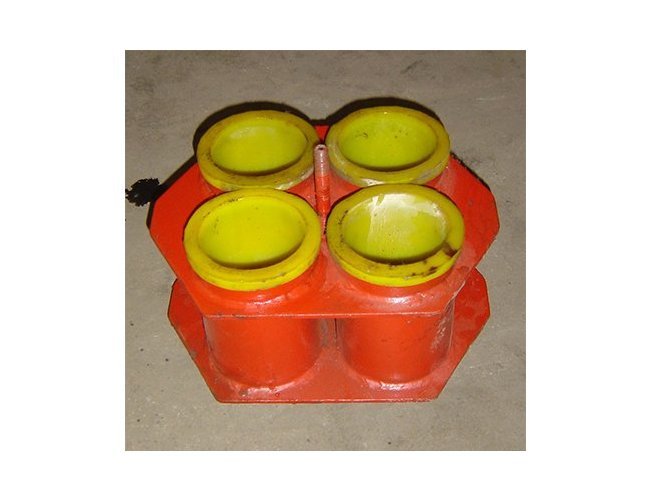

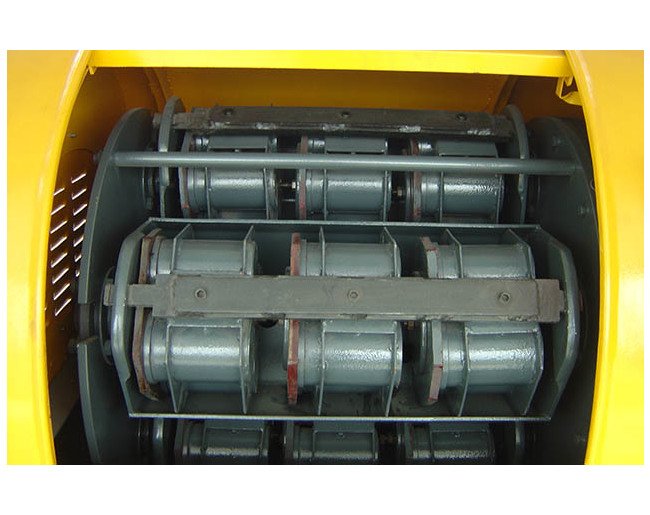

Digital timer controlAdjustable speed controlForward and backward tumbling48 small barrel with removable PU insert
Specifications Barrel Diameter A B C
85 x 145 mm
Specifications Barrel Number
48 pieces
Specifications Capacity
40 L
Specifications Motor Power
4.0 kW
Specifications Radius
244 mm
Specifications Speed
0 to 220 rpm
Specifications Weight
800 kg
