Inovatec CB(D) Series 320L Centrifugal Barrel Finishing Machine
Inovatec CB(D) Series 320L Centrifugal Barrel Finishing Machine
SKU:MAS-044452
Achieve efficient mass finishing with the Inovatec CB(D) Centrifugal Barrel Machine - perfect for deburring delicate parts & achieving mirror-polished finishes quickly.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Inovatec CB(D) Series 320L Centrifugal Barrel Finishing Machine
$18,999.00
Quantity: 1
Claim Your Seller Account
Inovatec CB(D) Series 320L Centrifugal Barrel Finishing Machine
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

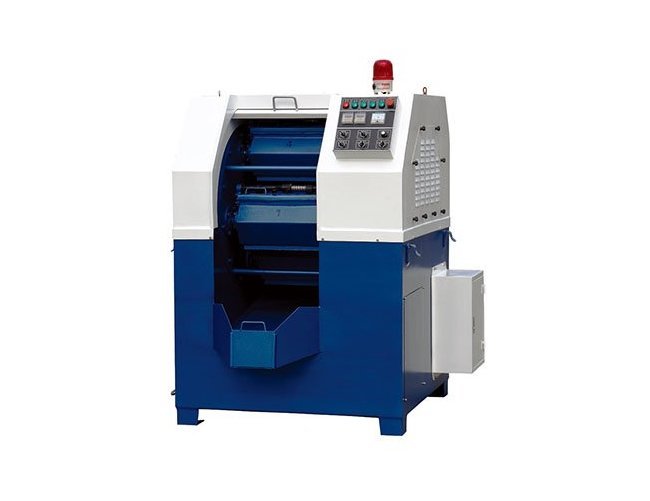

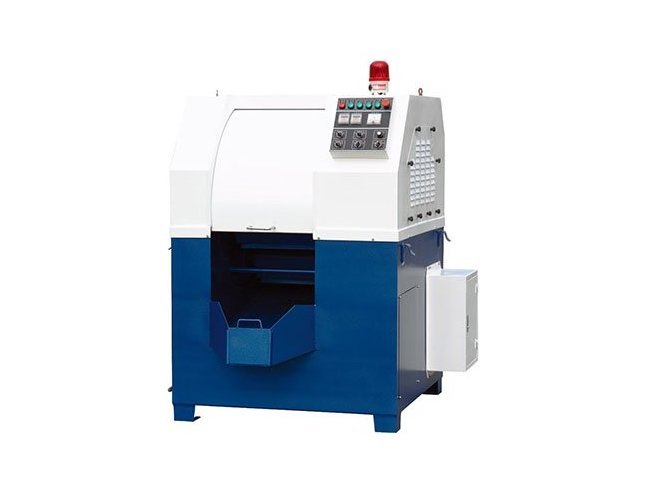

The Inovatec CB(D) Series 320L Centrifugal Barrel Finishing Machine with Automatic Unloading is designed for efficient high-energy mass finishing. With a volume of 320 liters and a length of 1680mm, this machine boasts a powerful 11kW motor and advanced features such as digital timer control and adjustable speed. It is ideal for deburring delicate parts, finishing 3D printed components, medical devices, dental parts, jet engine blades, acrylic, rubber parts, and large casting components. Whether you need aggressive material removal or mirror polishing, this machine delivers isotropic finishes quickly, making it a must-have for industrial applications.
Product Specifications
Additional Information
Either aggressive material removal or mirror polishing, CB series machine can achieve isotropic finish quickly. After finishing, the entire parts’ surface is smooth and even in all directions, and it is hard to achieve by hand polishing.
Applications
Small size delicate parts deburring3D printed parts finishingMedical deviceDental partsJet engine bladeAcrylic and rubber partsBig casting components
Barrel Dimensions Barrel Height C
600 mm
Barrel Dimensions Barrel Length A
371 mm
Barrel Dimensions Barrel Width B
371 mm
Dimensions Height
1850 mm
Dimensions Length
1680 mm
Dimensions Width
2200 mm
Features

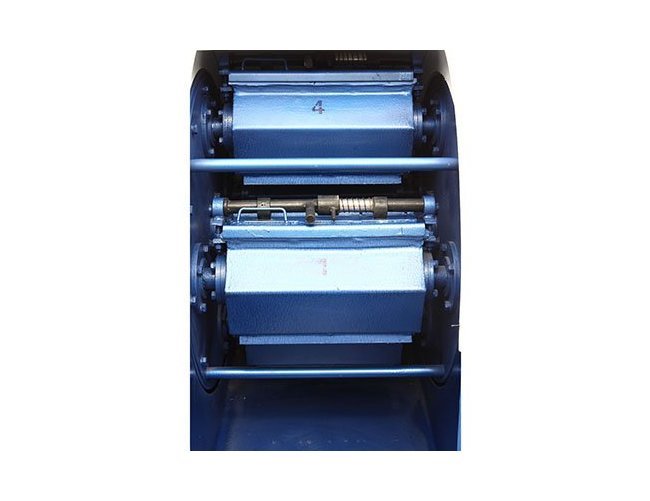

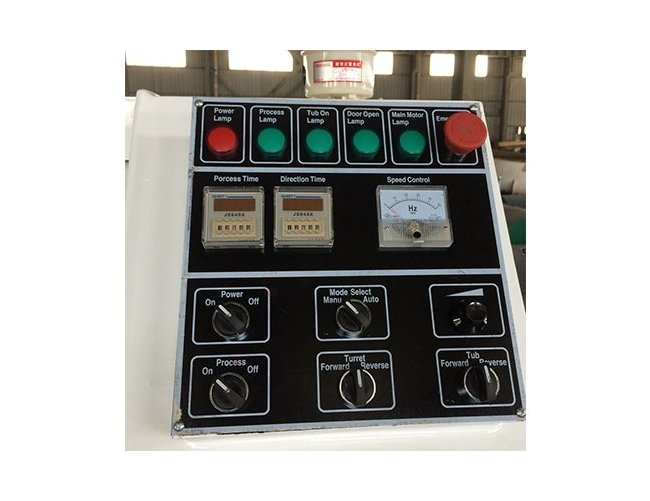

Digital timer control - Keep track of your time with its programmable digital timer control. It will save your more time in the long run.Adjustable speed control - Control the speed of the machine. Keeping the materials from damage.Forward and backward tumbling4 fixed barrels set - It can process your metals fast and effective.Media and parts mass automatic discharge - You can process large number of metals all at once.

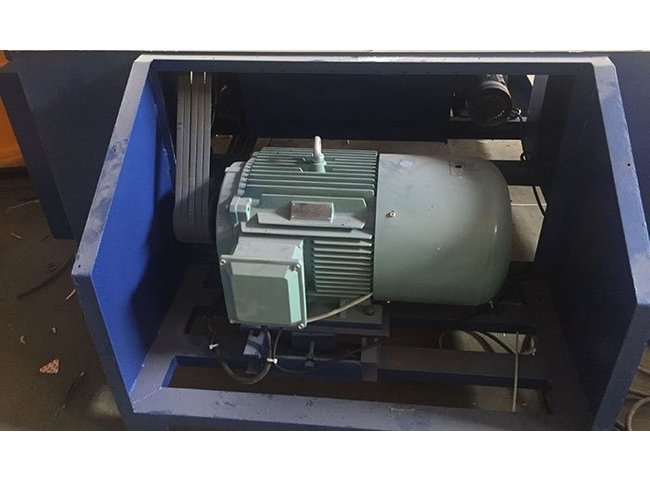

Specifications Motor Power
11 kW
Specifications Radius
446 mm
Specifications Speed
0 to 88 rpm
Specifications Volume
320 L
Specifications Weight
2800 kg
