Inovatec CD 1740mm Centrifugal Disk Finishing Machine
Inovatec CD 1740mm Centrifugal Disk Finishing Machine
SKU:MAS-7908d7
Achieve fast, efficient small parts finishing with the Inovatec CD 1740mm Centrifugal Disk Finishing Machine ideal for stampings, castings, and machined parts.
Regular price
$6,599.99
Regular price
Sale price
$6,599.99
Unit price
per
Initiate Order
Inovatec CD 1740mm Centrifugal Disk Finishing Machine
$6,599.99
Quantity: 1
Claim Your Seller Account
Inovatec CD 1740mm Centrifugal Disk Finishing Machine
$6,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

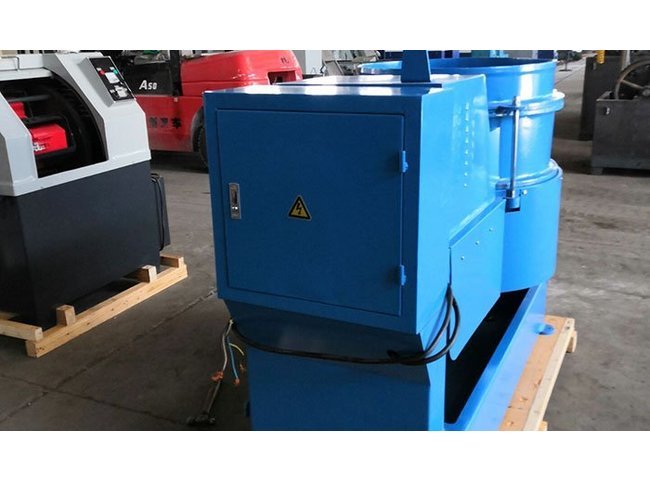

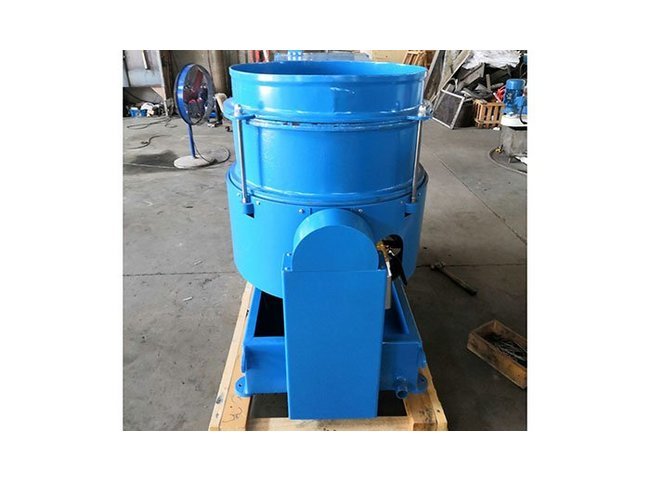

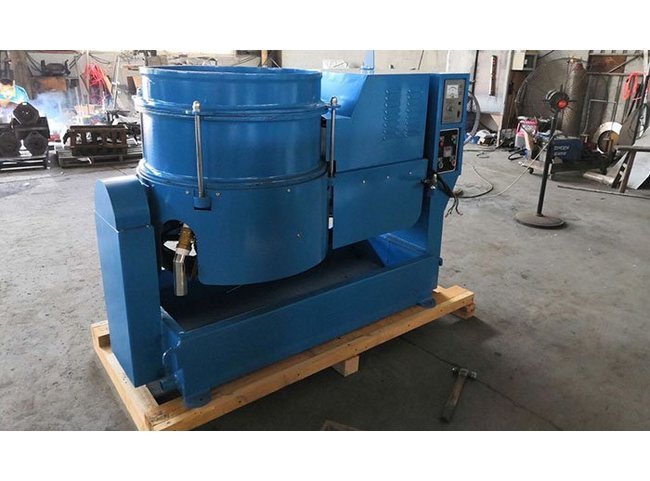

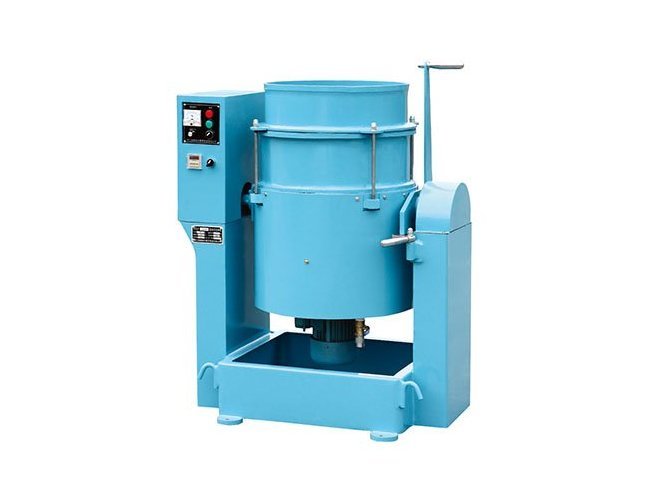

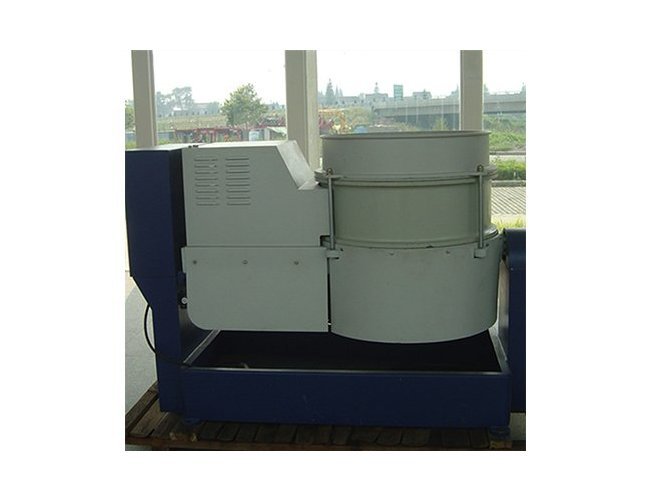

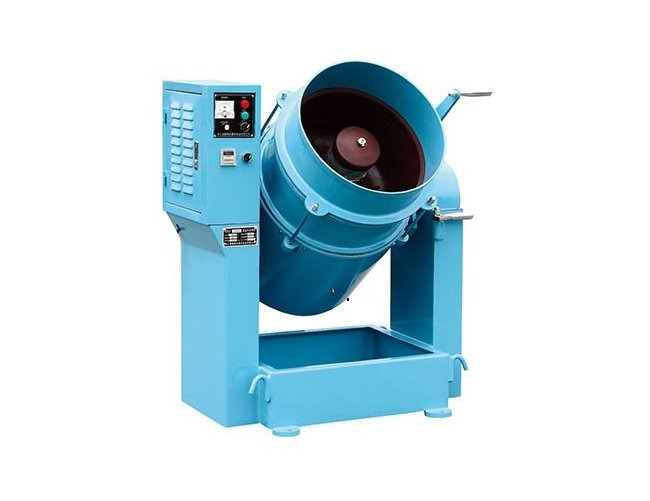

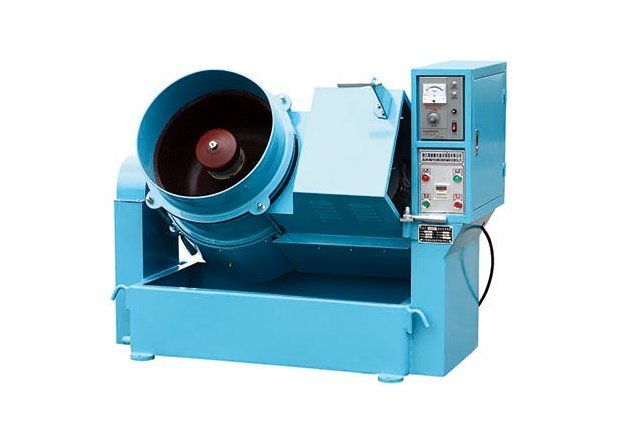

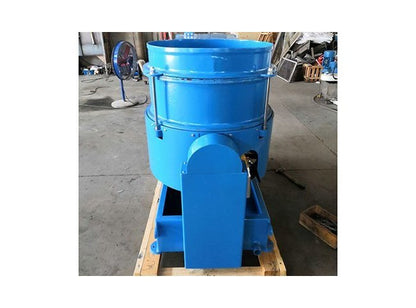

The Inovatec CD Series 1740mm Centrifugal Disk Finishing Machine with Manual Discharge offers efficiency and cost-effectiveness for small batch processing of smaller parts. With a capacity of 120L and a motor power of 4kW, this machine provides high-energy disc finishing technology that is up to 10 times faster than traditional vibratory finishing machines. Its compact design, adjustable speed settings, and optional features like process timer setting and noise cover make it versatile for various finishing tasks, from aggressive deburring to luster polishing. Ideal for stampings, castings, and machined parts, this machine ensures quality results while saving time and labor costs.
Product Specifications
Applications
Stampings, castings or machined parts finishingParts with size around 150 mm or smallerParts with thickness 1 mm and aboveCoin blank polishingZamak belt buckle polishingPlastic eyeglass frame polishing
Dimensions Height
1470 mm
Dimensions Length
1740 mm
Dimensions Width
900 mm
Features
Compact design and easy to handleProcess timer settingContinuous speed adjustmentOptional processing barrel unloading and dischargeOptional forward and backward movementVariable speed converterOptional noise coverOptional dosing pump
Specifications Capacity
120 L
Specifications Chamber Diameter
640 mm
Specifications Motor Power
4 kW
Specifications Polyurethane Pu Thickness
26 mm
Specifications Speed
50 to 160 rpm
Specifications Weight
600 kg
