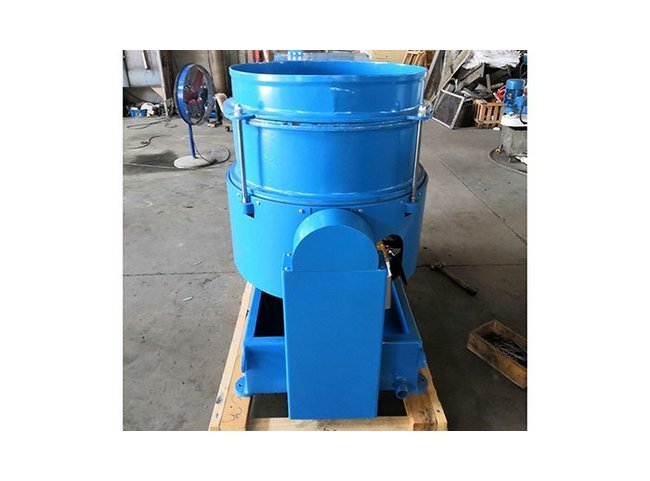

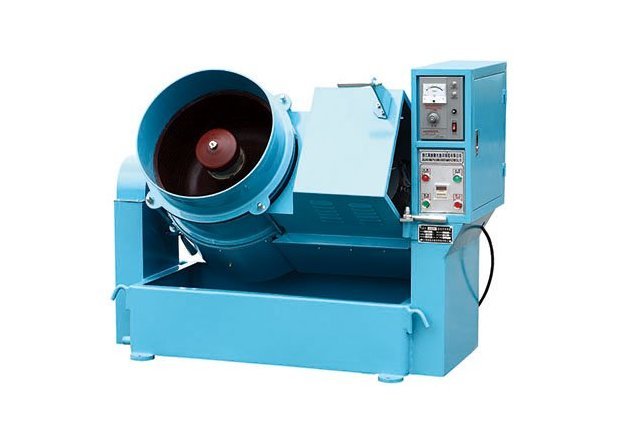

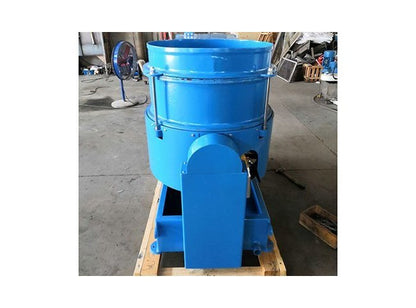

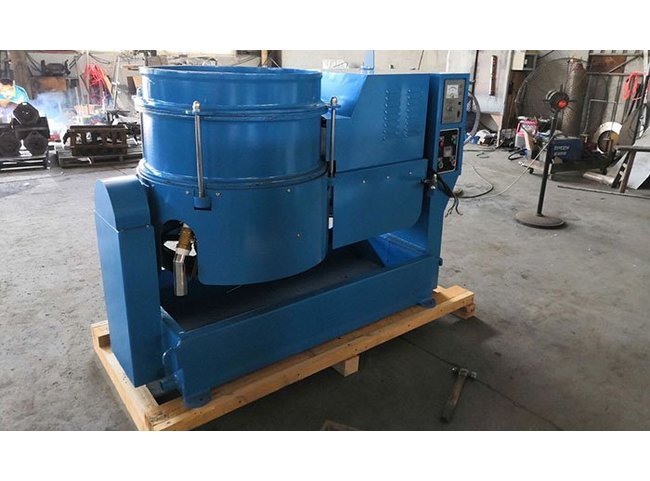

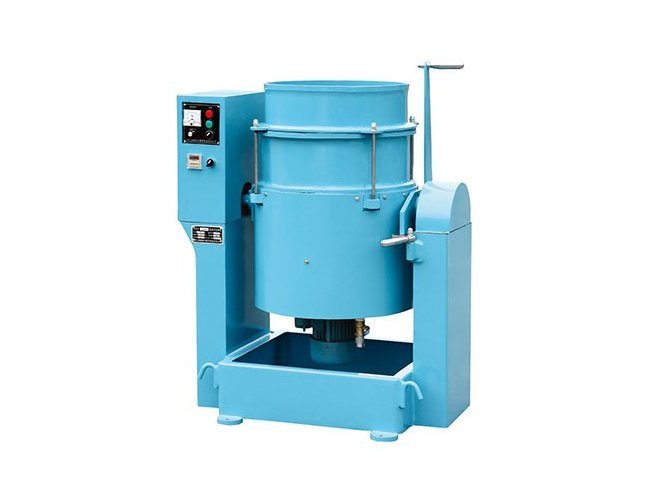

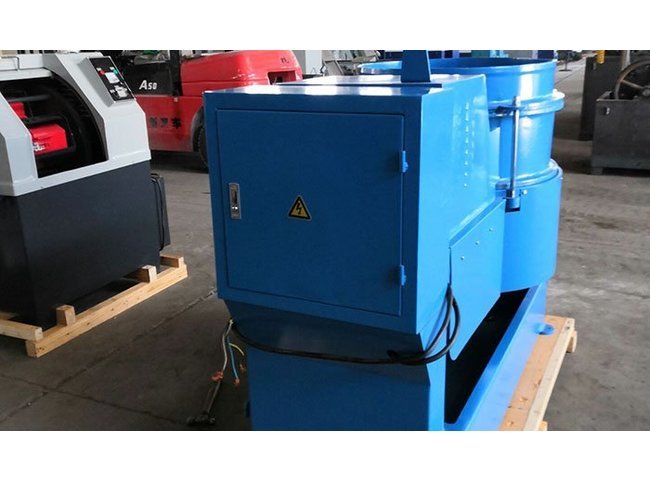

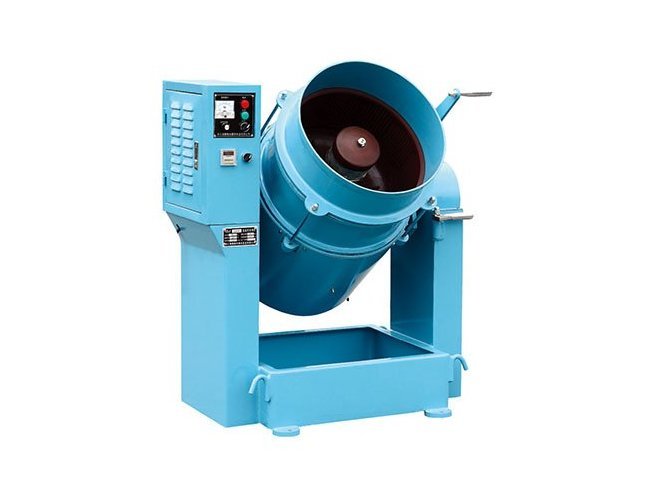

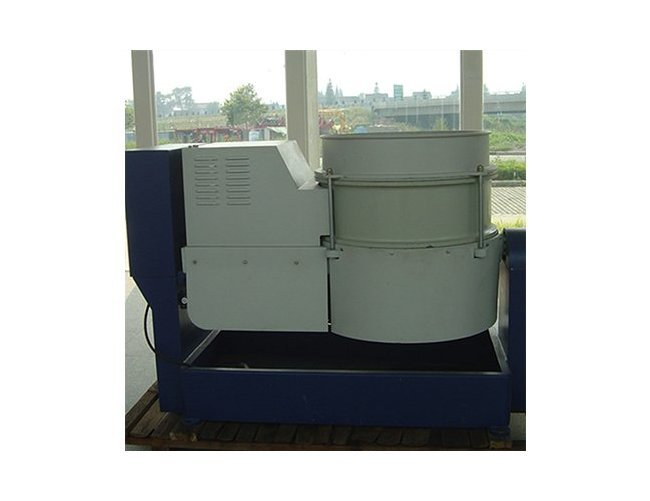

Inovatec CD Series 1000mm Centrifugal Disk Finishing Machine with Manual Discharge
Inovatec CD Series 1000mm Centrifugal Disk Finishing Machine with Manual Discharge
SKU:MAS-c4ba02
Efficiently process small parts with the Inovatec CD Series 1000mm Centrifugal Disk Finishing Machine for optimal results.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Inovatec CD Series 1000mm Centrifugal Disk Finishing Machine with Manual Discharge
$2,999.99
Quantity: 1
Claim Your Seller Account
Inovatec CD Series 1000mm Centrifugal Disk Finishing Machine with Manual Discharge
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inovatec CD Series 1000mm Centrifugal Disk Finishing Machine with Manual Discharge is the ideal economic solution for small batch processing of smaller parts. With a capacity of 50L, motor power of 1.5 kW, and a speed range of 50 to 180 rpm, this machine offers efficient and fast processing. Its high energy disc finishing technology ensures up to 10 times faster processing than traditional vibratory finishing machines, making it perfect for aggressive deburring to luster polishing. The compact design, easy handling, process timer setting, and continuous speed adjustment enhance the overall finishing process. This machine is suitable for stampings, castings, machined parts, coins, Zamak belt buckles, plastic eyeglass frames, and more.
Product Specifications
Applications
Stampings, castings or machined parts finishingParts with size around 150 mm or smallerParts with thickness 1 mm and aboveCoin blank polishingZamak belt buckle polishingPlastic eyeglass frame polishing
Dimensions Height
1120 mm
Dimensions Length
1000 mm
Dimensions Width
660 mm
Features
Compact design and easy to handleProcess timer settingContinuous speed adjustmentOptional processing barrel unloading and dischargeOptional forward and backward movementVariable speed converterOptional noise coverOptional dosing pump
Specifications Capacity
50 L
Specifications Chamber Diameter
460 mm
Specifications Motor Power
1.5 kW
Specifications Polyurethane Pu Thickness
22 mm
Specifications Speed
50 to 180 rpm
Specifications Weight
300 kg
