Inovatec CD Series 1390mm Centrifugal Disk Finishing Machine
Inovatec CD Series 1390mm Centrifugal Disk Finishing Machine
SKU:MAS-d7555b
Achieve efficient small batch processing with the Inovatec CD Series 1390mm Centrifugal Disk Finishing Machine. Fast, precise, and versatile for various applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Inovatec CD Series 1390mm Centrifugal Disk Finishing Machine
$5,999.99
Quantity: 1
Claim Your Seller Account
Inovatec CD Series 1390mm Centrifugal Disk Finishing Machine
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

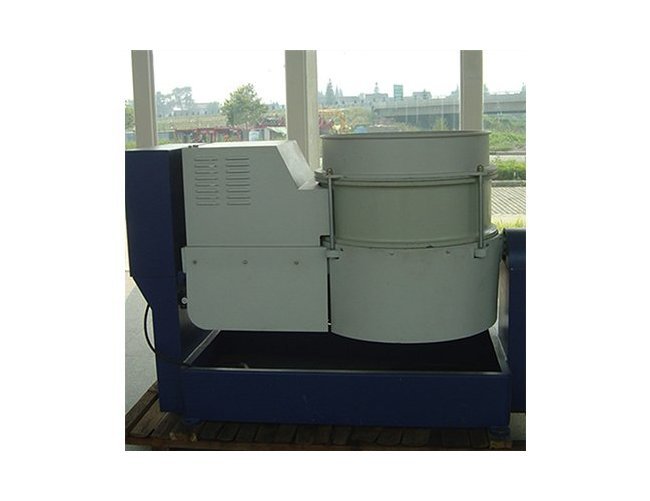

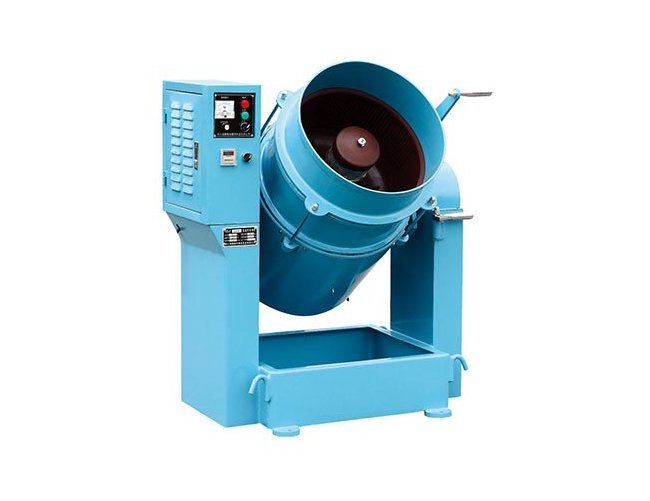

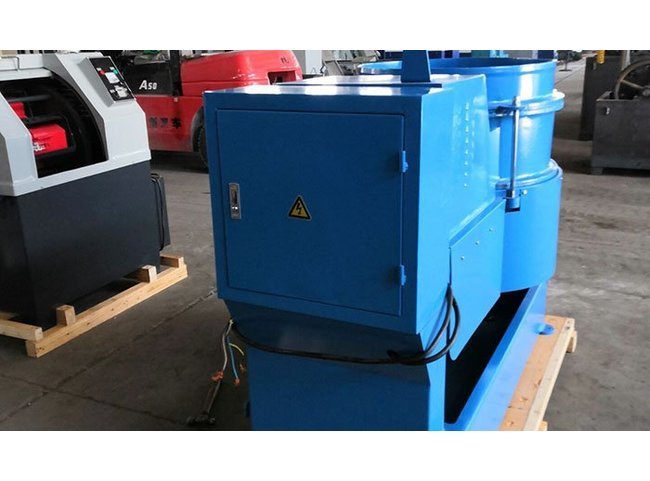

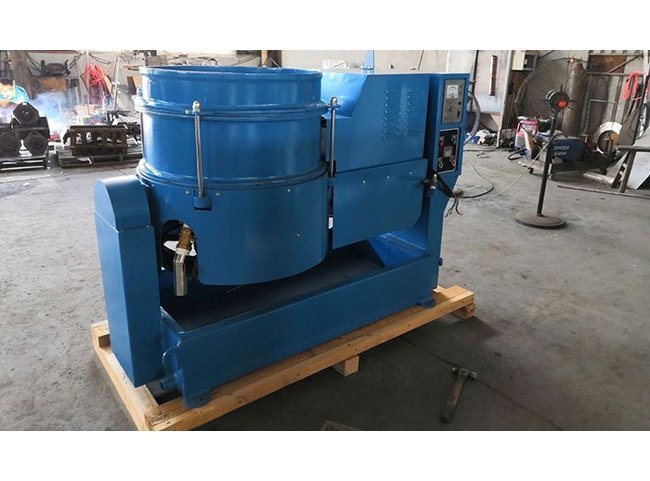

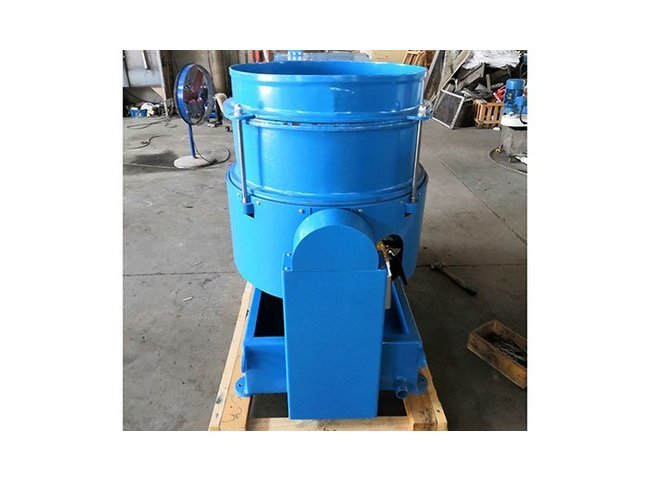

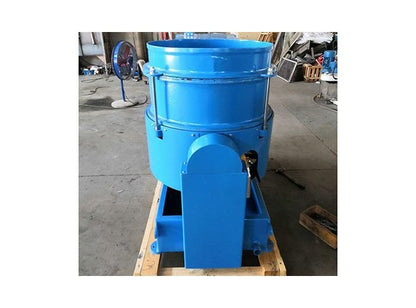

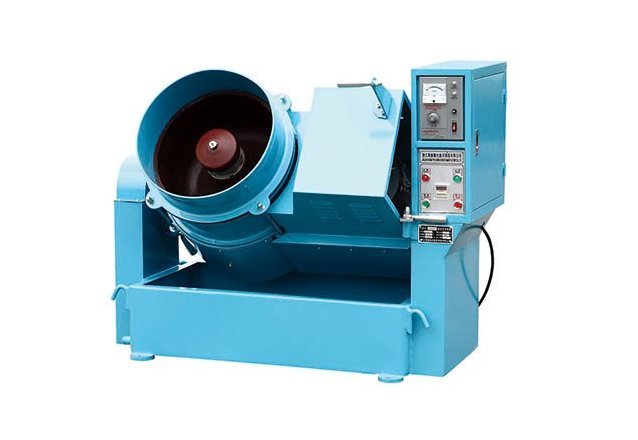

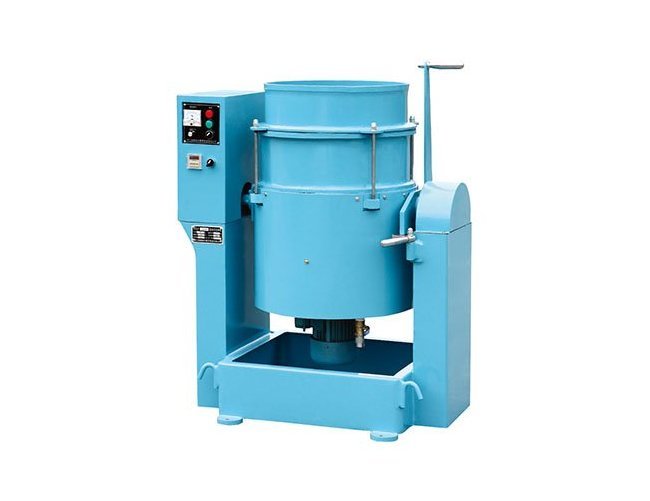

The Inovatec CD Series 1390mm Centrifugal Disk Finishing Machine is a cost-effective solution designed for small batch processing. With manual discharge capability, this centrifugal disk finisher offers fast and efficient processing, up to 10 times quicker than traditional vibratory machines. Featuring a high automation level, adjustable spinner speed (50-180 RPM), and various optional add-ons, this machine excels in tasks ranging from aggressive deburring to luster polishing. Ideal for stampings, castings, machined parts, and more, it delivers exceptional results with precision and speed.
Product Specifications
Applications
Stampings, castings or machined parts finishingParts with size around 150 mm or smallerParts with thickness 1 mm and aboveCoin blank polishingZamak belt buckle polishingPlastic eyeglass frame polishing
Dimensions Height
1240 mm
Dimensions Length
1390 mm
Dimensions Width
700 mm
Features
Compact design and easy to handleProcess timer settingContinuous speed adjustmentOptional processing barrel unloading and dischargeOptional forward and backward movementVariable speed converterOptional noise coverOptional dosing pump
Specifications Capacity
50 L
Specifications Chamber Diameter
460 mm
Specifications Motor Power
1.5 kW
Specifications Polyurethane Pu Thickness
22 mm
Specifications Speed
50 to 180 rpm
Specifications Weight
400 kg
