Inovatec CF Series 50L Centrifugal Disc Polishing Machine for Jewelry
Inovatec CF Series 50L Centrifugal Disc Polishing Machine for Jewelry
SKU:MAS-692f9e
Efficiently polish small and thin jewelry components with the Inovatec CF Series 50L Centrifugal Disc Polishing Machine for quick and perfect finishes.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Inovatec CF Series 50L Centrifugal Disc Polishing Machine for Jewelry
$7,499.99
Quantity: 1
Claim Your Seller Account
Inovatec CF Series 50L Centrifugal Disc Polishing Machine for Jewelry
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

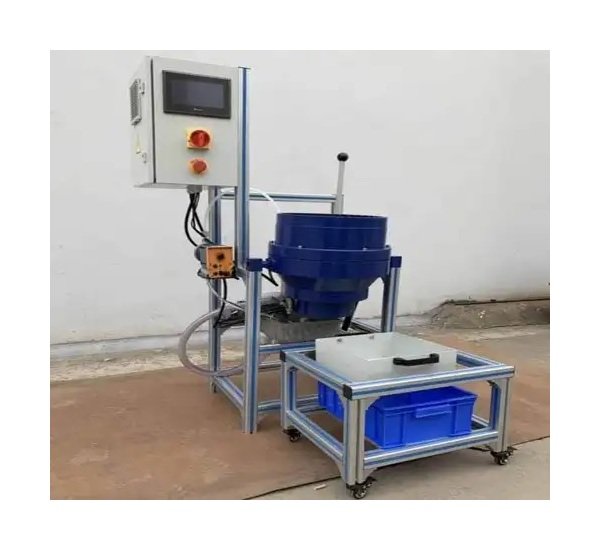

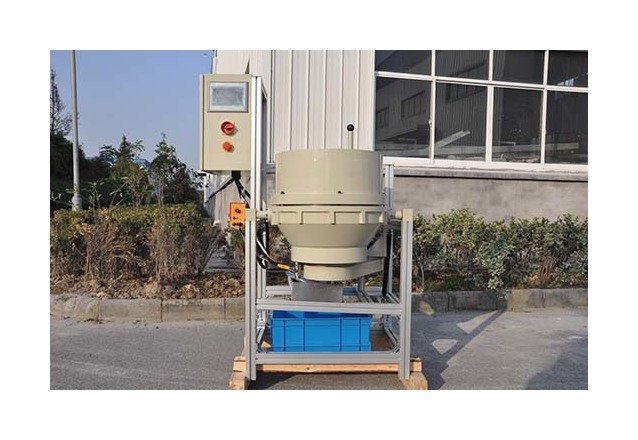

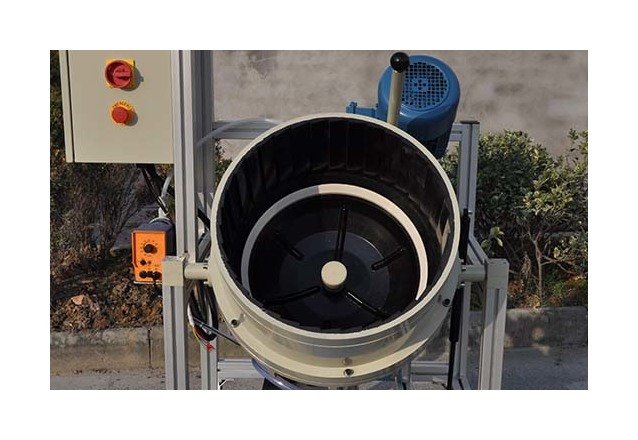

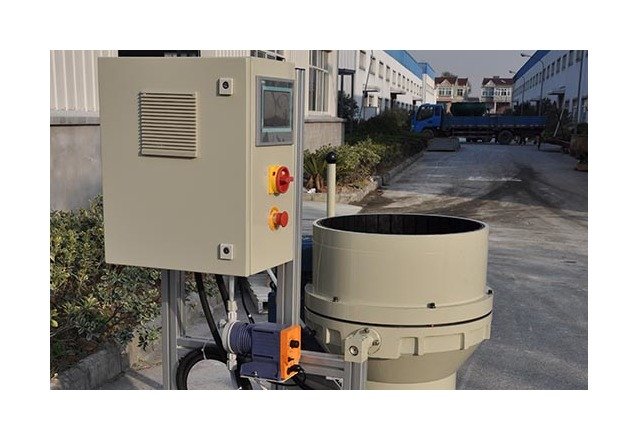

The Inovatec CF Series 50L Centrifugal Disc Polishing Machine is a high-energy mass finishing solution designed for deburring and polishing small and thin jewelry components. With a chamber diameter of 485mm and a 50L capacity, this machine is equipped with advanced features such as hot-poured PU casting, Siemens PLC touchscreen, Nord motor from Germany, and adjustable speed control. It is perfect for polishing watch components, jewelry parts, electric components, 3D printed parts post-processing, and amber polishing. Inovatec's unique design ensures efficient processing without parts getting stuck or hanging, reducing material handling and manual involvement in metal finishing processes.
Product Specifications
Additional Information
Various parts such as stampings, machined parts, casting parts, jeweler etc. are finished in this machine. CF50 series disc tumbling machines adopt a unique design that we develop and fine-tune for many years. So even very thin punched parts will not be stuck in the gap or hang on the wall. This user-friendly feature made it so popular among our customers.
Applications
Watch components PolishingJewelry parts PolishingElectric components3D Printed parts post-processingAmber polishing
Dimensions Height
2300 mm
Dimensions Length
1457 mm
Dimensions Width
2000 mm
Features

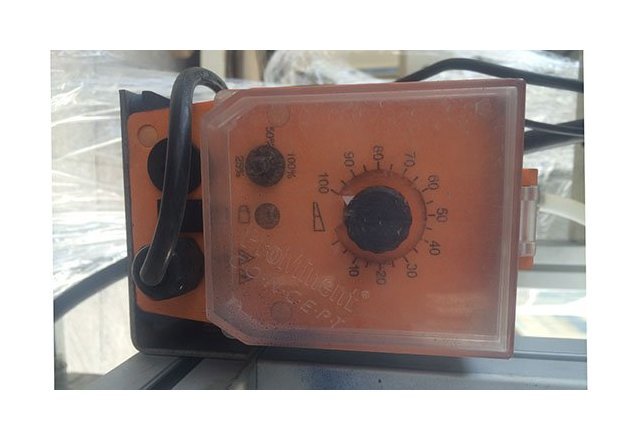

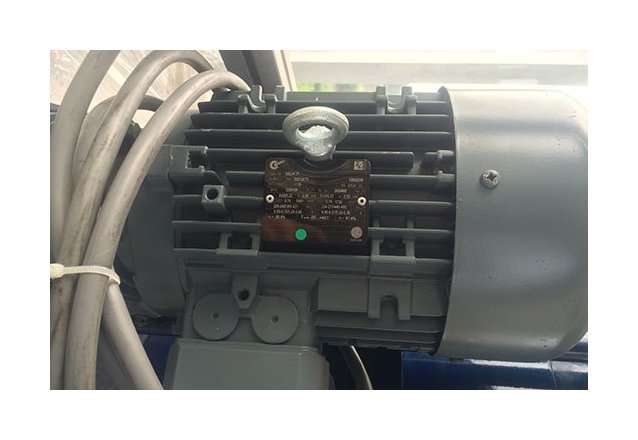

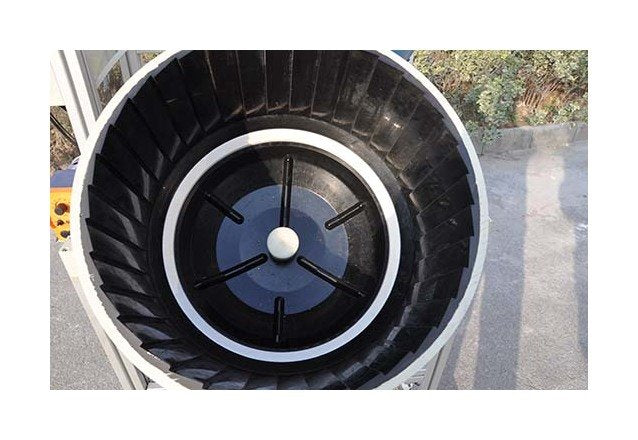

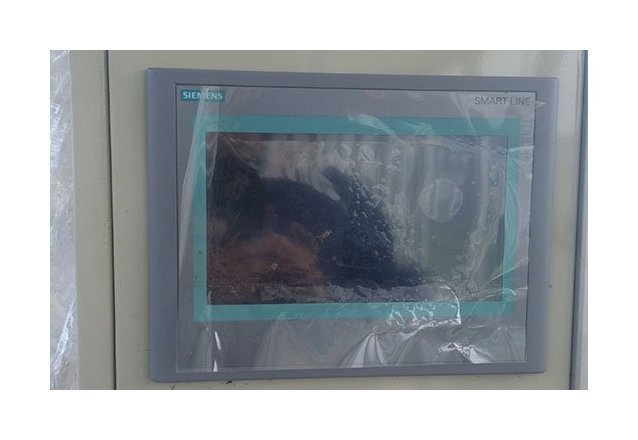

Processing Drum hot poured PU castingSiemens PLC touchscreenNord motor from GermanZero gap designAdjustable speed controlDosing pump from ProminentAluminum frame profile
Specifications Capacity
50 L
Specifications Chamber Diameter
485 mm
Specifications Motor Power
2.2 kW | 3.0 kW
Specifications Weight
550 kg
