Inovatec Longitudinal Vibratory Mass Finishing Machine
Inovatec Longitudinal Vibratory Mass Finishing Machine
SKU:MAS-a41abd
Efficient high-volume mass finishing with adjustable cycle times. Ideal for die casting, steel parts finishing, and automatic polishing.
Regular price
$39,999.00
Regular price
Sale price
$39,999.00
Unit price
per
Initiate Order
Inovatec Longitudinal Vibratory Mass Finishing Machine
$39,999.00
Quantity: 1
Claim Your Seller Account
Inovatec Longitudinal Vibratory Mass Finishing Machine
$39,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inovatec Longitudinal Vibratory Mass Finishing Machine is designed for high-volume parts processing with adjustable cycle times for efficient production. Features include a compound dosing system, digital timer control, and variable vibration force. It facilitates continuous parts flow and is ideal for aluminum and magnesium die casting, steel parts matte finishing, and automatic polishing. With a focus on labor cost savings and streamlined production, this machine ensures optimal performance and quality results.
Product Specifications
Additional Information

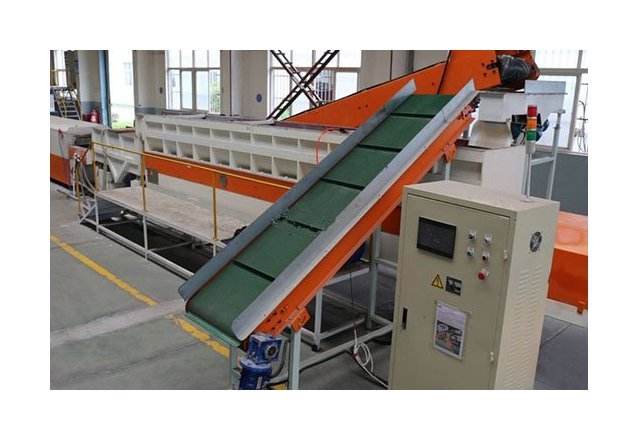

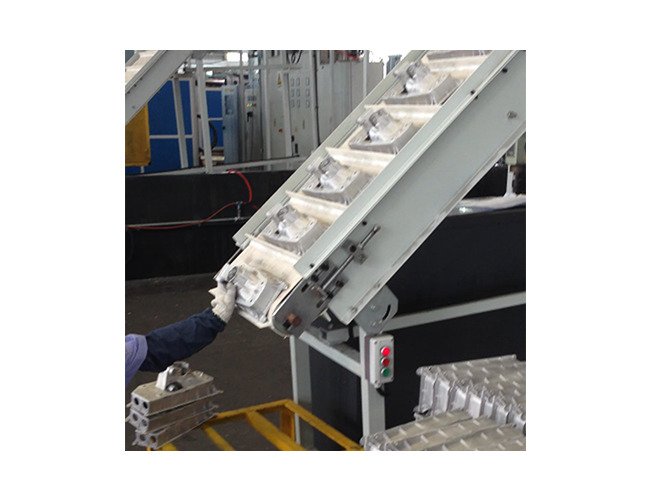

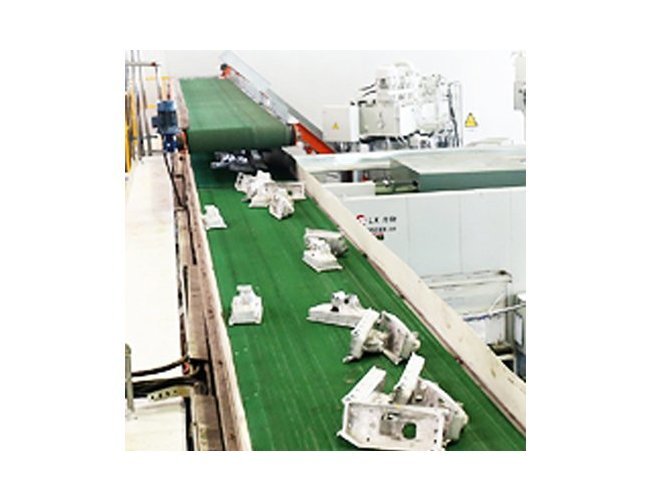

The most important benefit of the system is labor cost saving. Only one operator is enough to run the machine. The operator can load parts to the conveyor belt at one end and then collect parts on the other end.This system is ideal for the facility that is looking to set up in-line production for a continuous flow of parts. Allowing the operator on one end of the finishing equipment to drop parts on a conveyor then receive parts on a constant basis on the other end.
Applications
Aluminum die casting parts finishingMagnesium die casting partsSteel parts matte finishingStone Tumbling FinishingSpoon Automatic Polishing
Channel Dimensions Channel Height
600 mm
Channel Dimensions Channel Length
6500 mm
Channel Dimensions Channel Width
450 mm
Dimensions Height
2700 mm
Dimensions Length
9500 mm
Dimensions Width
4200 mm
Features

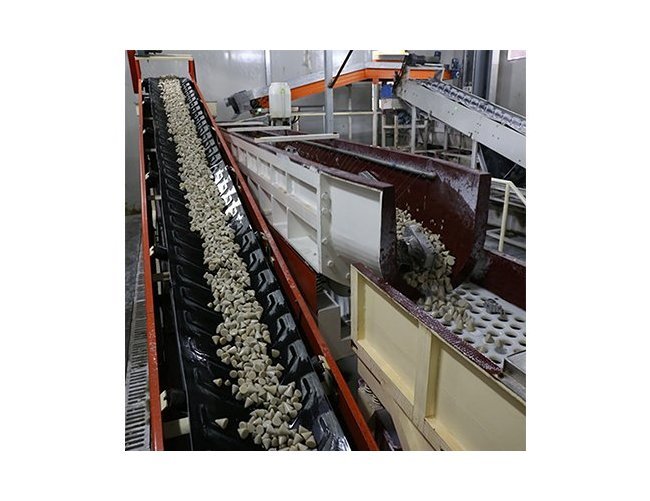

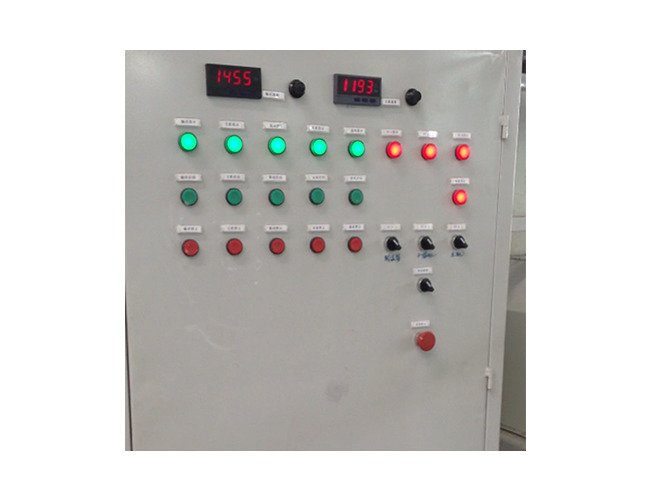

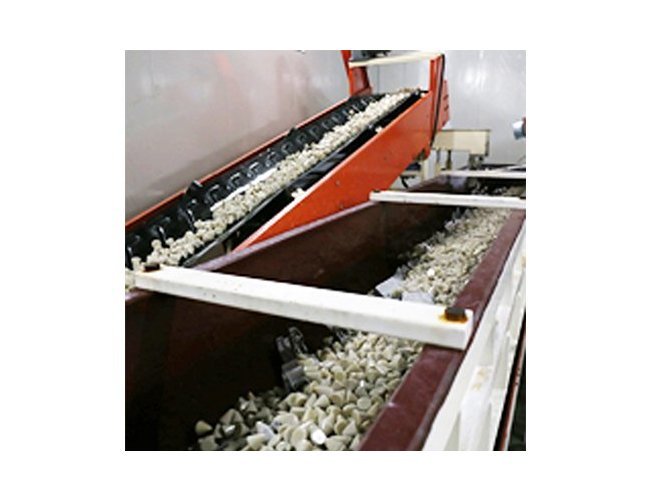

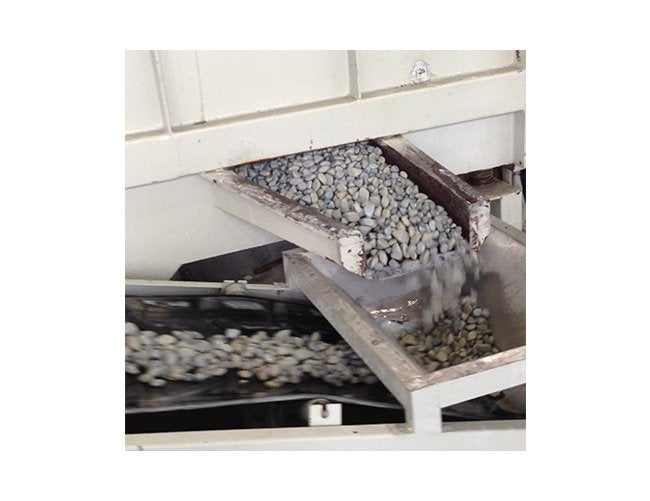

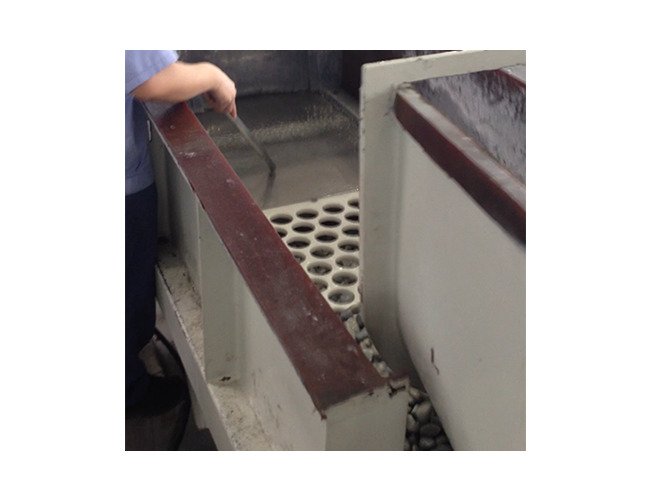

Compound dosing systemDigital timer controlAdjustable vibration forceMedia dischargeAir cushionsVariable frequency driveMedia and parts separation deckMedia feedback conveyorPLC controlSpray rinsing deviceAutomatic grease lubrication
Specifications Capacity
1460 L
Specifications Motor Power
22 kW
Specifications Speed
1470 rpm
Specifications Weight
6300 kg
Specifications Working Capacity
900 L
