Inovatec Magnetic Separator for Mass Finishing
Inovatec Magnetic Separator for Mass Finishing
SKU:MAS-7a663c
Enhance your finishing process with the Inovatec Magnetic Separator - ideal for efficient separation of lightweight parts and ferrous materials.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Inovatec Magnetic Separator for Mass Finishing
$2,499.99
Quantity: 1
Claim Your Seller Account
Inovatec Magnetic Separator for Mass Finishing
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

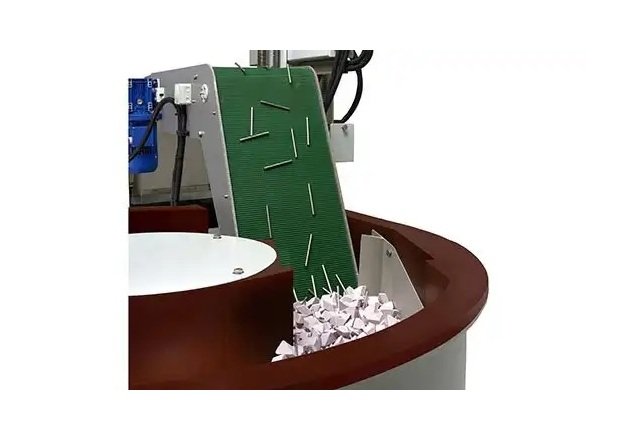

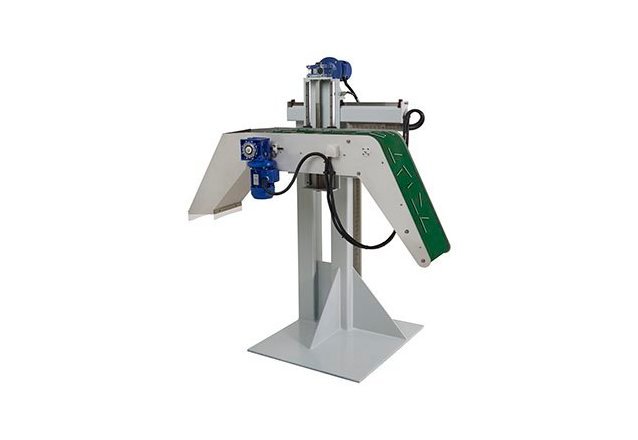

The Inovatec Magnetic Separator is a crucial accessory for bowl vibratory finishing machines, specifically engineered to collect ferrous parts that are magnetically separable, ideal for small and lightweight components. With precise electric control, continuous separation is effortless. Featuring a built-in demagnetization zone on the belt's backside, ensuring all iron parts undergo proper demagnetization. This separator offers variable belt speeds, 2-axis adjustment for enhanced efficiency, a demagnetization device, and customizable magnetic power control, making it a versatile and high-performing solution for separating lightweight parts from media while collecting ferrous materials efficiently.
Product Specifications
Applications
Lightweight parts separation from mediaWell suited for parts that similar size with mediaFerrous parts and other material that can be collected by magnets
Features
Variable belt speeds control - You can maximize the productivity of the machine using its belt speed control.2-axis adjustment - It means you can adjust the direction of the machine with its feature.De-magnetization device - You can remove the magnetic properties of the materials that you want.Magnetic power control - You’ll have the ability to manipulate the magnetic power control of the machine however you want.
Overall Dimensions Overall Height
1600 mm
Overall Dimensions Overall Length
1200 mm
Overall Dimensions Overall Width
920 mm
Specifications Demagnetize Device
TC-2AC220V
Specifications Electric Roller Model
YD 0.55-0.5-130X430
Specifications Life Electric Machine Power
0.55 kW
Specifications Suction Lift Frame Distance
450 mm
Specifications Transmission Speed Of Workpieces
0.5 m/s
Specifications Weight
280 kg
