Inovatec SK Series 1000mm Centrifugal Dryer
Inovatec SK Series 1000mm Centrifugal Dryer
SKU:DRY-bef89c
Efficient, damage-free drying with high centrifugal force and safety features. Stainless steel, low noise, quick drying for industrial use.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Inovatec SK Series 1000mm Centrifugal Dryer
$2,899.99
Quantity: 1
Claim Your Seller Account
Inovatec SK Series 1000mm Centrifugal Dryer
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

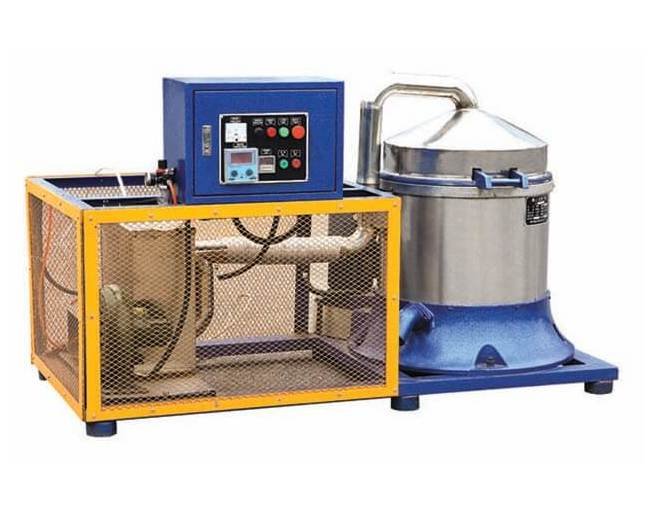

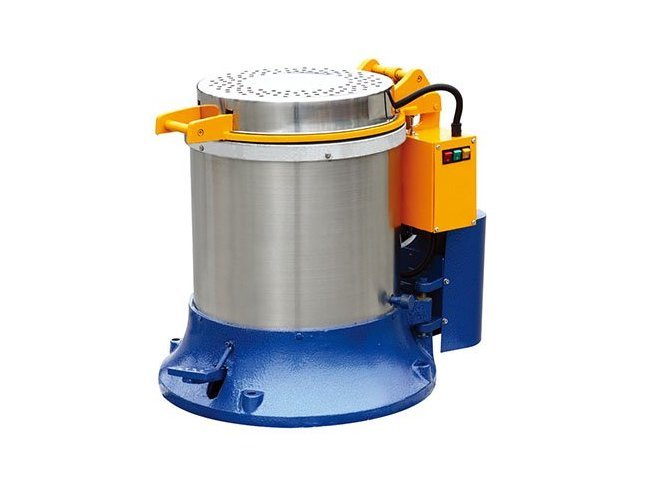

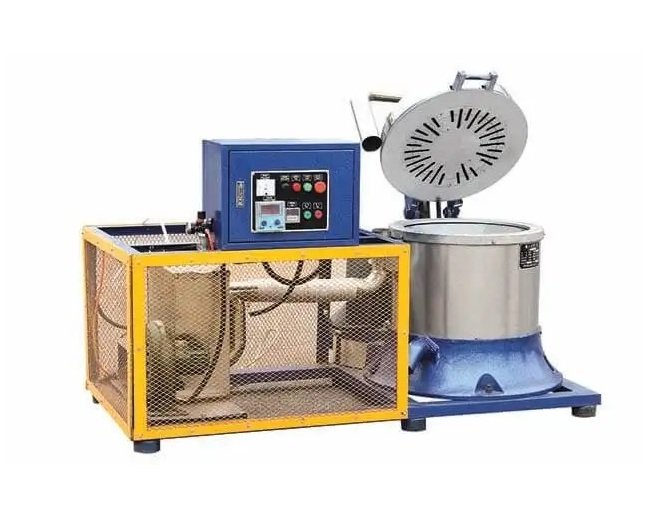

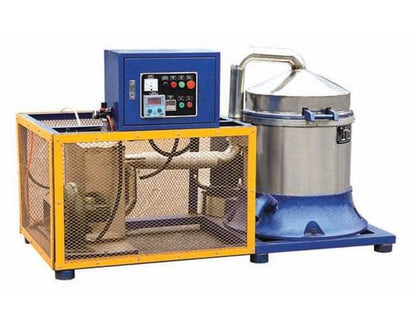

The Inovatec SK Series 1000mm Centrifugal Dryer is designed for efficient and damage-free drying of workpieces. With a high centrifugal force and safety feature that prevents accidents, this dryer offers optimal performance. It features a stainless steel surface, low noise operation, and process timer control. The centrifugal drying process, combined with hot air circulation, ensures quick and thorough drying, making it ideal for industrial applications. Choose from various models to meet your specific requirements.
Product Specifications
Additional Information
A centrifugal dryer is used to remove excess water, oils, rinses or paints from the processed workpieces. You can use the Inovatec SK series centrifugal dryers for the same purpose. However, our unique design prevents workpieces from getting tangled or stained.

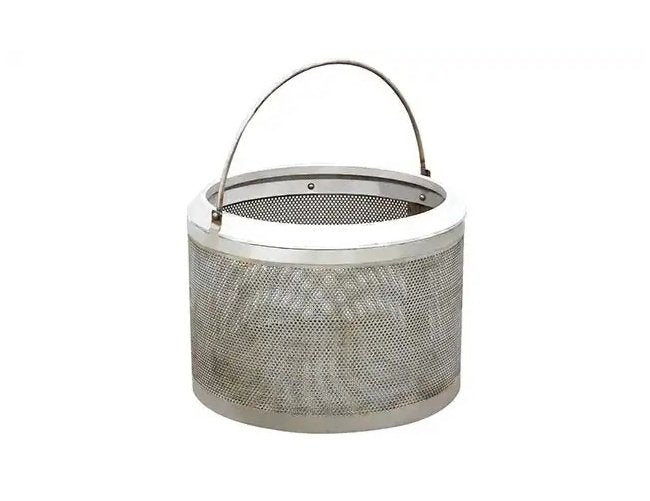

Basket Dimensions Basket Length
480 mm
Basket Dimensions Basket Width
280 mm
Dimensions Height
860 mm
Dimensions Length
1000 mm
Dimensions Width
800 mm
Features
Centrifugal drying speeds up the conventional drying process in two ways. First, the spinning action of centrifugal force throws off excess liquids from the surface of the workpieces.Next, the heating element generates hot air, which blows around in the dryer. The hot air dries off the parts thoroughly, while a turbine fan mounted on the side of the machine sucks out the hot air, leaving behind only the dried workpieces.This intense process guarantees quick drying. Usually, operators can get completely moisture-free and spotless mechanical parts in just five minutes. You can choose from ten different Inovatec centrifugal dryer models, depending on your requirements.
Features And Applications
Low NoiseProcess timer controlStainless steel surface and basket2 mm basket holeEasy installation and small footprintOptimum performanceLow Power Consumption
Optional Settings
Heater fan availableSpeed controlHot blasting air
Specifications Basket Volume
0.075 m³
Specifications Heating Power
3.0 kW
Specifications Motor Power
1.50 kW
Specifications Motor Speed
1430 rpm
Specifications Rotation Speed
300 rpm
Specifications Weight
242 kg
Specifications Working Capacity
75kg or 1/3 (Height of a Basket)
Specifications Working Temperature
50 to 80 ºC
