Inovatec SK Series 780mm Centrifugal Dryer
Inovatec SK Series 780mm Centrifugal Dryer
SKU:DRY-b67711
Efficient drying with safety features, low noise, stainless steel build. Ideal for quick and reliable industrial drying processes.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Inovatec SK Series 780mm Centrifugal Dryer
$1,999.99
Quantity: 1
Claim Your Seller Account
Inovatec SK Series 780mm Centrifugal Dryer
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

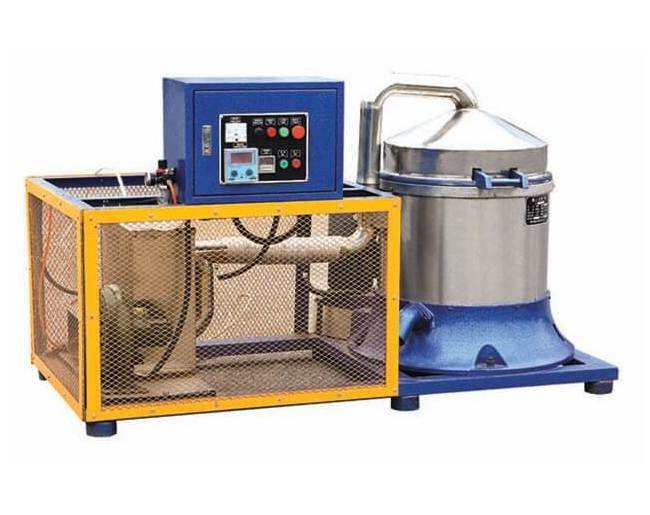

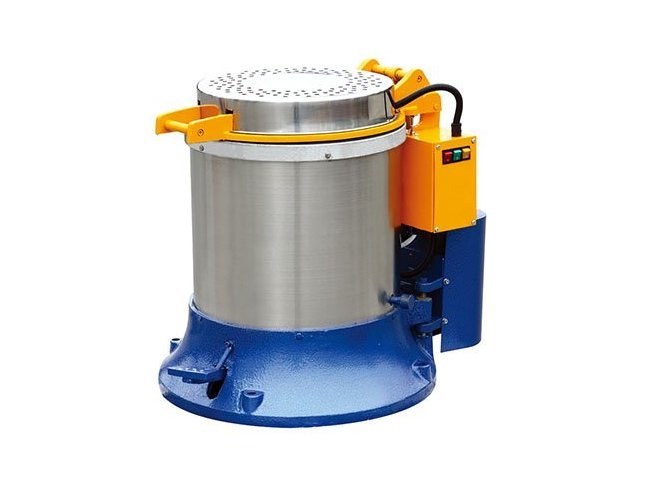

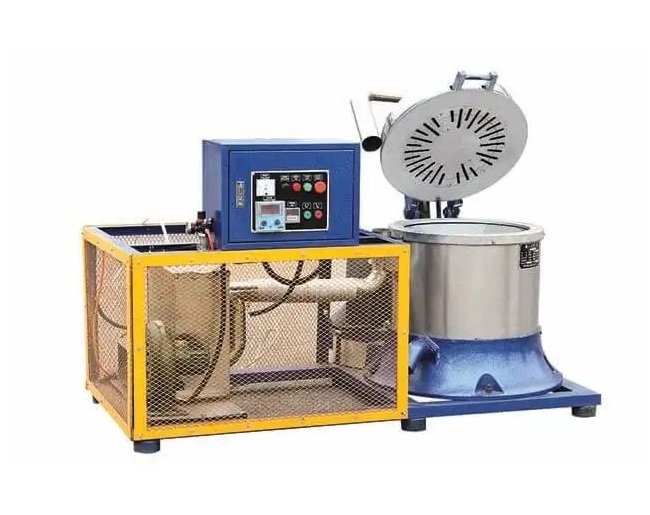

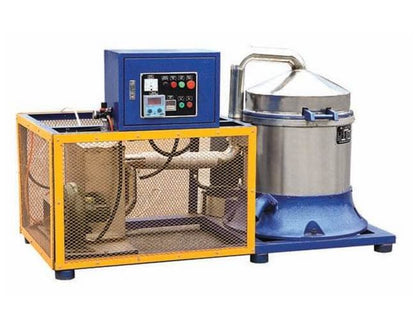

The Inovatec SK Series 780mm Centrifugal Dryer offers efficient drying capabilities with its high centrifugal force, ensuring quick and thorough drying of workpieces. Equipped with safety features such as an automatic motor stop when the lid is open, it provides a secure drying environment, eliminating the risk of accidents. This centrifugal dryer boasts low noise operation, process timer control, stainless steel build, and low power consumption, making it an ideal choice for industrial applications requiring fast and reliable drying processes. With a basket volume of 0.035 m³ and a working capacity of 35kg, this dryer delivers optimum performance with easy installation and minimal footprint.
Product Specifications
Additional Information
A centrifugal dryer is used to remove excess water, oils, rinses or paints from the processed workpieces. You can use the Inovatec SK series centrifugal dryers for the same purpose. However, our unique design prevents workpieces from getting tangled or stained.

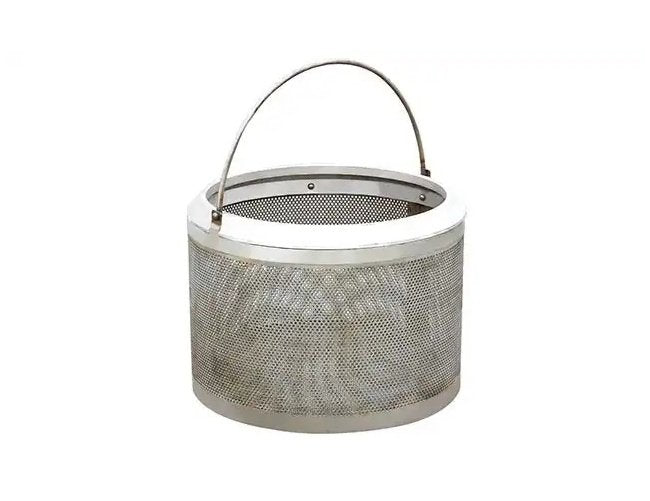

Basket Dimensions Basket Length
380 mm
Basket Dimensions Basket Width
280 mm
Dimensions Height
750 mm
Dimensions Length
780 mm
Dimensions Width
600 mm
Features
Centrifugal drying speeds up the conventional drying process in two ways. First, the spinning action of centrifugal force throws off excess liquids from the surface of the workpieces.Next, the heating element generates hot air, which blows around in the dryer. The hot air dries off the parts thoroughly, while a turbine fan mounted on the side of the machine sucks out the hot air, leaving behind only the dried workpieces.This intense process guarantees quick drying. Usually, operators can get completely moisture-free and spotless mechanical parts in just five minutes. You can choose from ten different Inovatec centrifugal dryer models, depending on your requirements.
Features And Applications
Low NoiseProcess timer controlStainless steel surface and basket2 mm basket holeEasy installation and small footprintOptimum performanceLow Power Consumption
Optional Settings
Heater fan availableSpeed controlHot blasting air
Specifications Basket Volume
0.035 m³
Specifications Heating Power
1.80 kW
Specifications Motor Power
0.75 kW
Specifications Motor Speed
1430 rpm
Specifications Rotation Speed
552 rpm
Specifications Weight
161 kg
Specifications Working Capacity
35kg or 1/3 of Capacity
Specifications Working Temperature
50 to 80 ºC
