Inovatec TVB(A) 750L Tub Vibrator for Mass Finishing
Inovatec TVB(A) 750L Tub Vibrator for Mass Finishing
SKU:MAS-210dea
Efficiently tumble large & heavy parts with Inovatec's TVB(A) 750L Tub Vibrator for high-quality finishes.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Inovatec TVB(A) 750L Tub Vibrator for Mass Finishing
$6,499.99
Quantity: 1
Claim Your Seller Account
Inovatec TVB(A) 750L Tub Vibrator for Mass Finishing
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

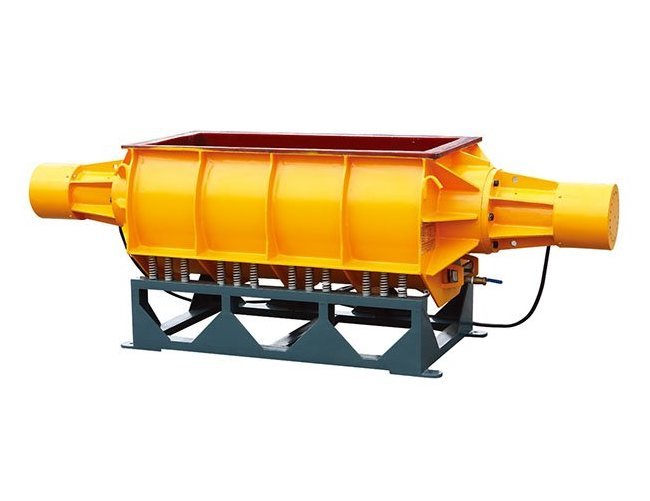

The Inovatec TVB(A) Series 750 Liter Tub Vibrator is a high-performance vibratory trough finishing machine designed for efficiently tumbling large and heavy parts like ceramic coated headers, exhaust pipes, and engine housing. With a curved wall design enhancing tumbling performance and reducing process time, this model is ideal for ball burnishing processes. Constructed with heavy gauge welded steel and featuring a wear-resistant 16mm Polyurethane (PU) lining from Dow Chemicals, this tub vibrator ensures durability and consistent results. The digital process timer, low profile design, and stress-relieved construction make it a reliable choice for mass finishing applications.
Product Specifications
Features And Applications
Digital process timerLow profile designStress relieved and enhanced with blastingWear resistant PU lining from Dow Chemicals
Maximum Overall Dimensions Maximum Overall Height
920 mm
Maximum Overall Dimensions Maximum Overall Length
3354 mm
Maximum Overall Dimensions Maximum Overall Width
880 mm
Optional Settings
Soundproof coverVariable frequency driveCompound dosing pumpEnhanced motorsControl box hang on the wall or standing on the floor
Specifications Chamber Diameter C
670 mm
Specifications Chamber Height B
625 mm
Specifications Chamber Length A
2000 mm
Specifications Feeding Entry Width D
524 mm
Specifications Motor Power
2.2 kW
Specifications Number Of Motors
2
Specifications Polyurethane Pu Lining Thickness
16 mm
Specifications Total Volume
750 L
Specifications Type
Tub
Specifications Weight
1600 kg
