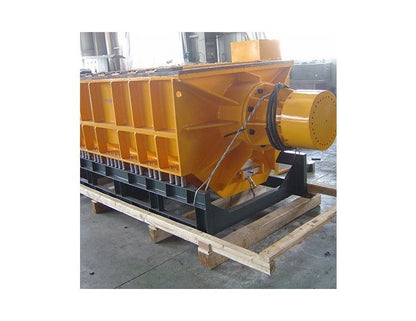

Inovatec TVB(B) 1800L Trough Tub Vibrator

Name: Inovatec TVB(B) 1800L Trough Tub Vibrator
Brand: Inovatec Machinery
SKU: MAS-210d61
Price: 8999.99 USD
Availability: OutOfStock

SKU:MAS-210d61

Achieve superior finishing results with the Inovatec TVB(B) 1800L Trough Tub Vibrator for heavy parts. Ideal for marbles tiles aging.

$8,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

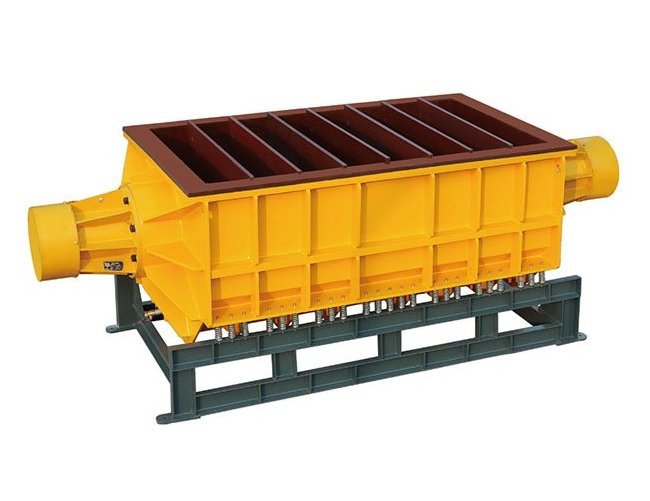

The Inovatec TVB(B) Series 1800 Liter Total Volume Trough Tub Vibrator offers exceptional finishing for heavy and large parts. With a robust design and polyurethane lining, this vibratory finishing machine is ideal for marbles tiles aging and antique finishing applications. Features include digital process timer, low profile design, and stress-relieved construction. Optional settings like a soundproof cover, variable frequency drive, and control box enhance operational flexibility. Built to meet institutional procurement standards, this machine ensures high-quality finishing results and durability.

Product Specifications

Features And Applications

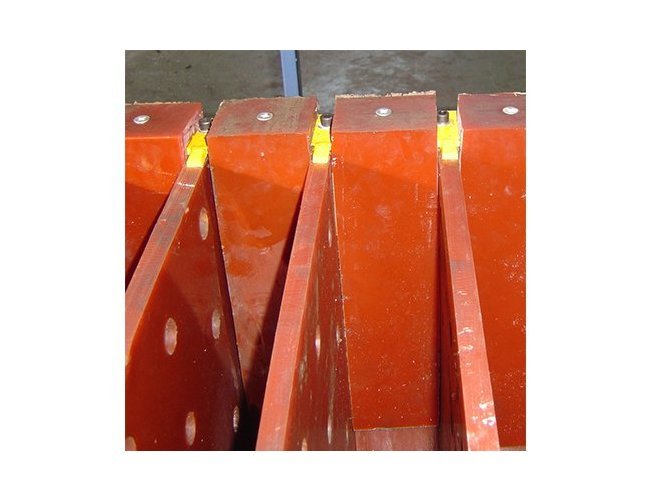

Digital process timerLow profile designProcess chamber dividersStress relieved and enhanced with blastingWear resistant PU lining from Dow Chemicals

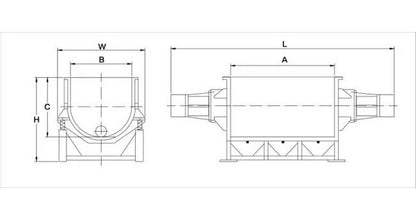

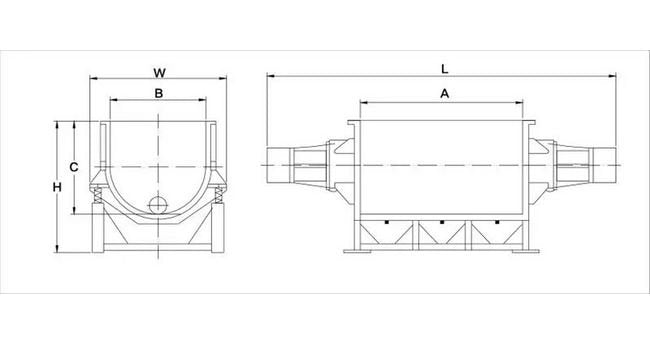

Maximum Overall Dimensions Maximum Overall Height

1256 mm

Maximum Overall Dimensions Maximum Overall Length

3500 mm

Maximum Overall Dimensions Maximum Overall Width

1336 mm

Optional Settings

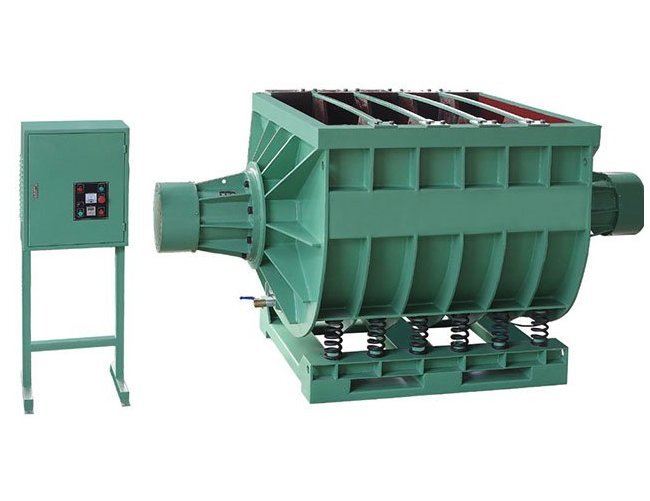

Soundproof coverVariable frequency driveCompound dosing pumpControl box hang on the wall or standing on the floor

Specifications Chamber Diameter C

1120 mm

Specifications Chamber Height B

940 mm

Specifications Chamber Length A

2000 mm

Specifications Motor Power

5.5 kW

Specifications Number Of Motors

Specifications Polyurethane Pu Lining Thickness

25 mm

Specifications Total Volume

1800 L

Specifications Type

Tub

Specifications Weight

2800 kg
